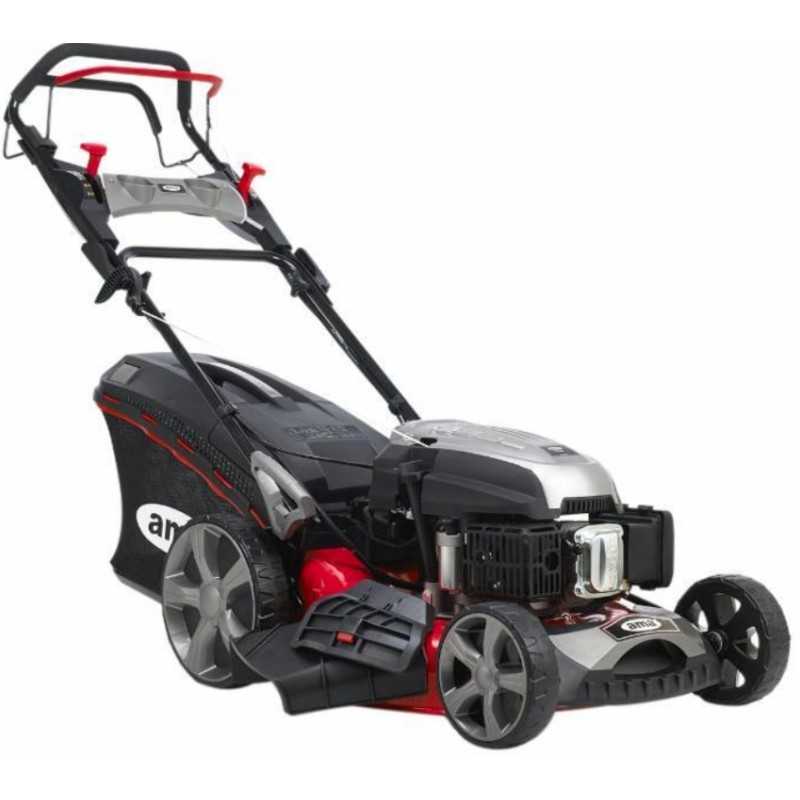

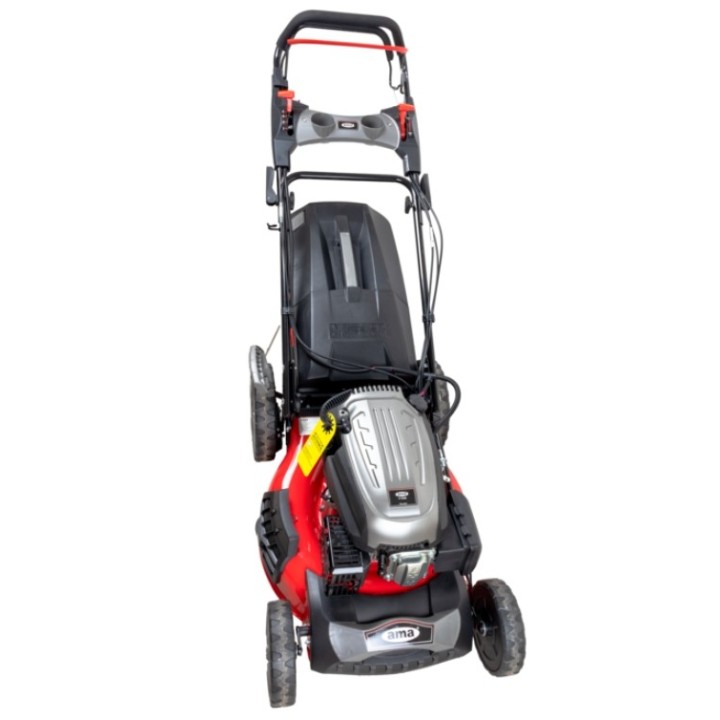

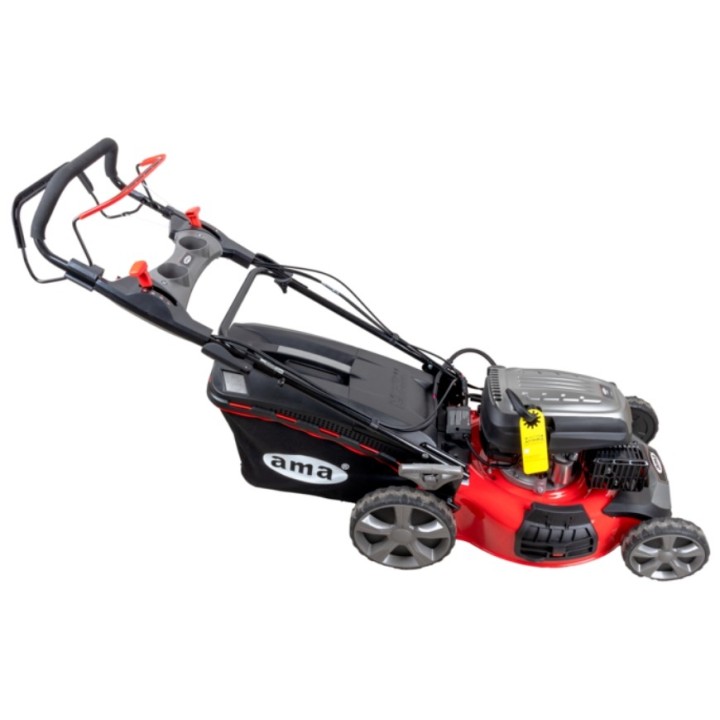

PETROL LAWN MOWER

AMA TRX 510 DL



"TRX" self-propelled lawnmower with variator

speed and electric start,

high wheels, 51cm cutting width. The OHV engine,

equipped with overhead valves, it can count on 173 cc and offers all

the power needed to work in any conditions.

Mulching is an option to leave the grass on the lawn, as well as

side or rear unloading. Machine

imported, compliant with the requirements of the European Community,

controlled and guaranteed by the Italian AMA group.



4 in 1: Basket collection; Rear discharge; Side discharge;

Mulching (mulching kit included).

The engine is supplied without oil.





TECHNICAL DATA

Traction: Traction with variator

Displacement: 173 cc

Cutting width: 51 cm

Basket capacity: 65 L

Start-up: Electric

Electric start from the mains:Sthe

Fuel tank capacity: 1 L

Oil tank capacity: 0.6 L

Fuel:Benzyme

Certifications: 2006/42/EC

Collection basket:Sthe

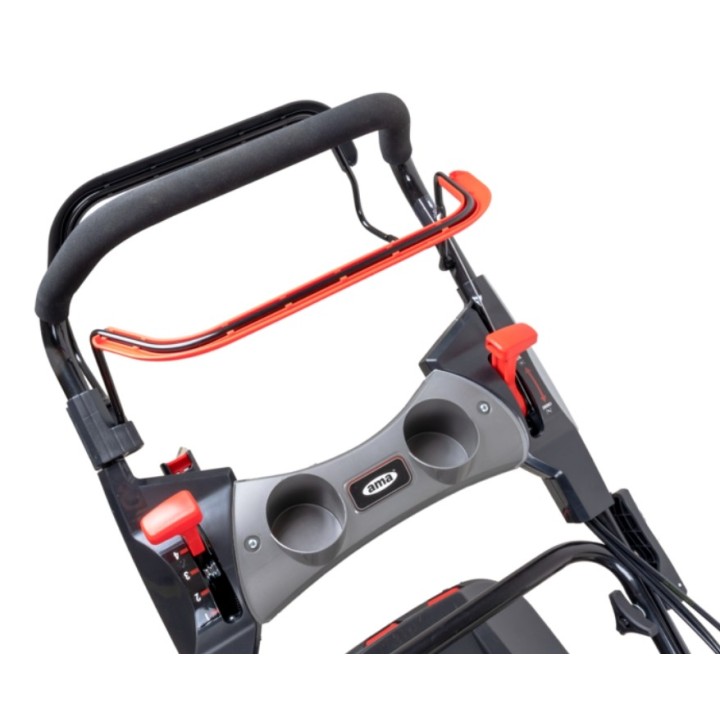

Handlebar controls:Sthe

Security devices: Machine stop when lever is released

Revolutions per minute: 2800 rpm

Handle:TOnon-slip

Adjustable handle:Sthe

Mulching kit: Included

Length: 54.5 cm

Lubrication: SAE 30

Engine brand: Love

Wheel sizes: 200 -280 mm

Engine model: Y173VE OHV

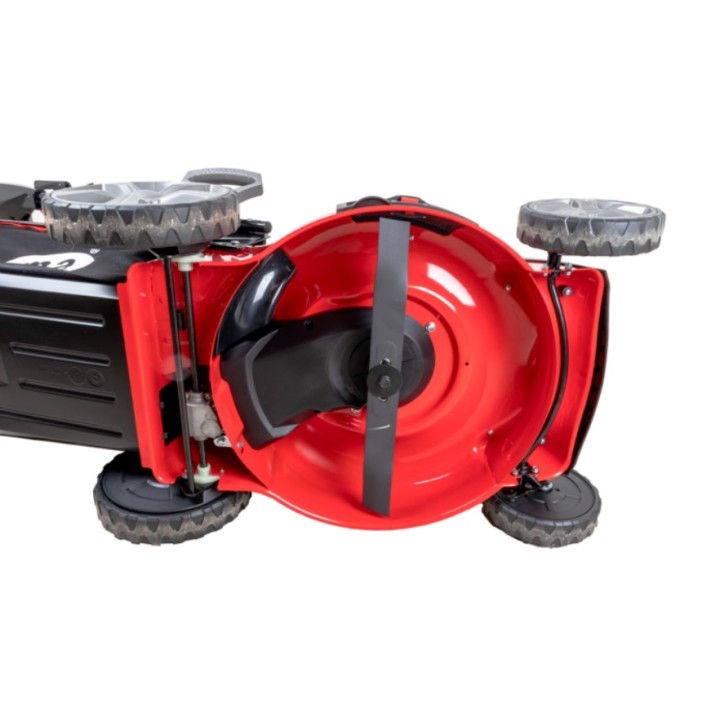

Blade movement:Rotant

Number of gears: 4

Cutting positions: 6

Mechanical power: 4.82 hp

Rated power: 3.6 kW

Quick start primer:Sthe

Washing connection:Sthe

Engine cooling: Air

Cutting height adjustment: 25-75 mm

Standard wheels: Yes

Frame:THEiron

Assisted steering:Sthe

Maximum recommended surface area: 1400 sq m

Power supply type: By explosion

Gearbox type: Mechanical

Blade Type: Standard

Engine type: 4 stroke





CODE:98800
