PETROL LAWN MOWER

AMA TRX 560HL

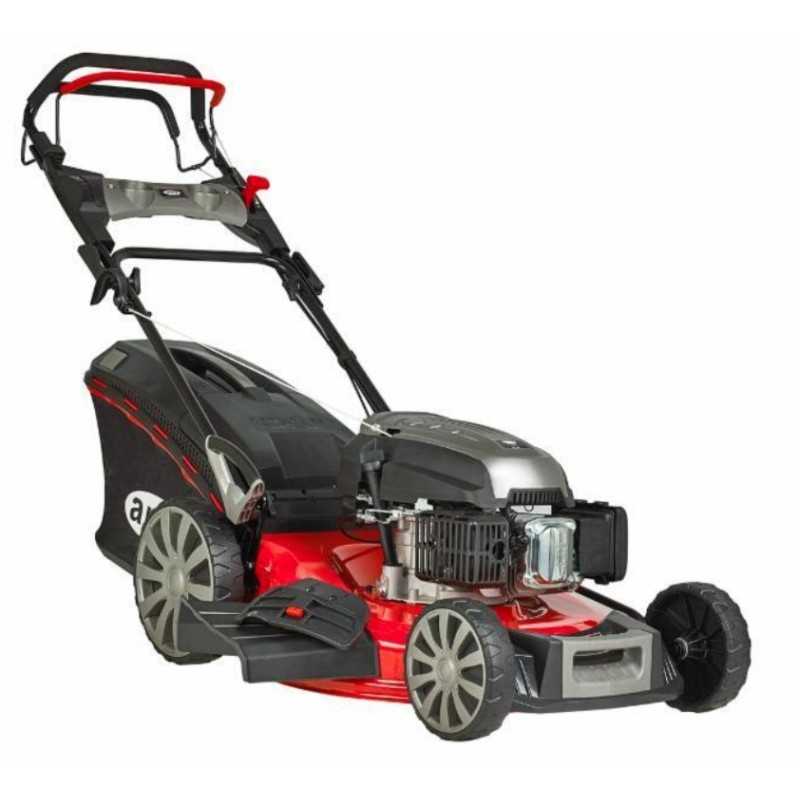

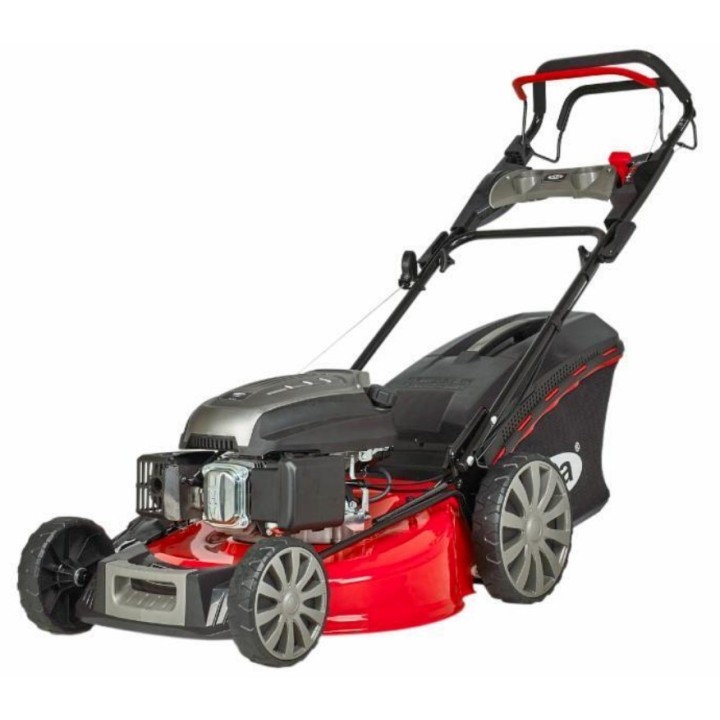

Ama TRX 560HL 4-in-1 Self-Propelled Lawnmower

with 196cc internal combustion engine

cc overhead valves. 56 cm cutting deck with height

Adjustable from 25 to 75 mm. 65 L collection basket.

28cm high rear wheels with ball bearings.

Side exhaust, exhaust

rear, collection and mulching.

TECHNICAL DATA

Traction: Traction

Displacement: 196 cc

Cutting width: 56 cm

Basket capacity: 65 L

Fuel tank capacity: 1 L

Oil tank capacity: 0.6 L

Fuel:Benzyme

Collection basket:Sthe

Security devices: Machine stop when lever is released

Revolutions per minute: 2800 rpm

Handle:ANDergonomics

Adjustable handle:Sthe

Mulching kit: Included

Length: 58 cm

Lubrication: SAE 30

Engine brand: Love

Track wheel material:BABS tread

Wheel sizes: 200-280mm

Engine model: Y196V OHV

Blade movement:Rotant

Cutting positions: 6

Mechanical power: 6.5 hp

Rated power: 4.2 kW

Quick start primer:Sthe

Washing connection:Sthe

Engine cooling: Air

Cutting height adjustment: 25-75 mm

Standard wheels: Yes

Frame:THEiron

Maximum recommended surface area: 1800 sq m

Chassis:TOenameled steel

Power supply type: By explosion

Gearbox type: Mechanical

Blade Type: Standard

Engine type: 4 stroke

Wheel type: On ball bearings

Start-up: Manual

CODE:98996
