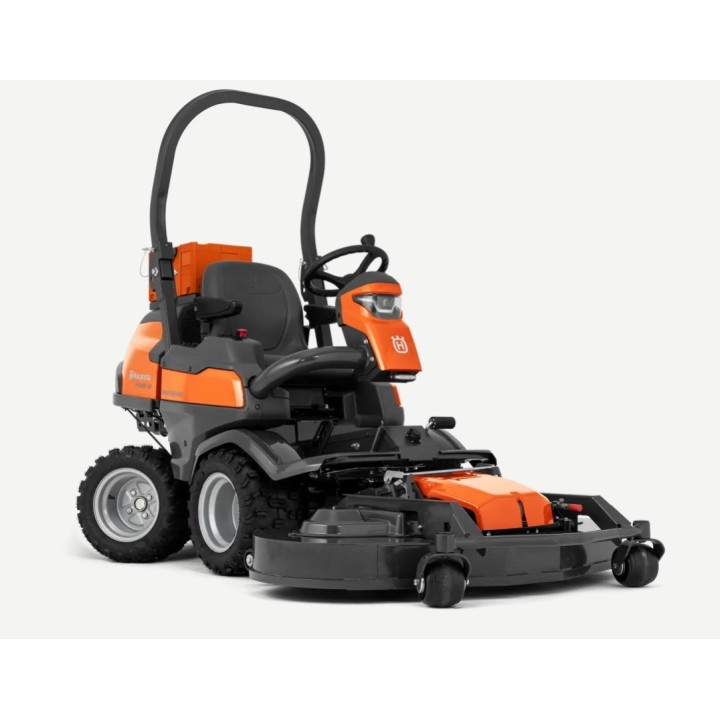

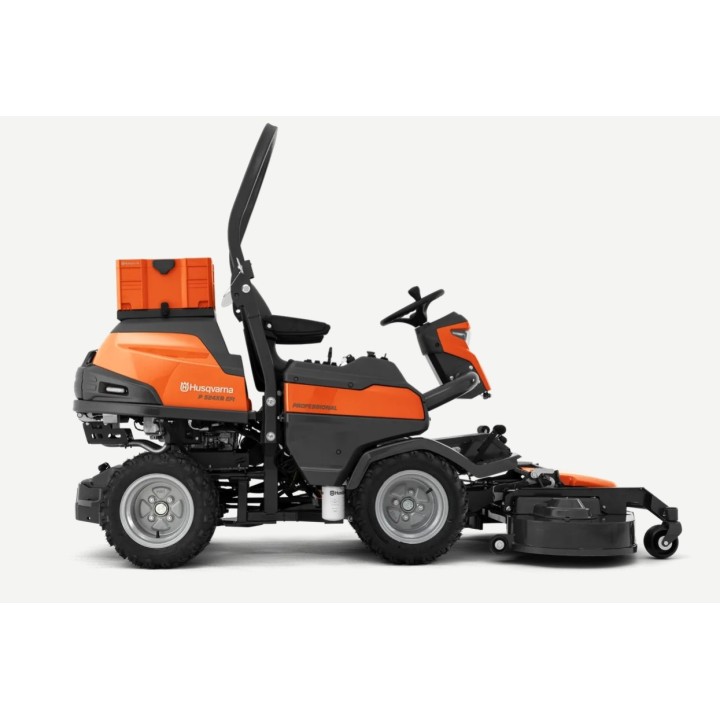

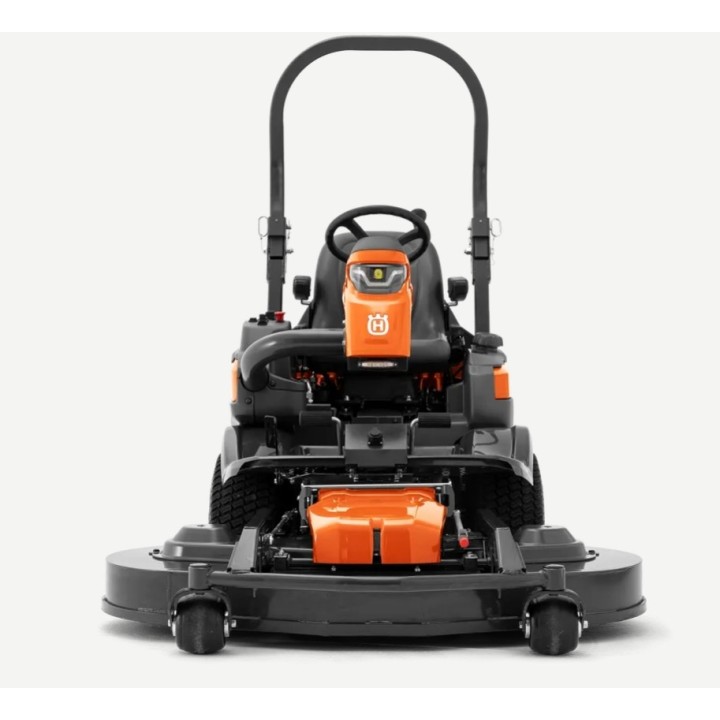

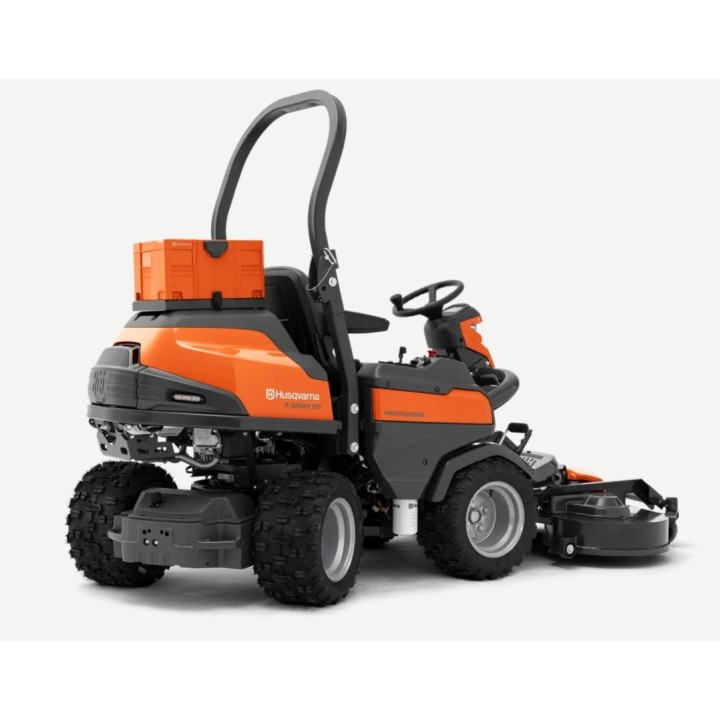

PROFESSIONAL RIDER TRACTOR MOWER

HUSQVARNA P 524XR EFI



Husqvarna P524XR EFI is a petrol lawnmower

with front-mounted operator, designed

for commercial use all year round. Equipped with

all-wheel drive and possibility

management via FlexiDrive, a

smooth transition between operator mode

sitting and control mode

remote on areas not suitable for cutting

with operator on board. Equipped

Kawasaki engine with electronic injection

of fuel for more power and

couple. Like all models of the

500 series, supplied without cutting deck

but adapted for high cutting plates

capacity up to 137 cm. Prepared for

the installation of accessories

requiring electrical control.

The front power socket kit

It is factory installed.



TECHNICAL SPECIFICATIONS

Fuel type: Petrol

Net power at preset rpm: 15.6 kW

Net power at preset rpm: 3,000 rpm

Engine brand: Kawasaki

Engine manufacturer: Kawasaki

Engine Name: FX Series V-Twin

Displacement: 726 cc

Cylinders: 2

Engine cooling: Air

Engine lubrication type: Full pressure with oil filter

Oil filter: Yes

Battery capacity: 24 Ah

Battery type: Lead/Acid

Battery pack weight: 7.2 kg

Battery Manufacturer: Global

Uncut circle: 50 cm

Cutting width, Min: 112 cm

Cutting width, Max: 137 cm

Cutting height, min: 25 mm

Cutting height, max: 100 mm

Blade engagement: Electromagnetic clutch

Tire size, front: 18x11-10

Tire size, rear: 18x11-10

Wheelbase: 100 cm

Ground clearance: 130 mm

Basic machine, length: 206 cm

Basic machine, width: 113 cm

Basic machine, height: 122 cm

Gross towable weight: 200 kg

Weight (excl. cutting unit): 472 kg

PTO (Power Take-Off): Belt Drive

Transmission type: Hydrostatic

Transmission manufacturer, rear: Kanzaki

Drive type: Double pedal operation

Forward speed, max: 13 km/h

Reverse speed, max: 9 km/h

Transmission manufacturer, front: Kanzaki

Transmission model, front: KTM 23LB

Transmission model, rear: KTM 23SB

Seat suspension: Yes

Seat type: Professional

Hour meter: Digital

Seat material: Vinyl

Seat back height: Alt

Folding seat: Yes

Steering wheel type: Professional

Parking brake, type: Disc



CUTTING PLATE

EXCLUDING



CODE:9706017-02 970601702





MN
