PROFESSIONAL TRACTOR LAWN MOWER

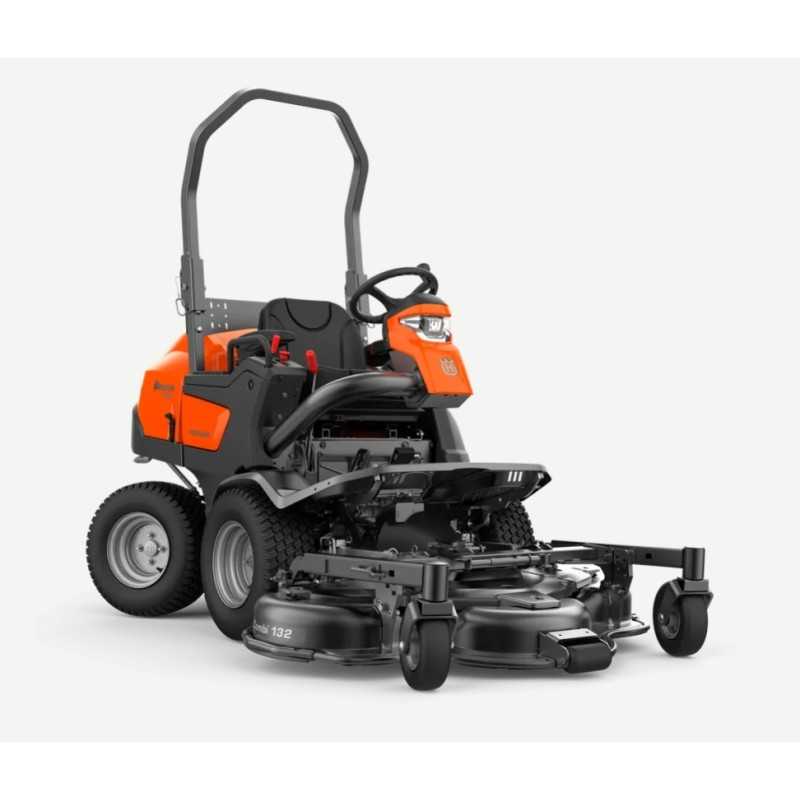

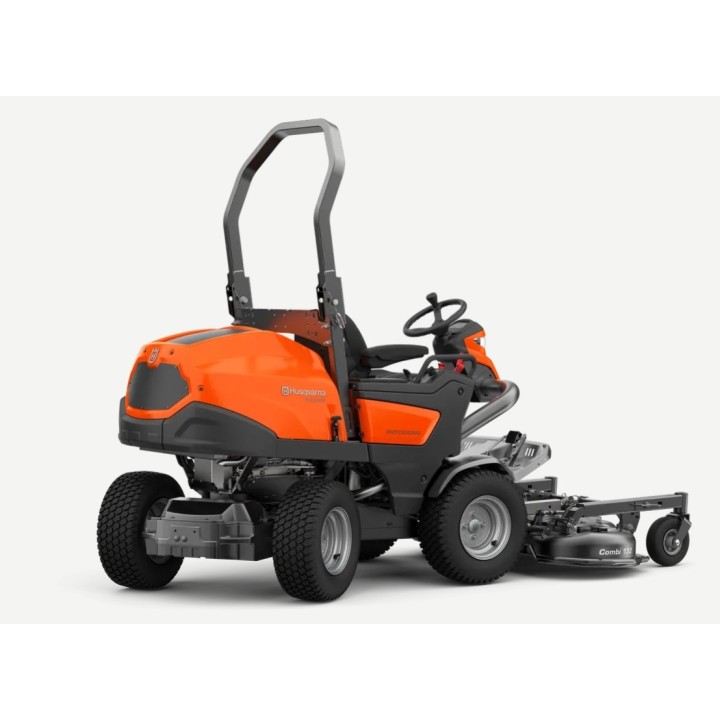

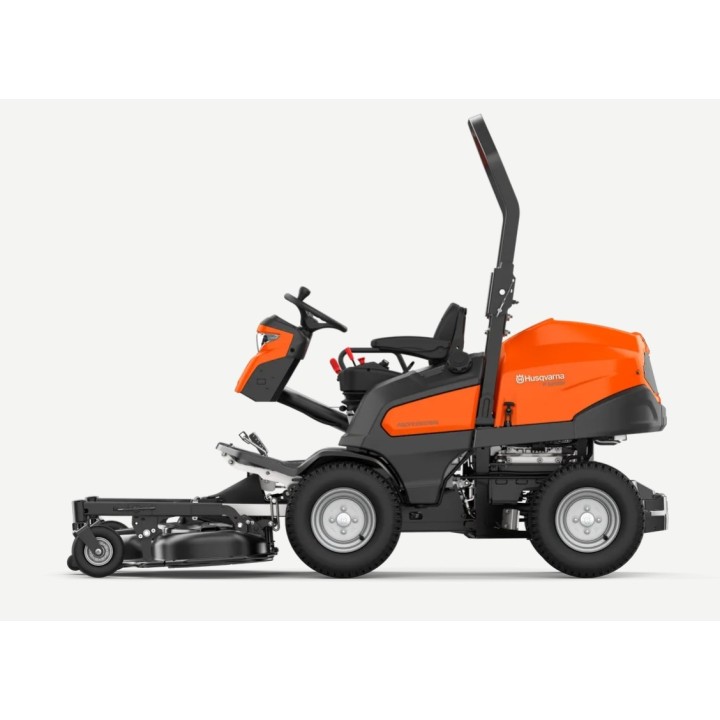

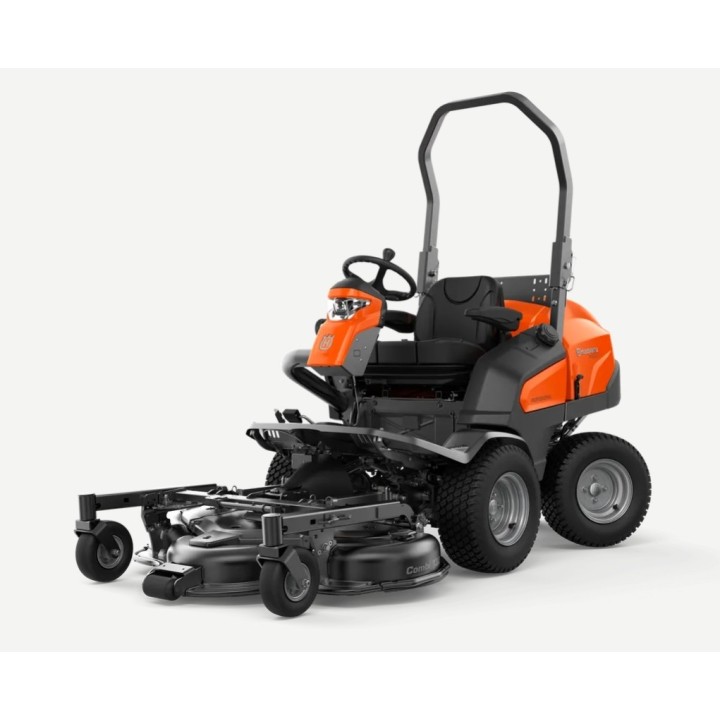

HUSQVARNA P 520DX

Professional diesel Rider lawn tractor

offering maneuverability and productivity

unbeatable in complex and confined environments, as well as in areas of

large size. Commercial broadcast

offers traction and stability on slopes without

compromises. The compact size of the machine

make it suitable for both fixed applications

that furniture for municipalities, contractors, agencies

real estate etc. Thanks to the plate

front-mounted cutting

the operator has a perfect view of the area

of work. This offers cutting capacity

optimised and accessible under bushes, benches etc.

Long-lasting components for a solid

durability and reduced machine downtime. Accessories

as the volmero blade, brush cutter, shredder offer

increased productivity all year round. Husqvarna

P 520DX is delivered without cutting deck

and can be equipped with 132 and 155 cm Combi plates.

TECHNICAL SPECIFICATIONS

Fuel type: Diesel

Net power at preset rpm: 14.5 kW

Net power at preset rpm: 3,000 rpm

Engine brand: Kubota

Engine manufacturer: Kubota

Engine name: D 902

Displacement: 898 cc

Cylinders: 3

Engine cooling: Liquid

Engine lubrication type: Forced pressure

Oil filter: Yes

Battery capacity: 62 Ah

Battery type: Lead/Acid

Battery pack weight: 14 kg

Battery manufacturer: Exide

Uncut circle: 55 cm

Cutting width, Min: 132 cm

Cutting width, Max: 155 cm

Cutting height, min: 30 mm

Cutting height, max: 112 mm:

Blade engagement: Electromagnetic clutch

Tire size, front: 20x8-10

Tire size, rear: 20x8-10

Wheelbase: 106 cm

Ground clearance: 140 mm

Basic machine, length: 207.8 cm

Base machine, width: 113.2 cm

Basic machine, height: 133 cm

Gross towable weight: 350 kg

Weight (excl. cutting unit): 649 kg

PTO (Power Take-Off): Half Shaft

Transmission type: Hydrostatic

Transmission manufacturer, rear: Kanzaki

Drive type: Double pedal operation

Forward speed, max: 17.5 km/h

Reverse speed, max: 13.5 km/h

Transmission manufacturer, front: Kanzaki

Transmission model, front: KTM 23LA

Transmission model, rear: KTM 23SA

Seat suspension: Yes

Seat type: Full suspension, with armrests

Hour meter: Digital

Seat material: Vinyl

Seat back height: High

Folding seat: Yes

Steering wheel type: Professional

Parking brake, type: Disc

CUTTING PLATE

EXCLUDING

CODE:9679852-01 967985201

MN
