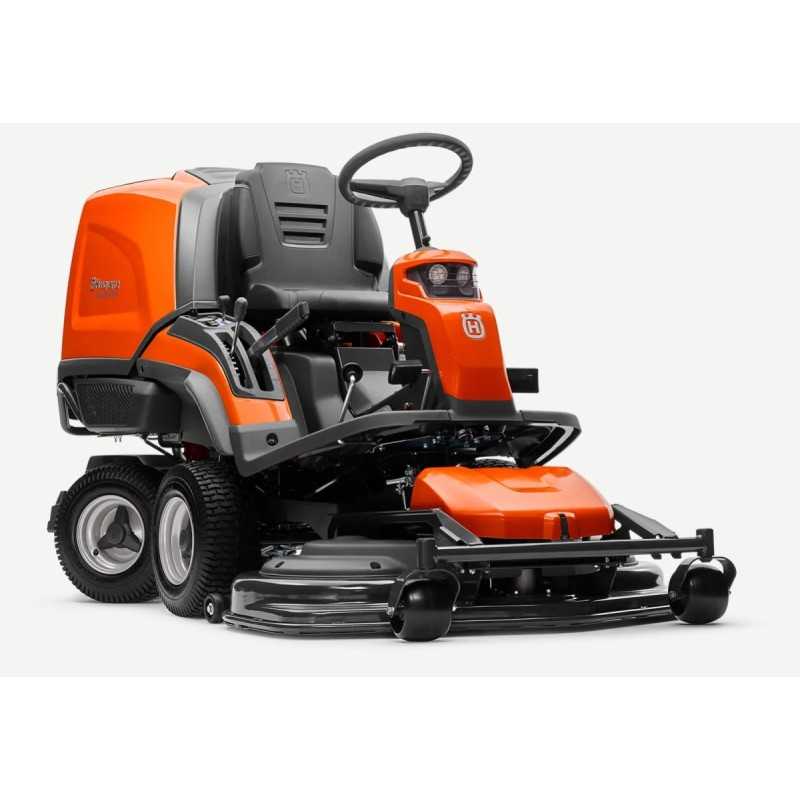

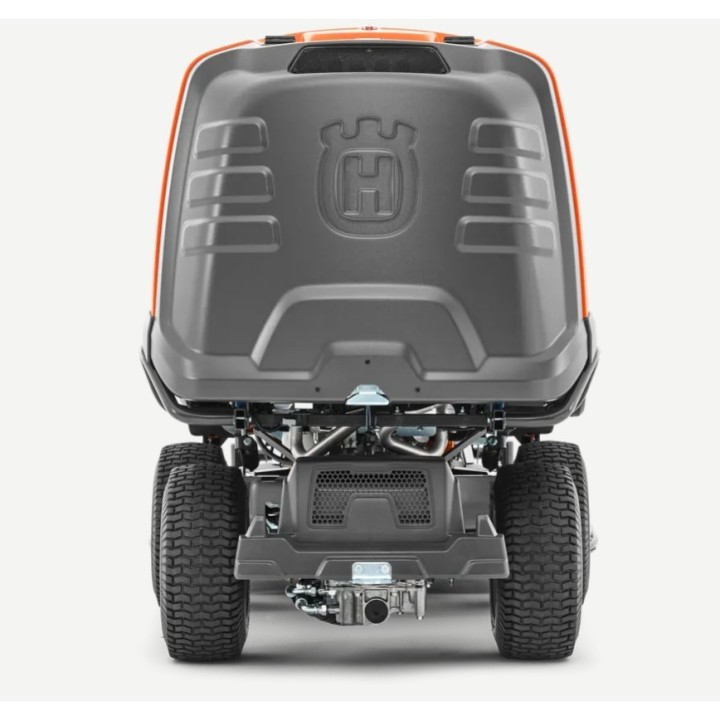

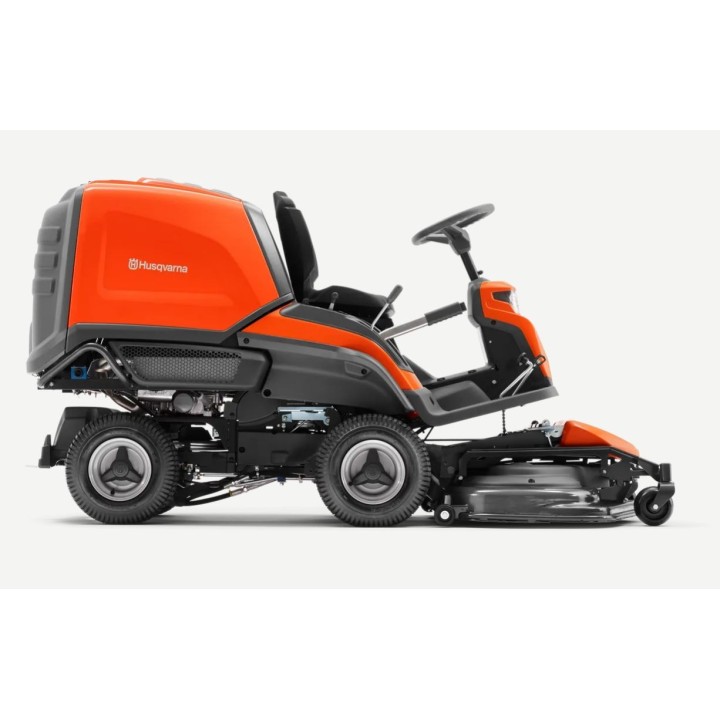

RIDER TRACTOR MOWER

HUSQVARNA RC 320Ts AWD



Front-wheel drive lawnmower

integral with collection system

smart and easy emptying



Rider RC 320Ts AWD Husqvarna offers a traction

integral and a high collection capacity

for cutting large gardens. This

The lawn tractor is equipped with a

innovative anti-clogging collection system

which feeds the cut grass directly

from the front cutting deck

in the 300-liter bag. The compaction

automatic allows for greater capacity

of the collector, so as to

be able to drive longer sooner

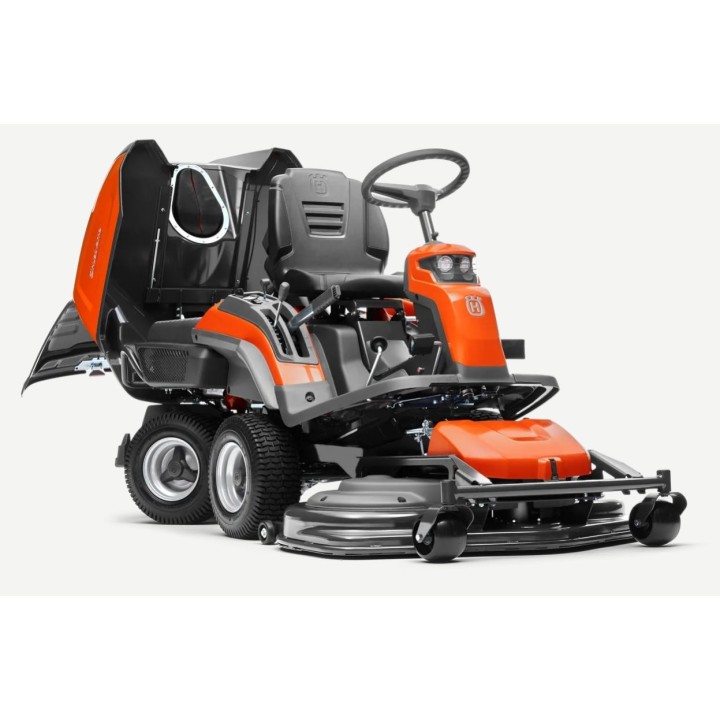

of emptying. Height adjustment

cutting and emptying can be

performed without getting out of the car, contributing to the

comfort and work efficiency.

All-wheel drive provides the power

necessary to maneuver in any

condition and, thanks to the steering

articulated motorized, the RC320T

It can handle even tight bends.

The cutting deck can be tilted

90 degrees to be easily

accessible for maintenance and cleaning.



TECHNICAL SPECIFICATIONS

Fuel type: Petrol

Net power at preset rpm: 12.7 kW

Net power at preset rpm: 2,900 rpm

Engine brand: Husqvarna

Engine manufacturer: Husqvarna

Engine name: HV 635AE

Displacement: 635 cc

Cylinders: 2

Engine cooling: Air

Engine lubrication type: Pressure with oil filter

Oil filter: Yes

Battery capacity: 5.5 Ah

Battery type: Li-Ion

Battery pack weight: 1.18 kg

Battery manufacturer: BMZ

Uncut circle: 60 cm

Cutting width, Min: 103 cm

Cutting width, Max: 112 cm

Cutting height, min: 25 mm

Cutting height, max: 75 mm

Blade engagement: Automatic

Grass collector volume: 300 L

Tire size, front: 16x6.5-8

Tire size, rear: 16x6.5-8

Wheelbase: 90.3 cm

Ground clearance: 90 mm

Base machine, length: 208.9 cm

Basic machine, width: 103 cm

Base machine, height: 128.4 cm

Gross towable weight: 125 kg

Weight (excl. cutting unit): 327 kg

PTO (Power Take-Off): Belt Drive

Transmission type: Hydrostatic

Drive type: Double pedal operation

Forward speed, max: 8 km/h

Reverse speed, max: 7 km/h

Seat suspension: Yes

Seat type: Premium

Hour meter: Digital

Seat material: Vinyl

Seat back height: High

Folding seat: Yes

Steering wheel type: Ergonomic - soft grip

Parking brake, type: Disc



CUTTING PLATE

EXCLUDING



CODE:9706212-01 970621201





MN
