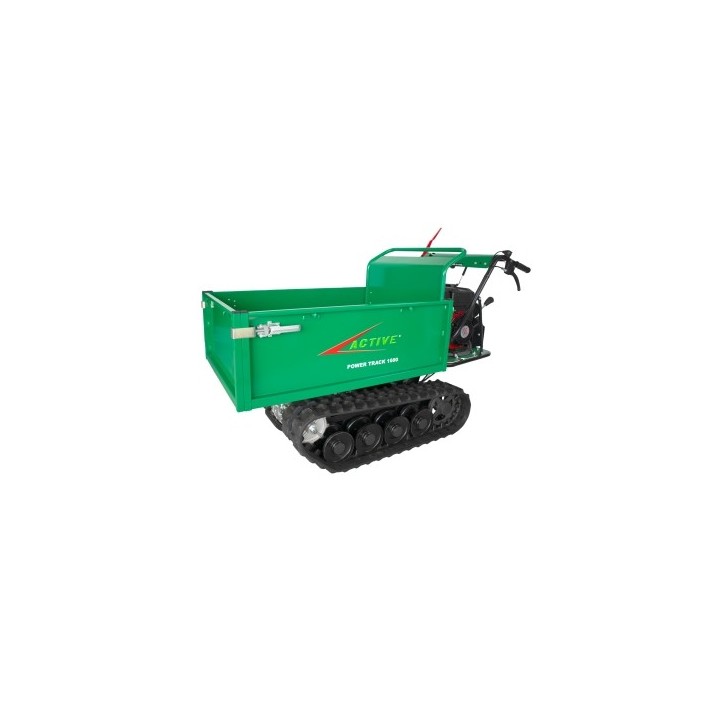

ACTIVE POWER TRACK 1600 DMP dumper truck manual dumper truck TECHNICAL SPECIFICATIONS: Engine: Mitsubishi GB181 Engine type: 4-stroke, single-cylinder, air-cooled with OHV overhead valves Displacement: 181 CC Power (HP/kW): 6.3/4 6 Ignition: Self-recoiling recoil Starter: Green Petrol Fuel tank capacity (lt.): 3.6 Transmission: 3 AV + 2 RM Drive toothed wheel: Steel Clutch: Mechanical with belt tension Brake: Internal expansion parking pressure Soil pressure (exhaust/load Kg/cm2): 0.066/0. 218 Maximum slope when empty: 25 Maximum slope when fully loaded: 15 Tipping Body: Manual Weight (Kg): 245 SPEED (Km/h): 1 AV: 1.93 2 AV: 3.87 3 AV: 6.0 1 RM: 1.84 2 RM: 3. 68 MAXIMUM OVERALL DIMENSIONS: Width (mm): 700 Length (mm): 1800 Height (mm): 950 TRACKED DRIVE TRAILER: Footprint length (mm): 820 Footprint width (mm): 180 Track width (mm): 490 Tracks (width x wheelbase x teeth): 180 x 60 x 37 Min. ground clearance (mm): 65 DUMPER TRAILER: Width: 700 mm Length: 1000 mm Internal height: 400 mm Capacity: 235 l Sheet thickness: 3 mm Load capacity: 600 kg code: 800951 CZ
