TELESCOPIC PRUNER

BATTERY-OPERATED

STIHL HTA 30

For efficient care on private land

The STIHL HTA 30 battery-powered telescopic pruner,

with an ergonomic design and intuitive use,

allows the most demanding private users to work in

efficient and comfortable way in the care of property,

gardens and trees. Thanks to the telescopic pole

rigid adjustable without tools and to tension

automatic chain with integrated spring mechanism,

The STIHL HTA 30 offers effective support

in the pruning of high branches, in the care of

woody plants and in the

removal of dry wood.

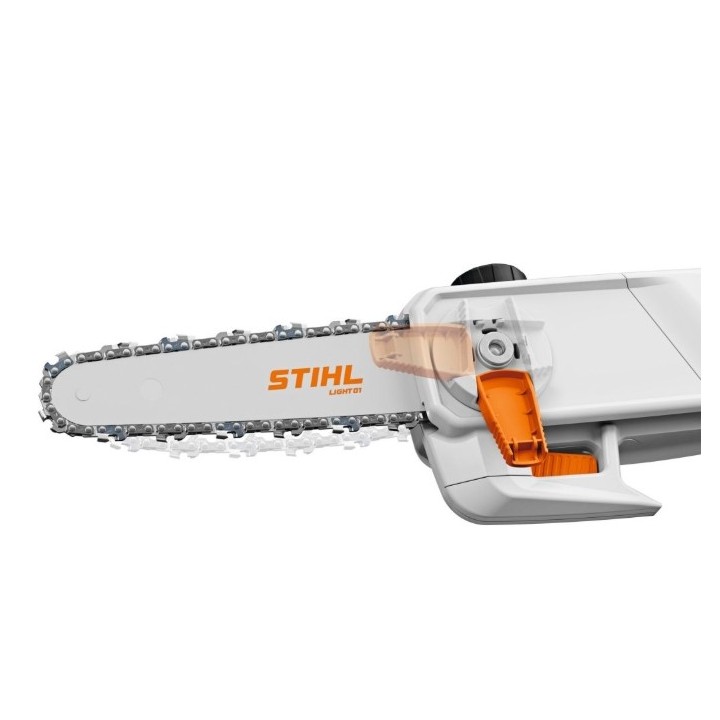

Chain tension can be adjusted

with a simple gesture, opening and closing

the pinion cover, quickly and intuitively to

minimize work interruptions.

The tensioning lever integrated into the hook

for branches ensures the correct pre-tension of the chain and facilitates

quick and tool-free assembly of the unit

cutting after cleaning or replacement

of the chain. The tensioning lever and all other controls

of HTA 30 are easily usable

even with work gloves.

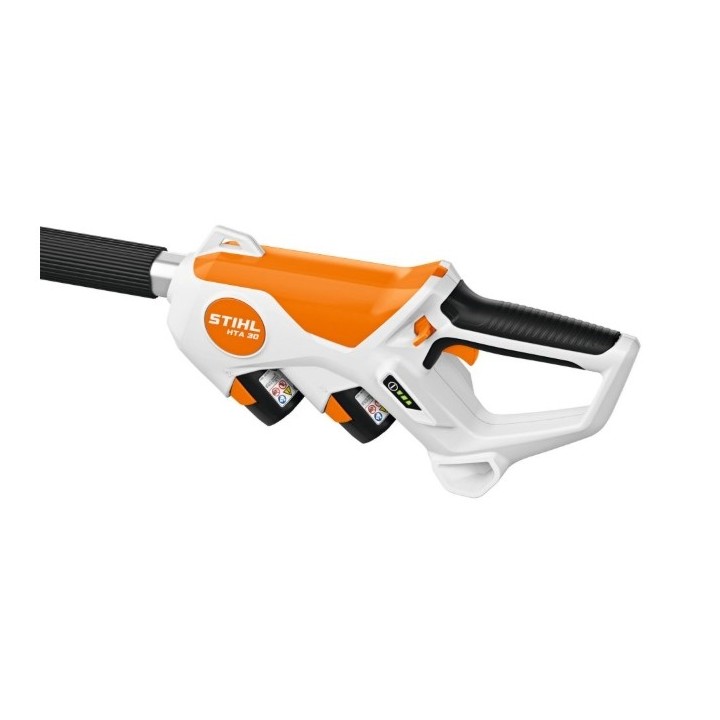

The use of the STIHL HTA 30 is simple and takes place

via the control handle with inserts

Softgrip and ergonomic release system. For a

greater comfort, the rod is equipped with a coating

made of rubber, which allows for quick changes

grip along the pole according to the working height.

Thanks to the unlocking on both sides, the

ergonomic handle design and weight

Weighing only 3.6 kg, working with the HTA 30 is flexible,

efficient and effortless.

The continuously adjustable telescopic rod can be

extended up to a length of 280 cm,

while the total length of the device varies from

190 cm to 280 cm. With the pole fully extended,

The HTA 30 is suitable for working heights

up to 4.5 m and, in the shortened version, it is easier to

transport. With an autonomy of up to 140 cuts

per AS 2 battery charge (28 minutes of battery life,

measured on a 5 x 5 cm dry fir beam),

The HTA 30 offers sufficient performance for most

part of the maintenance interventions.

TECHNICAL DATA

Rated voltage: 22 V

Power consumption: 0.45 kW

Power: 0.30 kW

Battery system: AS

Recommended battery: AS 2

Device weight without battery: 3 kg

Bar length: 20 cm

Groove Width: 1.10 mm

Chain pitch: 1/4"P

Maximum operating time of AS 2 battery: 28 min

Max. cuts per AS 2 battery charge: 140

Minimum length of the device with tool: 190 cm

Maximum length of the device with tools: 280 cm

CHOOSE FROM THE FOLLOWING CONFIGURATIONS

1- CAR ONLYLA05-011-6400

2- MACHINE + 2 AS 2 BATTERIES + ALS 31 BATTERY CHARGERLA05-011-6410
