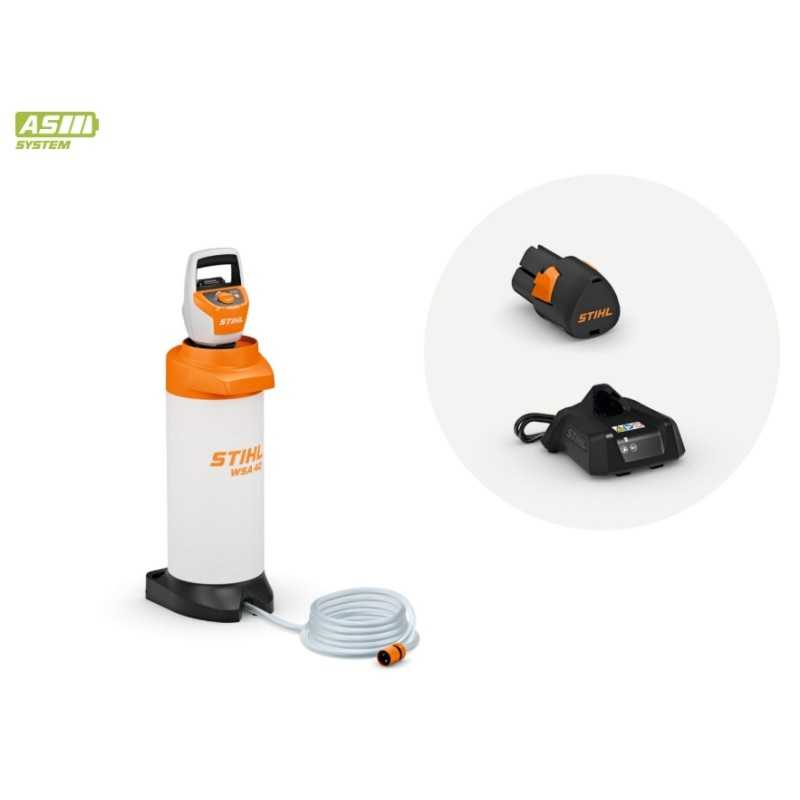

WATER TANK

STIHL WSA 40

Thanks to the STIHL WSA 40 battery-powered water tank

You can make clean wet cuts with your STIHL mitre saw

even on a construction site without a water connection.

It is ideal for both professional use in gardening and in the care of

landscape, both in civil and road construction and in construction.

The robust compressed air pump ensures

automatically a constant water supply throughout

battery life. Water binds the particles of

dust and simultaneously cools the cutting disc.

This practical set includes:

in addition to the robust 10-litre tank with

level indicator, relief valve

pressure relief, 4 meter long water hose

with standard connection and pump head, also a battery

STIHL AS 2 and a STIHL AL 1 battery charger.

So you can get started right away

your works as soon as you receive the product.

The STIHL WSA 40 is easy to use

and has an adjustment

continuous pressure between 1.5 and 2.5 bar, for

adapt the water flow to different applications.

When the tank is empty

or the device is not used

for a certain period of time, the WSA 40 switches off automatically,

thus extending battery life. Thank you.

with the LED charging status indicator, you always have it under

check the remaining battery life. The softgrip handle makes the

transport and management of the WSA 40 in particular

ergonomic and comfortable.

The STIHL WSA 40 battery-powered water tank

It is compatible with all STIHL cutting machines

battery and petrol.

The STIHL PKA 30 pump head included in the package

can also be used with the water tank

STIHL manual pressure for refueling

cutting machine cabinet,

as well as with the STIHL SG 21 and STIHL sprayers

SG 31.

The pump head

PKA 30 of the WSA 40 tank is

designed for professional applications and everyday use

even in difficult weather conditions.

For this reason it is equipped with protection

from certified water splashes.

The effectiveness has been demonstrated by rigorous internal tests.

On the STIHL PKA 30, the splash protection,

already verified in internal tests, it has also been

certified according to protection class IPX4.

TECHNICAL DATA

Rated voltage: 11 V

Recommended battery: AS 2

Battery system: AS

Device weight: 3.1 kg

Container capacity: 10 L

Operating pressure: 1.5 - 2.5 bar

Operating pressure: 36 psi

Minimum water flow rate: 2.8 L/min

Max water flow: 3.2 L/min

Maximum operating time of AS 2 battery: 30 min

Maximum tank filling for AS 2 battery charge: 12 L

Device Width: 218 mm

Device height: 745 mm

Tool Depth: 260 mm

CODE:SA090118510
