MOTOR PUMP

DIESEL SELF-PRIMING

LOW HEAD

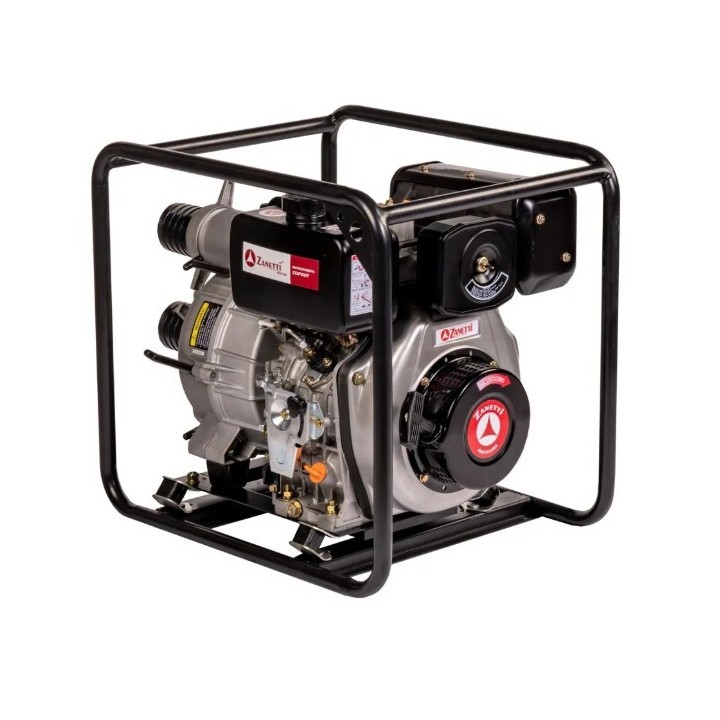

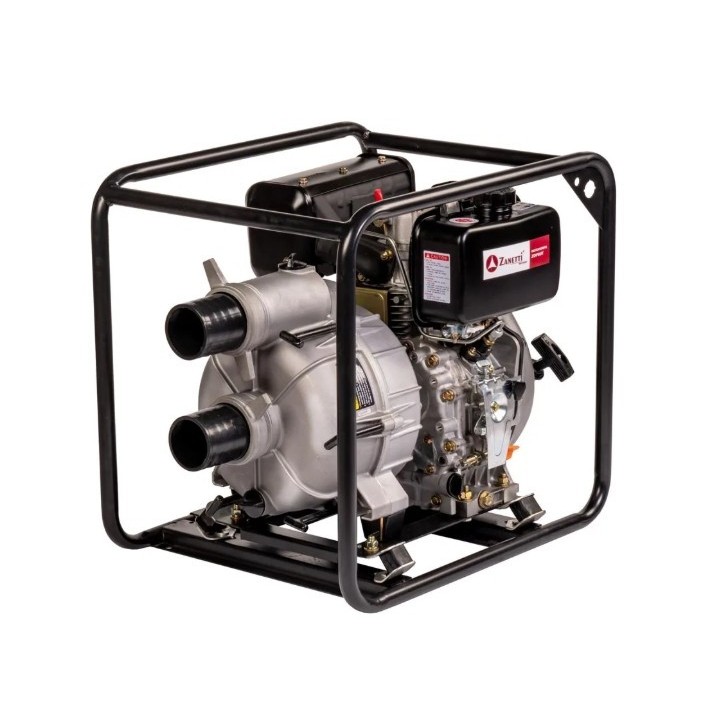

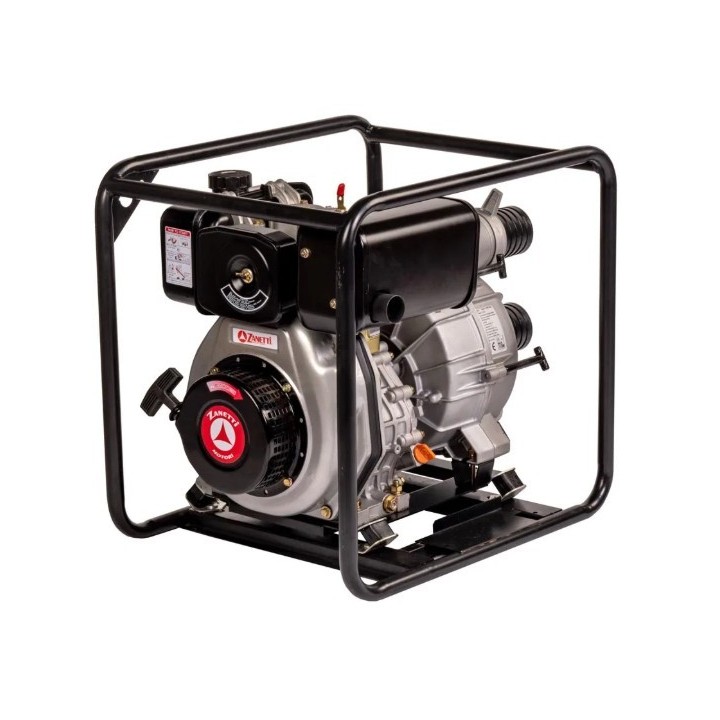

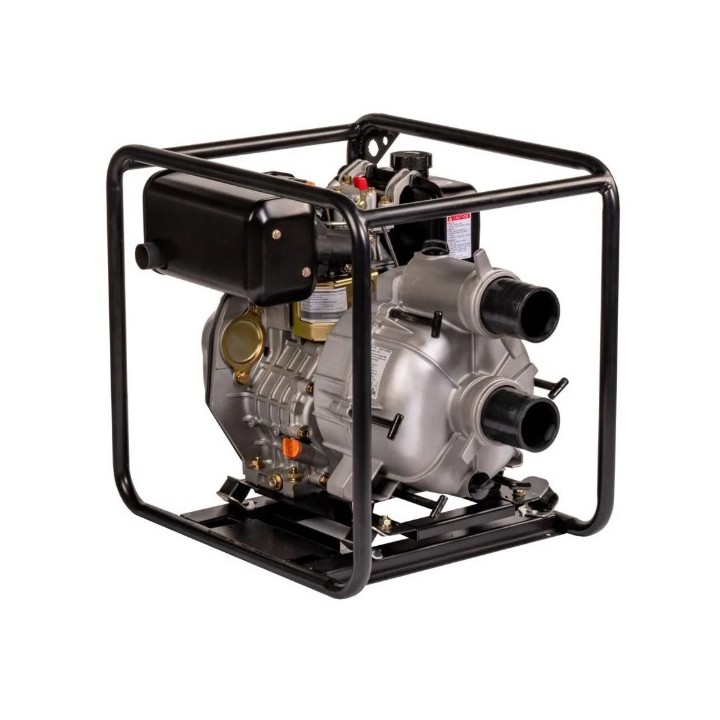

ZANETTI ZDP 80 TV

The 3" ZDP 80 TV

diesel motor-pump for turbid water with inspectable pump

is ideal for pumping dirty water containing

solids with a diameter of less than 30 mm.

PROFILE SPECIFICATIONS

Pump type: Self-priming - turbid water

Suction diameter: 80 mm (3")

Discharge diameter: 80 mm (3")

Suction height (m): 7

Maximum head (m): 28 at zero flow

Maximum flow rate (Lt/min) 1000

Motor model (Kw): ZDM 78 - 4,4 kW

Starting: recoil start

Tank capacity (Lt): 3,5

Dimensions mm (WxLxH): 585x460x535

Dry weight (Kg): 52

Fittings kit: Yes

Pump material: Aluminium

Intended use: Turbid water

CODE: ZDP 80 TV
