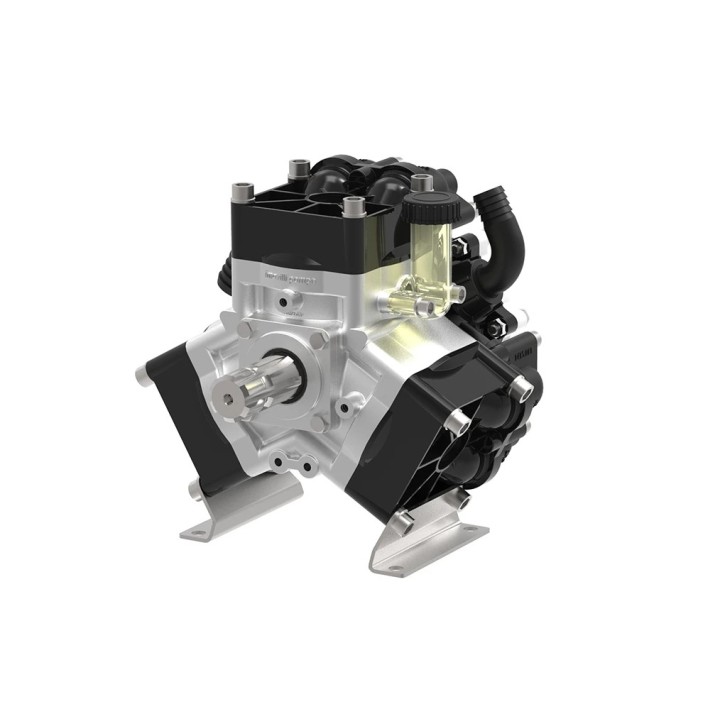

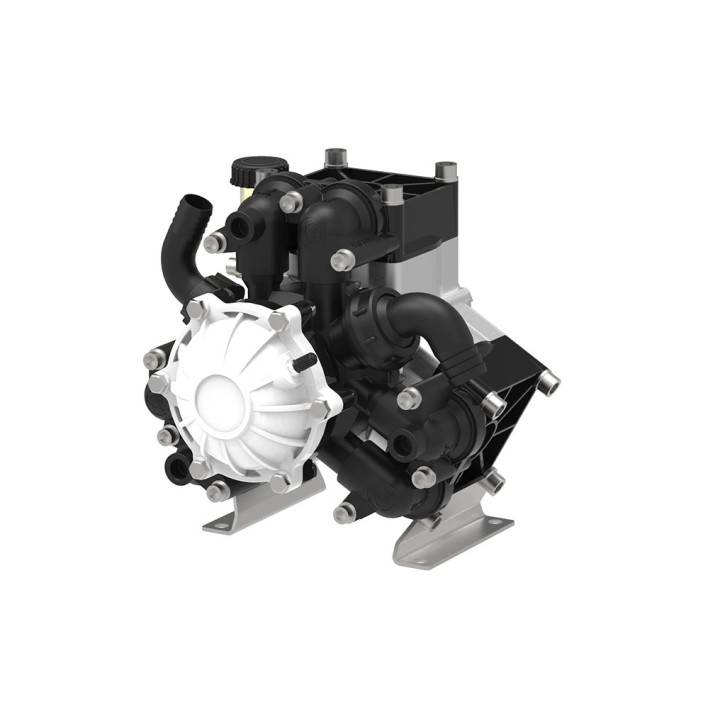

Diaphragm pump D 123 IMOVILLI low pressure 120 l/1' - 20 bar - 550 rpm

Diaphragm pump
D 123
IMOVILLI
low pressure
120 l/1' - 20 bar - 550 rpm

Pump with three semi-hydraulic membranes, external manifolds, control available
only at a distance and parts in contact with liquids made of anti-corrosion plastic material.
Used for weed-control and liquid fertilization treatments.
Standard with M 1'3/8 shaft.

Revolutions/1: max 550 rpm
Pressure: max 20 bar
Flow rate: max 120 l/1
Weight: 12.7 kg
Dimensions: 336x330x290

ORIGINAL CODE: 3050.001
