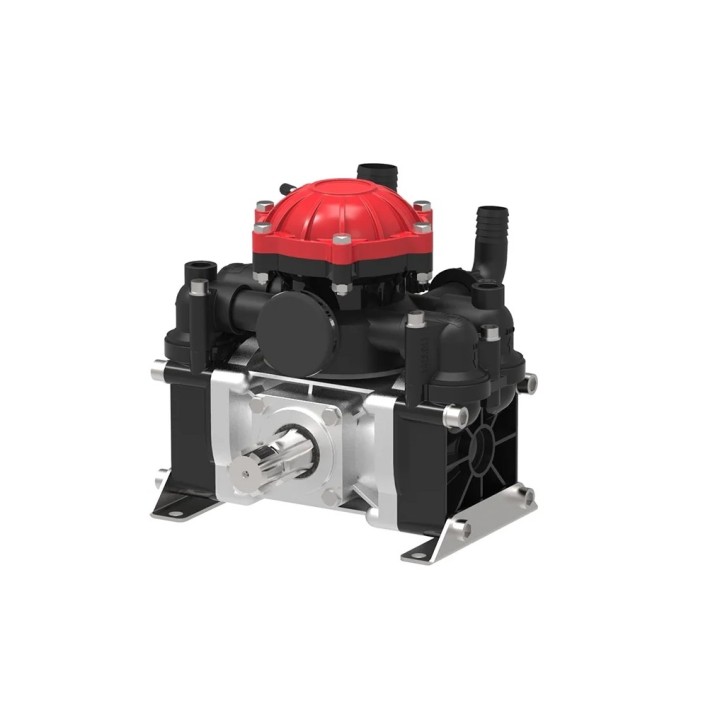

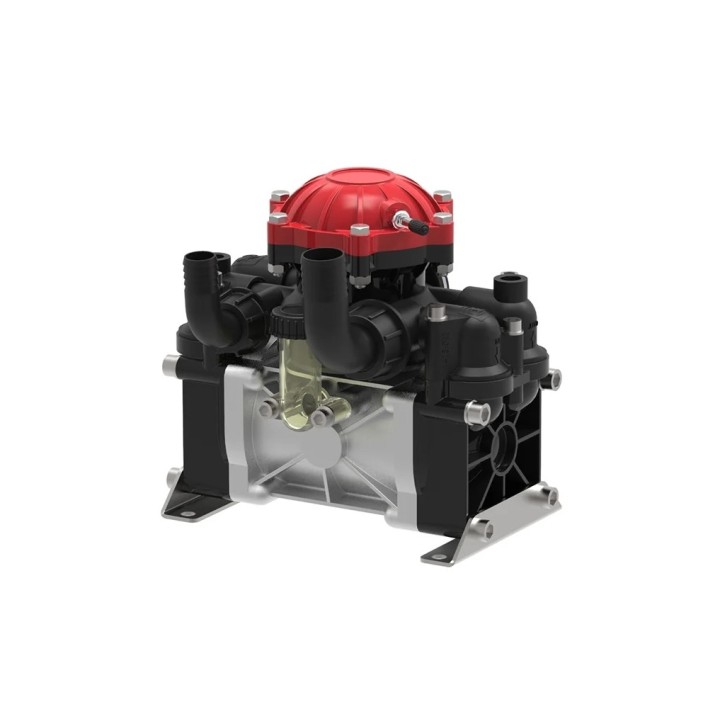

Diaphragm pump D 82 IMOVILLI low pressure 79 l/1' - 20 bar - 550 rpm

Diaphragm pump
D 82
IMOVILLI
low pressure
79 l/1' - 20 bar - 550 rpm

Pump with two semi-hydraulic membranes, external manifolds, control available
only at a distance and parts in contact with liquids made of anti-corrosion plastic material.
Used for weed-control and liquid fertilization treatments.
Standard with M 1'3/8 or Pass-through shaft.

Revolutions/1: max 550 rpm
Pressure: max 20 bar
Flow rate: max 79 l/1
Weight: 10.5 kg
Dimensions: 273 x 303 x 253

ORIGINAL CODE: 3048.001
