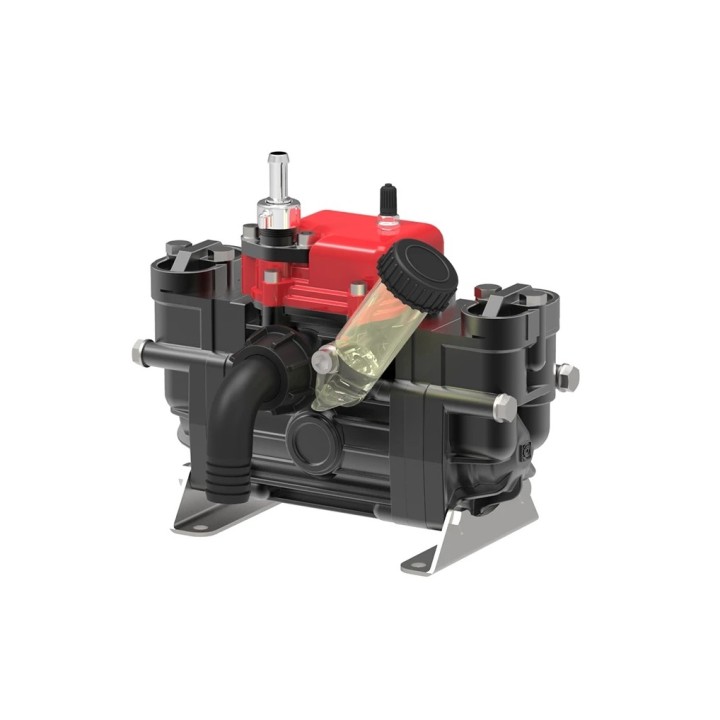

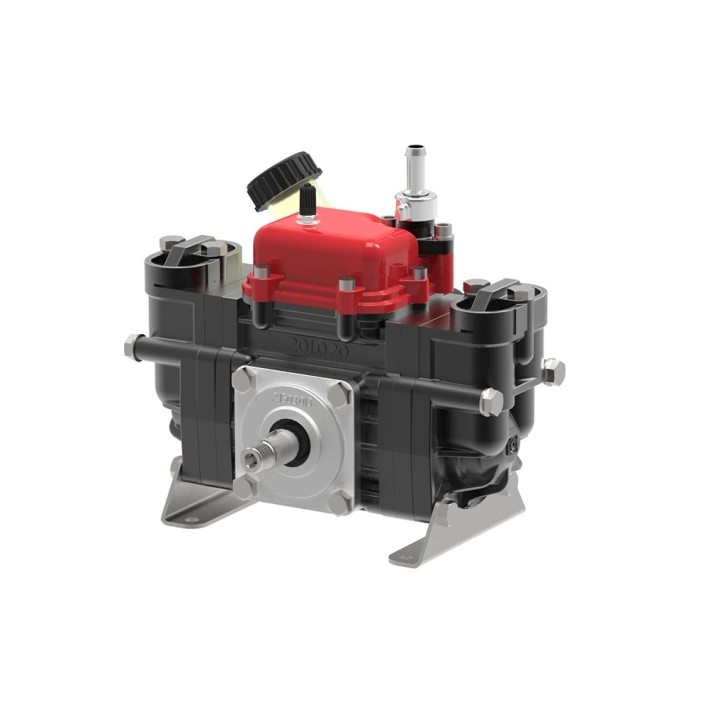

Piston pump PM 22 IMOVILLI high pressure 24 l/1' - 40 bar - 1000 rpm

Piston pump
PM 22
IMOVILLI
high pressure
24 l/1' - 40 bar - 1000 rpm

Two-piston pump in integral ceramic, separate oil bath crank
On the pumping side, internal collectors, parts in contact with oxidised anti-corrosion liquids.
Built-in or remote control not included.
Used for Spraying, Atomizers and Industry.
Standard conical shaft diameter 20 mm.

Revolutions/1: max 1000 rpm
Pressure: max 40 bar
Flow rate: max 24 l/1
Weight: 6 kg
Dimensions: 251x237x297

ORIGINAL CODE: 3054.002
