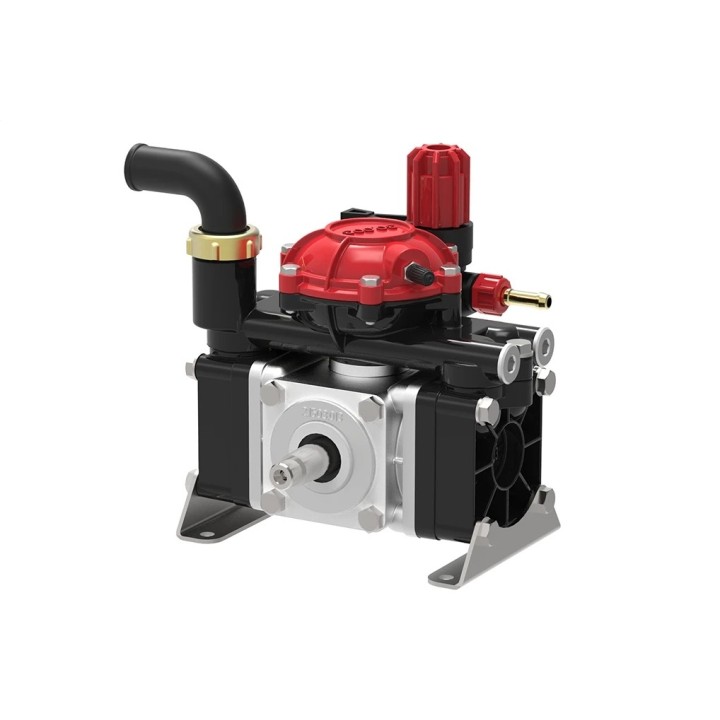

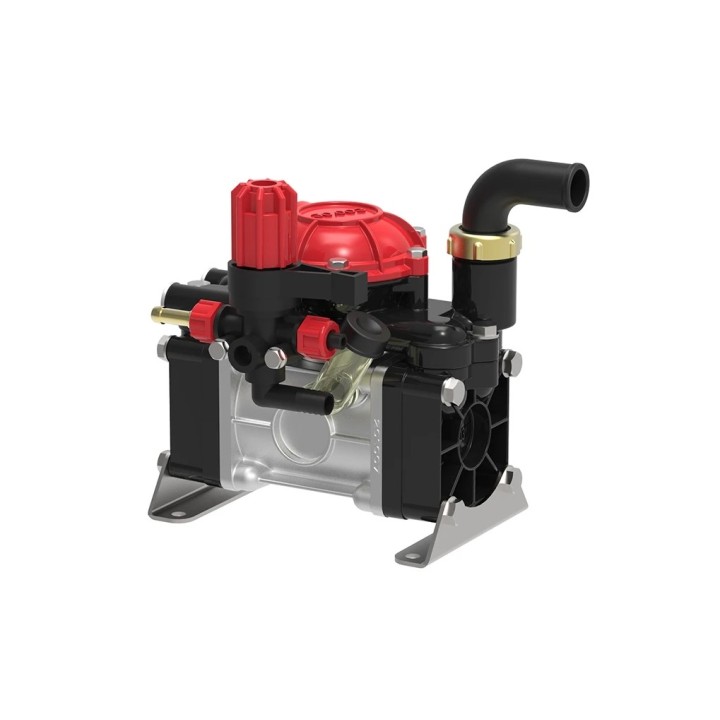

Diaphragm pump
MINI
IMOVILLI
low pressure
25 l/1  - 25 bar - 700 rpm

Pump with two semi-hydraulic membranes, external collectors, parts in contact with plasticized liquids
corrosion protection, built-in control valve.
On request, remote or built-in control group.
Used for small treatments, even professional spraying, disinfestation, weeding and washing.
Standard conical shaft diameter 20 mm.
Optional with reducer for monoblock coupling to thermal and electric motors, motor pumps.

Revolutions/1: max 700 rpm
Pressure: max 25 bar
Flow rate: max 25 l/1
Weight: 5 kg
Dimensions: 201x235x218

ORIGINAL CODE: 3002.012
