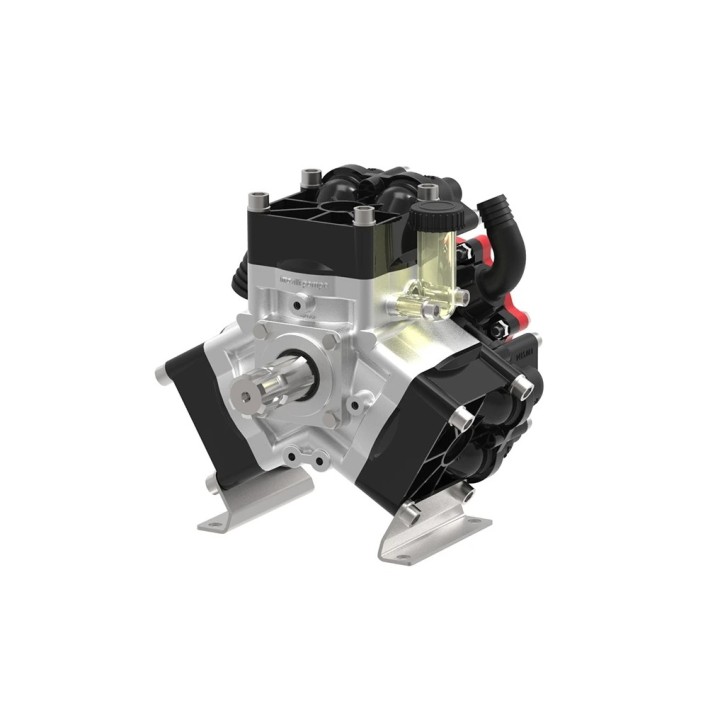

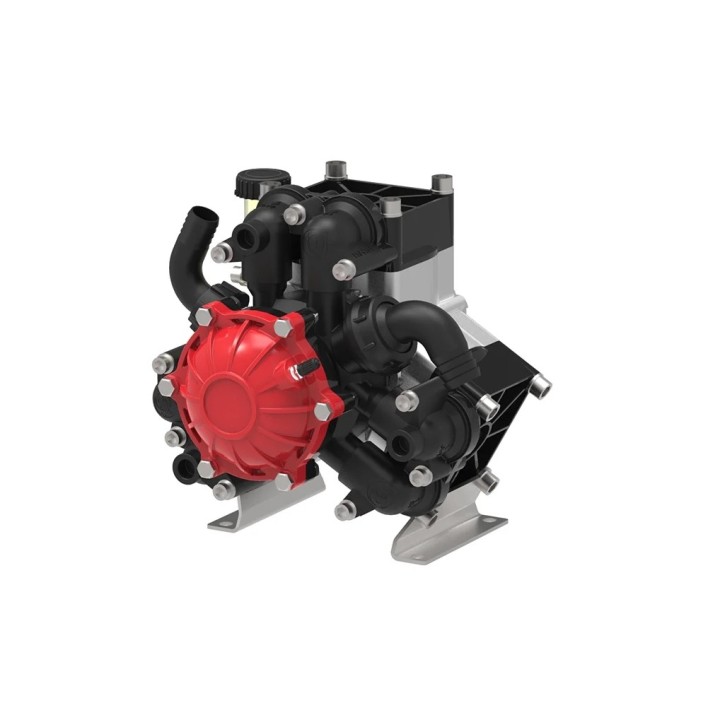

Diaphragm pump D 113 IMOVILLI low pressure 110 l/1' - 20 bar - 550 rpm

Diaphragm pump
D 113
IMOVILLI
low pressure
110 l/1' - 20 bar - 550 rpm

Pump with three semi-hydraulic membranes, external manifolds, control available
only at a distance and parts in contact with liquids made of anti-corrosion plastic material.
Used for weed-control and liquid fertilization treatments.
Standard with M 1 3/8 shaft.

Revolutions/1: max 550 rpm
Pressure: max 20 bar
Flow rate: max 110 l/1
Weight: 12.5 kg
Dimensions: 309 x 330 x 270

ORIGINAL CODE: 3049.001
