Motor-hoist with spark ignition

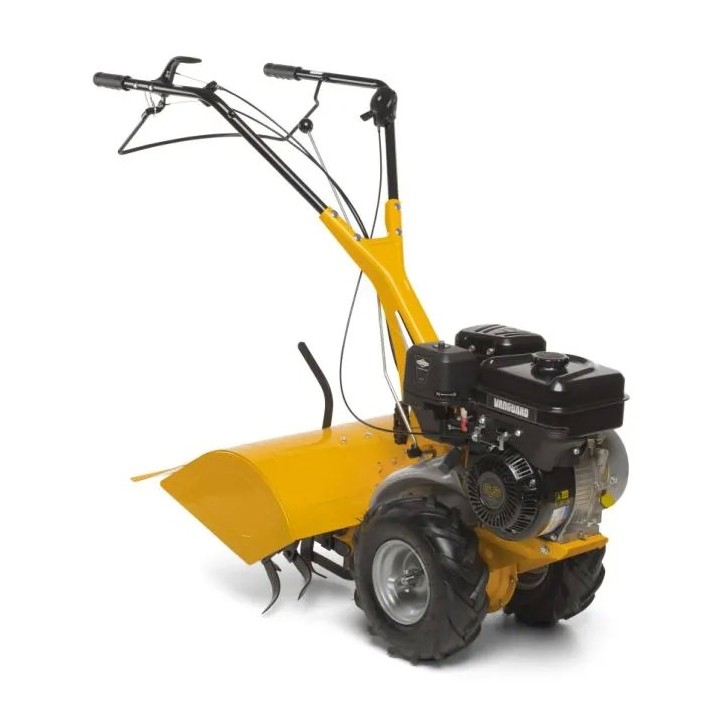

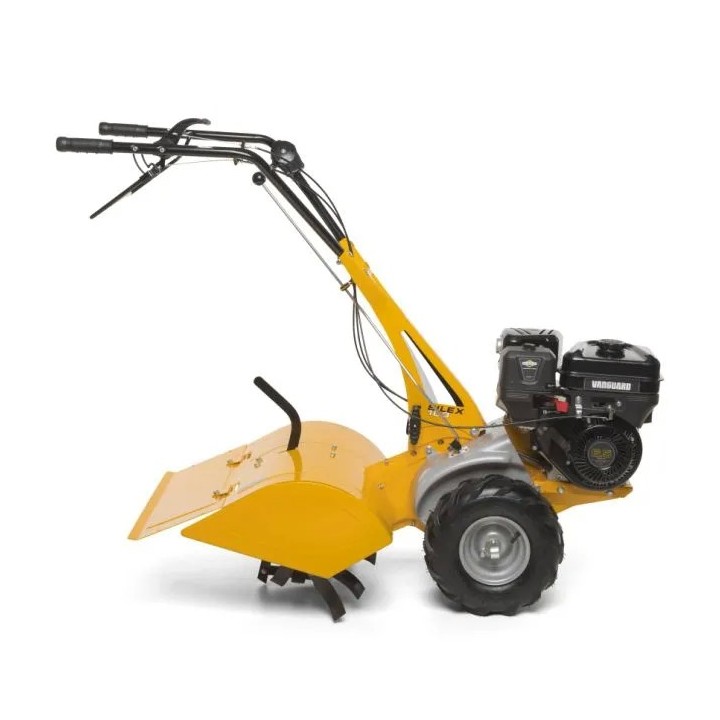

STIGA Silex 103 B

The most intensive work of milling and preparation of the sowing bed become simple and fast operations.
The STIGA SILEX 103 B is a reliable and safe motor thanks to the power of the Briggs & Johnson engine
Stratton 208 cc and the stability of the two balanced wheels. The 6 rear rotors with working width of
60 cm and 22 cm depth, they are able to penetrate the soil by breaking the hardest earth clods and
Stirring them to increase friability and aeration. Also suitable for very hard soils, where the work
of a hoist may not be enough, it is easy to maneuver due to the presence of 2
Forward and one reverse gears.

TECHNICAL DATA:
Power
Power: 4.8 kW
Power: 4-stroke petrol
Engine brand: Briggs & Stratton
Engine model: B&S 950 CR Series
Cylinder capacity: 208 cm3
Fuel tank capacity: 3.8 L
Oil capacity of gearbox: 0.5 L
Air filter type: Compressed fiber
I work
Working width: 60 cm
Number of rotors: 6
Rotor diameter: 320 mm
Protection of milling cutters: No
Transmission
Number of gears: 2 forward + 1 rear
Transmission: Chain and gear in oil bath + belt
Equipment
Wheels: Pneumatic
Transport wheels: 15x5.00-6
Adjustable handle: Yes
Soft grip: No
Dimensions
Product length: 1420 mm
Product width: 600 mm
Product height: 1173 mm
Product weight: 70 kg

ORIGINAL CODE: 210310022/10
