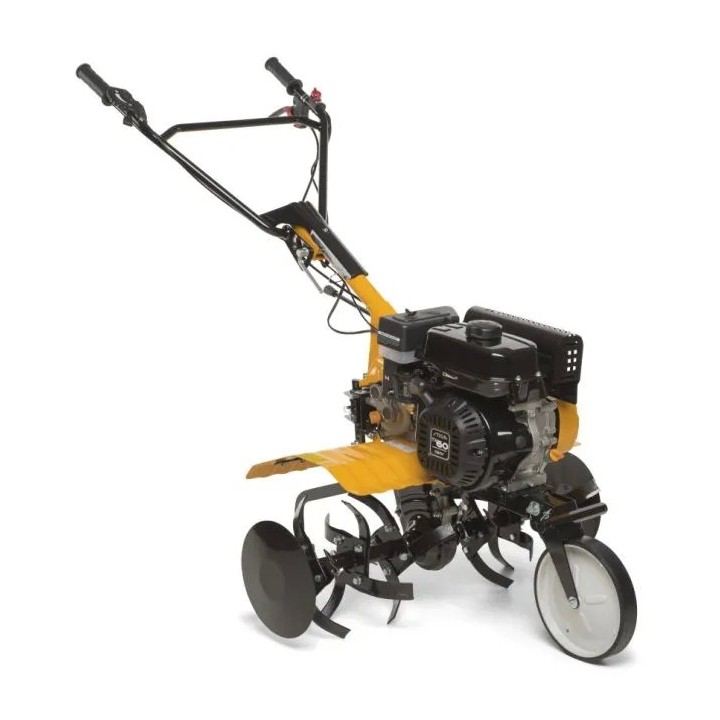

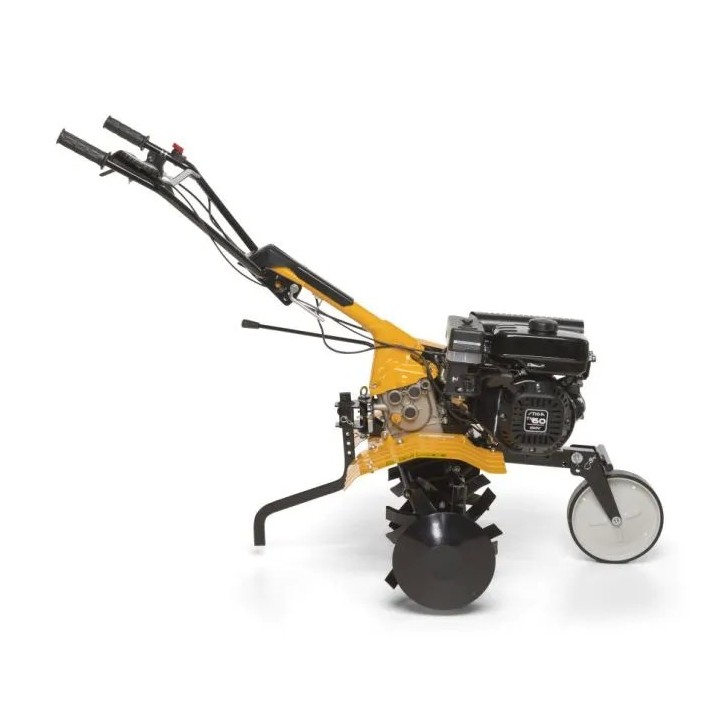

Spark ignition unit STIGA SRC 685 RG 182 cc working width 85 cm

Motor-hoist with spark ignition
STIGA SRC 685 RG

STIGA SRC 685 RG is a spark-ignition engine combining a perfect balance of power,
compactness and practicality, suitable for the preparation of gardens and soils even challenging conditions.
Equipped with 6 rotors (3 on each side) for a working width of 85 cm, this motor hoe
a working depth of 15 cm. The 4-stroke internal combustion engine has a displacement of 182 cc and a
power of 3.5 kW; the 3 gears, 2 forward and 1 reverse, guarantee a high manoeuvrability
of the hoe. The front wheel and adjustable grip provide greater comfort
use and allow easy transport. The protective discs, finally, allow you to use the
Spark-ignition hoe SRC 685 RG also in the vicinity of edges and trees.

TECHNICAL DATA:
Power
Power: 3.5 kW
Power: 4-stroke petrol
Engine: TM 60
Cylinder capacity: 182 cm3
Fuel tank capacity: 3 L
Oil capacity of gearbox: 0.5 L
Air filter type: Oil bath
I work
Working width: 85 cm
Working depth: 15 cm
Number of rotors: 6
Rotor diameter: 245 mm
Protection of milling cutters: Yes
Transmission
Number of gears: 2 forward + 1 rear
Transmission: Chain and gear in oil bath + belt
Equipment
Wheels: Plastic + Rubber
Transport wheels: 1 front wheel
Adjustable handle: Yes
Soft grip: YES
Dimensions
Product length: 1680 mm
Product width: 850 mm
Product height: 1050 mm
Product weight: 62.5 kg

ORIGINAL CODE: 213851142/ST1
