Motor-hoist with spark ignition

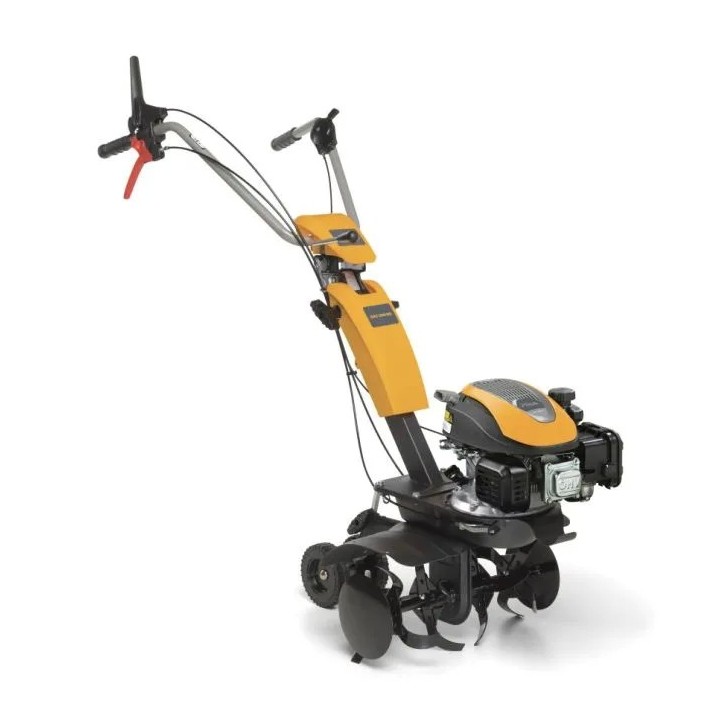

STIGA SRC 550 RG

The STIGA SRC 550 RG combines comfort and manoeuvrability. Equipped with a
4-stroke spark ignition engine of 123 cc (1.66 kW), SRC 550 RG and' equipped with 2 gears, 1 forward
and 1 reverse gear, which allow to work the land of vegetable gardens and fields minimizing

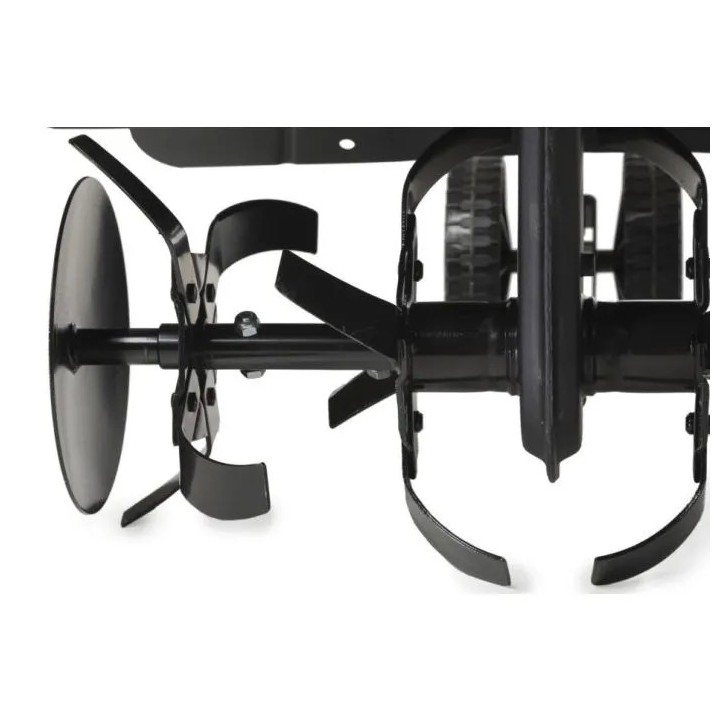

Effort in displacements. 4 rotors (2 per side) with working width of 50 cm and depth'
20 cm ensure a perfect break of the soil clods, stirring them without fatigue and
Thus preparing the soil for the sowing phase. The lateral protection discs allow
Use the hoe safely even near trees. The handle is adjustable
in height and angle for more comfort. SRC 550 RG is equipped with 2 front wheels
They facilitate the transport of the machine.

TECHNICAL DATA:
Power
Power: 1.66 kW
Power: 4-stroke petrol
Motor: ST 120 OHV Autochoke
Cylinder capacity: 125 cm3
Fuel tank capacity: 0.8 L
Oil capacity of gearbox: 0.2 L
Air filter type: Sponge
I work
Working width: 50 cm
Number of rotors: 4
Rotor diameter: 260 mm
Protection of milling cutters: Yes
Transmission
Number of gears: 1 forward + 1 rear
Transmission: Worm and cog in oil bath + belt
Equipment
Wheels: Plastic
Transport wheels: 2 rear wheels
Adjustable handle: Vertical and horizontal
Soft grip: No
Dimensions
Product length: 1300 mm
Product width: 500 mm
Product height: 1100 mm
Product weight: 42 kg

ORIGINAL CODE: 212501042/ST1
