- New

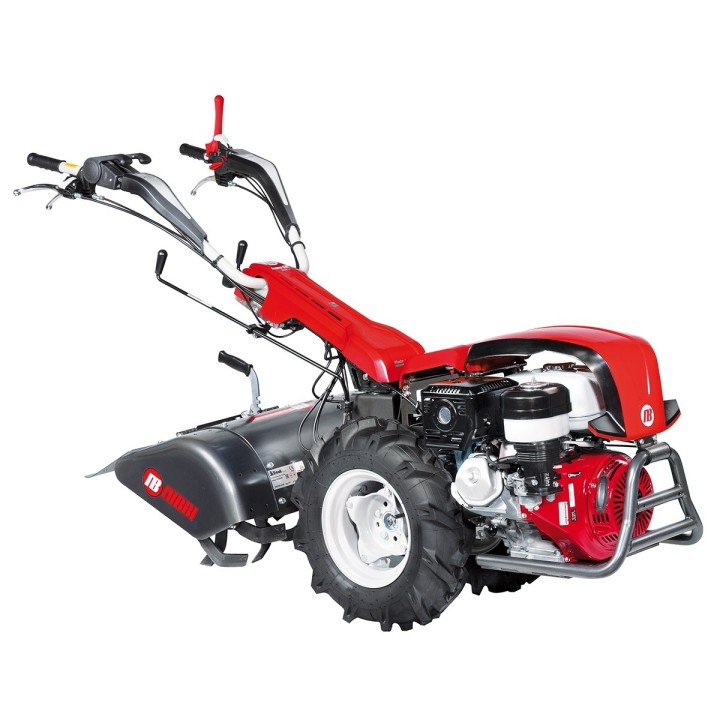

COMPLETE MACHINE ALREADY CONFIGURED NIBBI KAM 13 S MOTOR-CULTIVATOR INCLUDING RUBBER WHEELS 5.0-10 DR AND 70 cm CUTTER WITH HONDA GX 340 OHV 389 cc PETROL ENGINE WITH SELF-CLEARING START Designed for professional use, with a 3-speed gearbox with differential, it is able to tackle the most demanding jobs, taking advantage of different engines. Extremely versatile and safe, thanks to the EHS facilitated clutch control, it combines robustness with manoeuvrability. A wide range of accessories meets the specific needs of each user. RECOMMENDED EQUIPMENT MACHINE COMBINED WITH - 5.0-10 DR tyred wheels Cod. 69209003B - 70 cm rotor with Quickfit Cod. 69219059 TECHNICAL SPECIFICATIONS: Engine: HONDA GX 340 OHV Fuel: petrol Displacement: 389 cc Power: 10. 7 Hp Starting: recoil start Gearbox: 6 speeds (3 forward + 3 reverse) Differential: yes Gear shuttle: yes, with lever on handlebar Transmission: with gears in oil bath Clutch: multi-disc dry Clutch handlebars: adjustable on the side, in height and reversible to 180 with anti-vibration device Brakes: yes PTO: independent at 973 rpm Attachment of accessories: QuickFit (optional) Towing hitch: yes Engine bonnet: yes Weight (with diesel engine, tiller and wheels): 130 kg - Differential lever and shuttle are easy to reach and operate - EHS system guarantees ease of use, reduced effort and maximum user-friendliness - QuickFit hitch allows the operator to change attachments without the use of a key ORIGINAL CODE: 68329210E5S1 CZ
