PETROL LAWN MOWER

FROM SLOPE

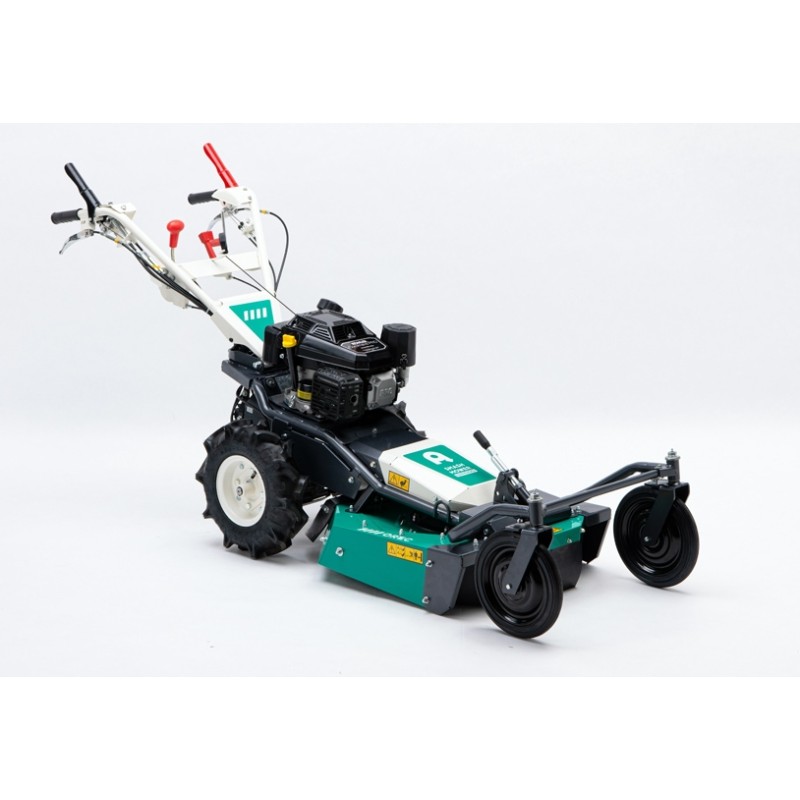

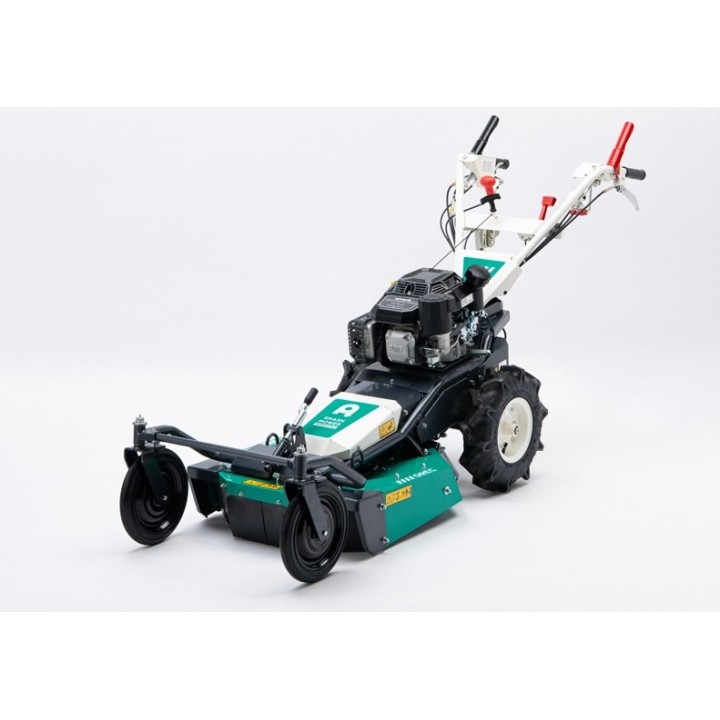

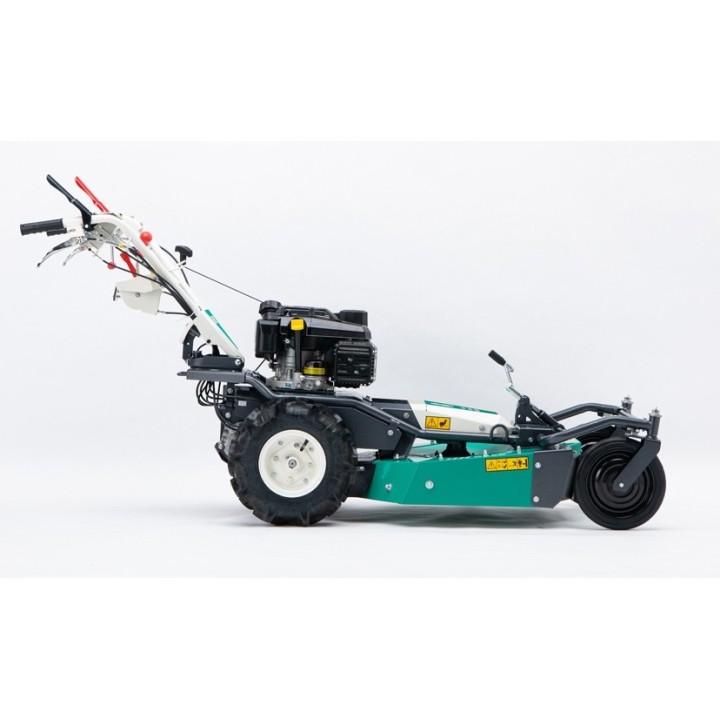

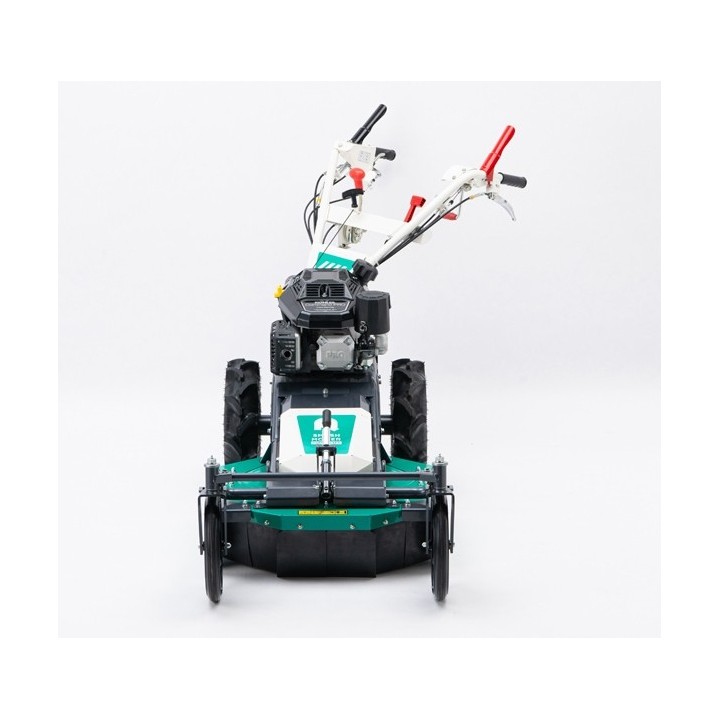

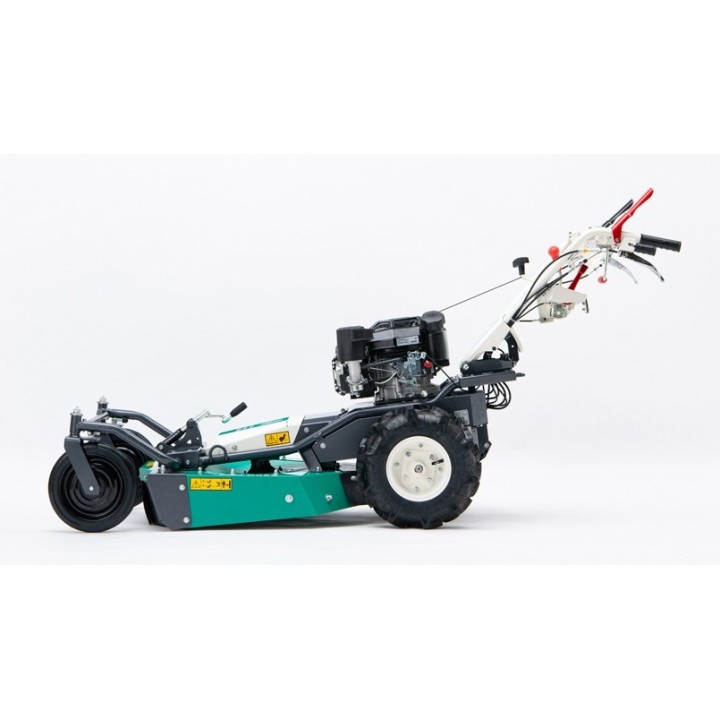

OREC SR600

Orec line of lawnmowers

represent the best answer today

for those who demand quality and performance

high for cutting tall grass.

The SR600 model is ideal for a terrain

medium-large sized rustic

on slopes up to 25 degrees.

For example an orchard or land in

hill where the grass is cut

It occurs rarely and it is necessary to remove it

tall, coarse, and invasive grass.

The structural strength and the

clawed wheels always guarantee

grip and traction even on rough terrain.

Orec has placed great attention in the development

cutting plate technician to have

always maximum ventilation inside

of the same and allow

optimal discharge of the cut grass.

TECHNICAL DATA

Engine model: Kohler Command PRO CV224

Displacement [cc]: 224

Start-up: Self-winding rope

Tank capacity: 2.4 Liters

Shell Material:THEin stamped and welded steel

Cutting width [cm]: 60 cm

Adjustment, positions / cutting height: millimetric / 50 – 110 mm

Blade Type:Pmowing blade

Traction:Pdesigned and built by Orec

Transmission Type: Mechanical with differential lock – 3 forward gears + 1 reverse gear

Speed ??km/h: 1 – 1.9 / 2 – 3.1 / 3 – 5.0 / 1R – 2.3

Handlebar Type: Adjustable in height and laterally with a single quick lever

Wheel size (front/rear):Pivottante (lockable) / 4.00 – 7 tractor

Machine Configuration:Smowing and dumping on the ground

Dimensions (L x W x H) [cm]: 200 x 68 x 115

Weight [kg]: 118

CODE:SR600
