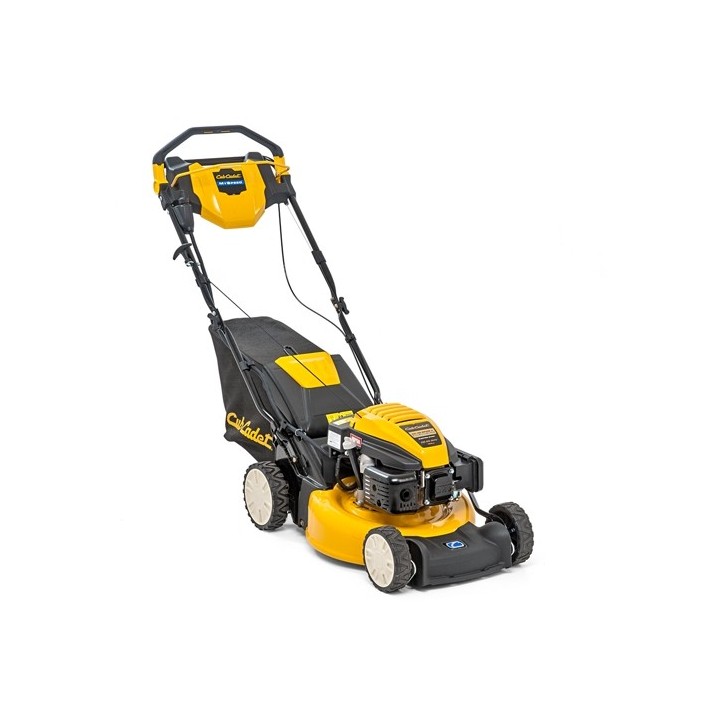

LM2 DR46s CUB CADET CUB CADET ENGINE STRAP START TECHNICAL DATA MODEL Cub Cadet 55 OHV CYLINDER 159 cc NOMINAL POWER 2.5 kW / 2800 min MANUAL START TANK CAPACITY 1.0 l TRANSMISSION Yes, rear variable SPEED NUMBER SPEED (max) 0-3, 6 km/h INDICATIVE HORRARY SURFACE 750 m /h SHELL (material) steel CUTTING WIDTH 46 cm CUTTING OPTIONS 3-in-1 Option CUTTING HEIGHT ADJUSTMENT 6-position / centralised CUTTING HEIGHT (min-max) 28- 92 mm COLLECTION as standard KIT MULCHING as standard LATERAL DISCHARGE as standard REAR DISCHARGE WITHOUT COLLECTION cloth COLLECTION BAG CAPACITY 60 L FULL BAG INDICATOR / WHEELS (A/P) 180 mm / 200mm DOUBLE BALL BEARINGS as standard WASHING NOZZLE as standard My speed HANDLE FOLDING HANDLE as standard ADJUSTABLE HANDLE as standard HANDLE PADDLE / LpA/LwAg (db) 84/94/96 HAND/HANDLE INCERTAGE VALUE / K- factor 5, 0 / 1,5 m/s DIMENSIONS (WxLxH) 150 x 49 x 114 cm NET WEIGHT 31 Kg CHARACTERISTICS The Cub Cadet LM2 series has many features that reduce the stress associated with mowing operations: - MY SPEED traction that makes mowing easier and more efficient (just walk and the mower automatically adjusts to your stride) - large collection box (reduces the number of emptyings, saving time and reducing trips to the compost heap) - the ergonomic height-adjustable handle (to ensure correct posture during use) - the centralised cutting height adjustment system (you can adjust the cutting height with a single lever, simultaneous action on all wheels) The OHV engine provides the right power for every need In addition, with this series it is possible to choose between collecting and discharging grass clippings To convert the mower from discharging to mulching mode, simply insert the mulching cap, available as an accessory CODE: 12EBTQKC603 EM
