PETROL LAWN MOWER

AMA ZRTURN TRX 510 Z

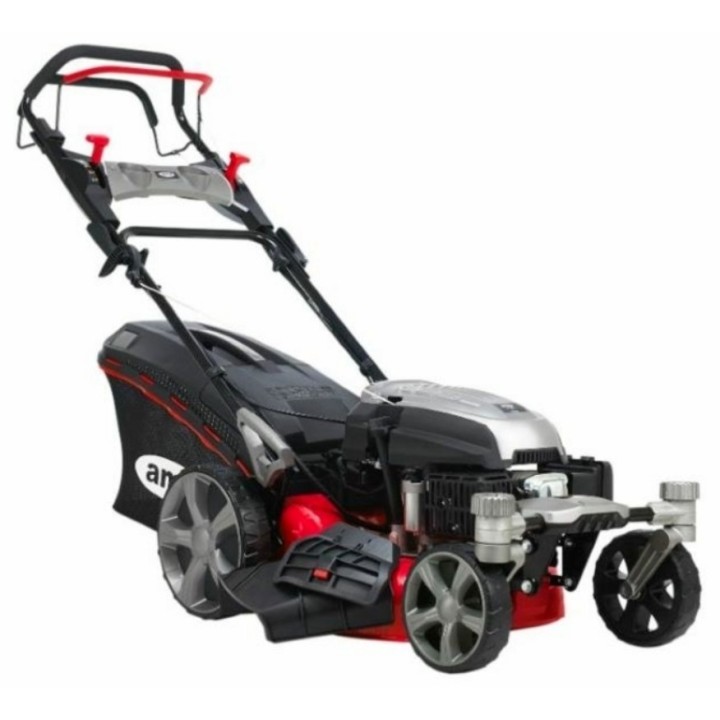

AMA TRX 510Z self-propelled lawnmower with 4-in-1 function

and 360-degree rotating front wheels, 51 cm cutting width.

Centralized height adjustment, 6 positions available from 25 to 75mm.

The height of the front wheels is adjusted together with the adjustment

of the height of the plate. The front wheels can be locked

to allow the machine to work even in a

Traditional. Lawnmower with a powerful 196 cc overhead valve engine.

You can collect the cut grass in the large 60 l grass collector or mulch it,

that is, shredding the grass into very small pieces that remain on the

soil becoming natural fertilizer.

To set the mulching mode

you need to remove the basket and close the tunnel

exhaust with a simple kit that comes standard in the box.

Alternatively, you can choose whether to dump the grass clippings

laterally or rearward to avoid the disposal of clippings.

Changing modes is quick and easy without the need for tools.

Imported machine, compliant with European Community requirements,

controlled and guaranteed by the Italian AMA group.

4 in 1: Basket collection; Rear discharge;

Side discharge; Mulching (mulching kit included).

The engine is supplied without oil.

TECHNICAL DATA

Traction: Traction

Displacement: 196 cc

Cutting width: 50 cm

Basket capacity: 65 L

Start-up: Manual

Electric start from the mains:Sthe

Fuel tank capacity: 1 L

Oil tank capacity: 0.6 L

Fuel:Benzyme

Certifications: THERE IS

Collection basket:Sthe

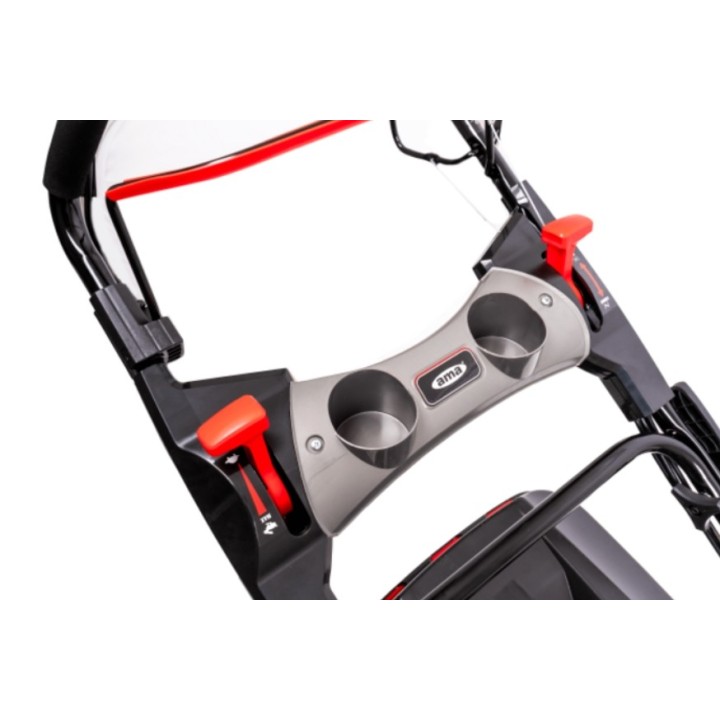

Handlebar controls:Sthe

Security devices: Machine stop when lever is released

Revolutions per minute: 2800 rpm

Handle:TOnon-slip

Adjustable handle:Sthe

Mulching kit: Included

Lubrication: SAE 30

Engine brand: Love

Wheel sizes: 200 -280 mm

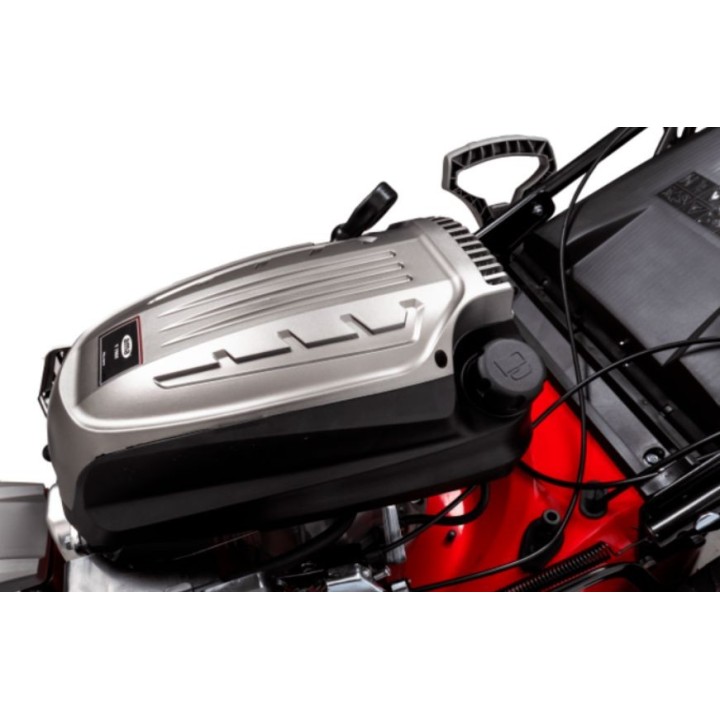

Engine model: Y196V OHV

Blade movement:Rotant

Number of wheels: 4

Cutting positions: 6

Mechanical power: 6.5 hp

Rated power: 4.2 kW

Quick start primer:Sthe

Washing connection:Sthe

Engine cooling: Air

Cutting height adjustment: 25-75 mm

Standard wheels: Yes

Frame:THEiron

Assisted steering:Sthe

Maximum recommended surface area: 1400 sq m

Chassis steel: Enamelled

Power supply type: By explosion

Gearbox type: Mechanical

Blade Type: Standard

Engine type: 4 stroke

Wheel type: Front pivots

CODE:98920
