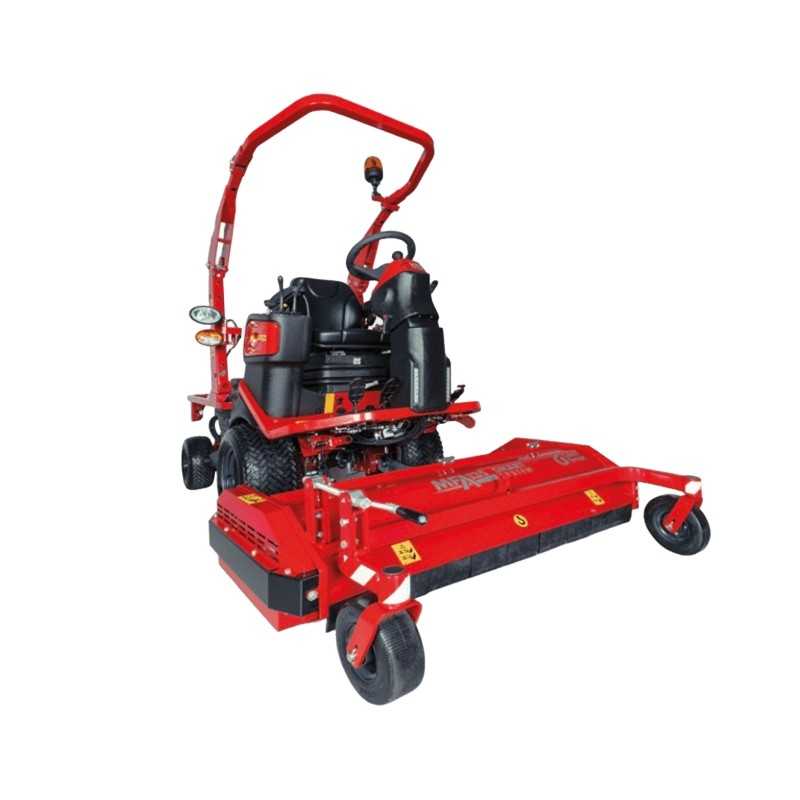

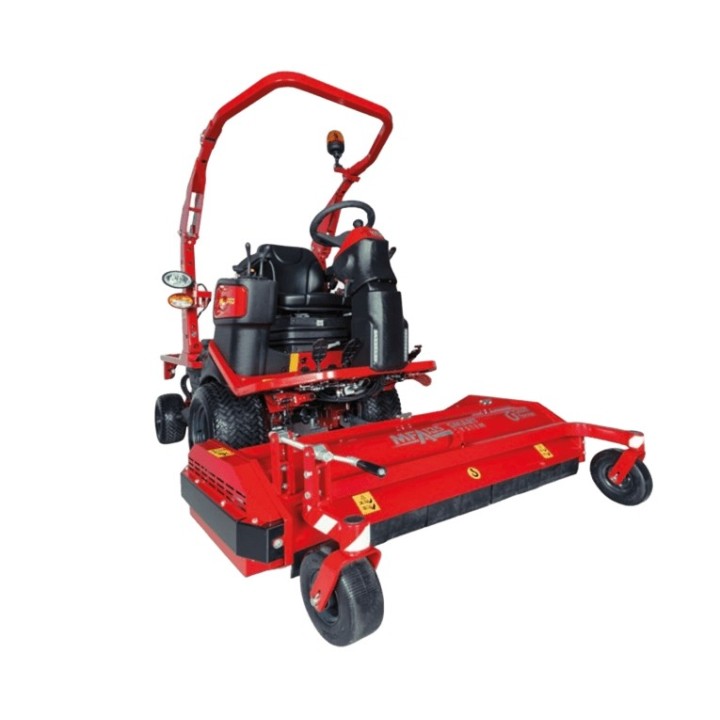

PROFESSIONAL TRACTOR LAWN MOWER

GIANNI FERRARI SR 280DW XPRO

TECHNICAL CHARACTERISTICS

MOTOR

Manufacturer: Kubota

Model: D1105-E4

Power Source: Diesel

Emissions: Stage V

Cylinders: 3

Power: 19.2 kW

Displacement: 1123 cc

Power: 26 HP

Cooling: Liquid

Fuel tank capacity: 30 liters

TRANSMISSION

Transmission type: Hydrostatic transmission

Forward speed: 15 km/h

Forward-reverse: Double pedal operation

Traction control: HTC system

Drive Wheels: 4WD

Wheel drive: Axial piston pump with displacement

variable. Piston engine on axle

front with reduction gear. Engines

orbital on rear wheels.

Power take-off: Mechanical with cardan shaft,

push button insertion

Auxiliary circuit: Standard auxiliary hydraulic outlets

Brakes: Hydrostatic service brake. Brake

disc parking brake on axle

front

Steering: Power steering, steering

on the rear spoke wheels

reduced

COLLECTION SYSTEM

Collection type: With integrated loading turbine

deactivatable

Collection basket: Made of polyethylene. Removable net for

cleaning. Full load indicator.

Motorized distributor.

Basket capacity: 800 litres

Elevator: Hydraulic

Maximum height of

emptying: 205 cm

DIMENSIONS AND WEIGHTS

Front wheels: 23x10.50-12

Rear wheels: 16x7.50- 8

Weight (without equipment): 950 kg

ROAD APPROVAL KIT

INCLUDED (95298000000)

MACHINE CODE:9595604000000

LAWN MOWER CODE:98.00.00.0067
