TRACTOR LAWN MOWER

PROFESSIONAL RIDER

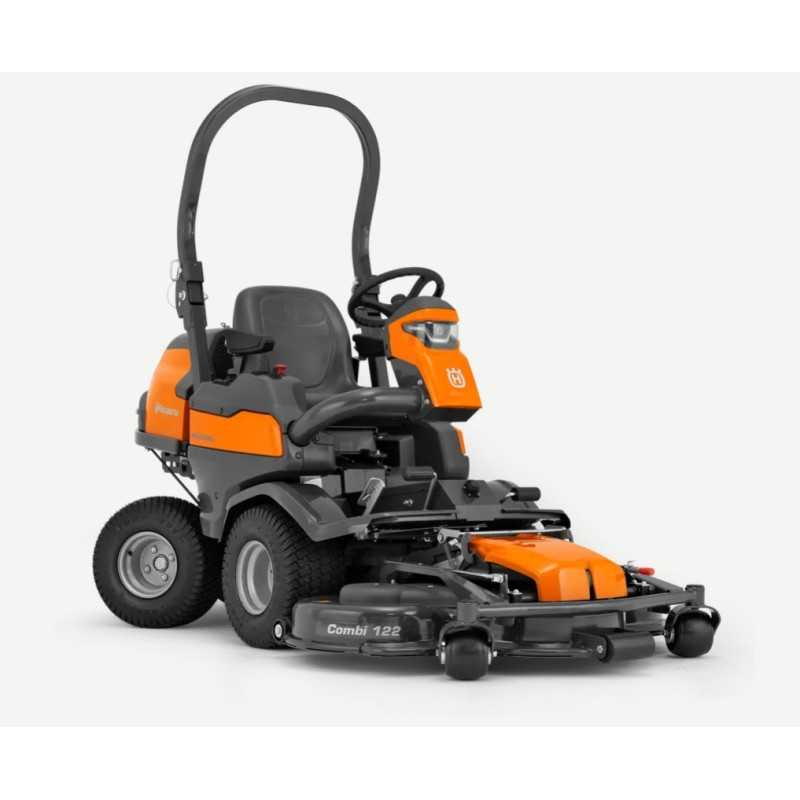

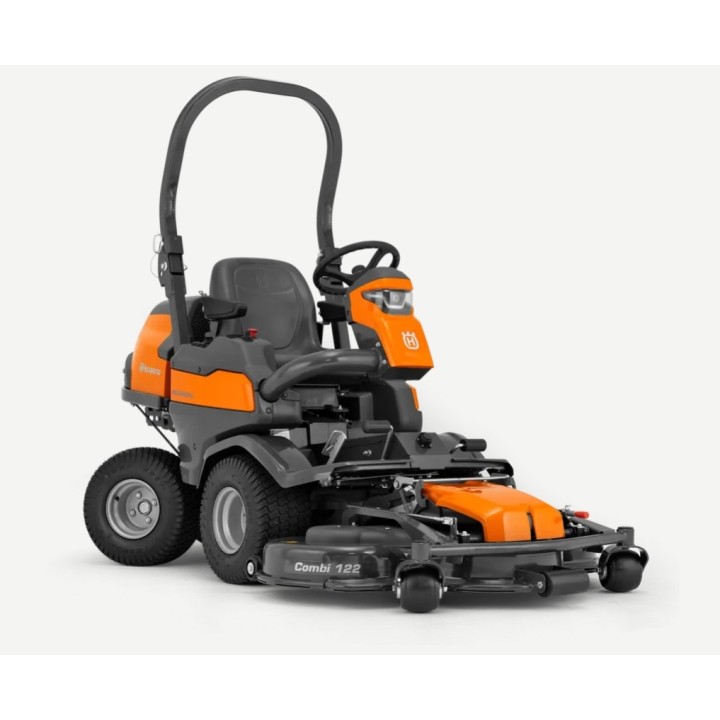

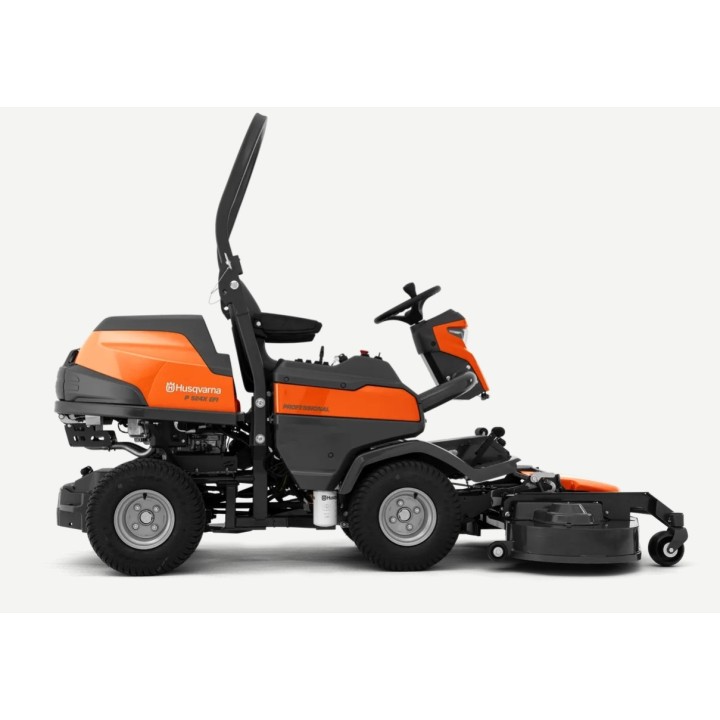

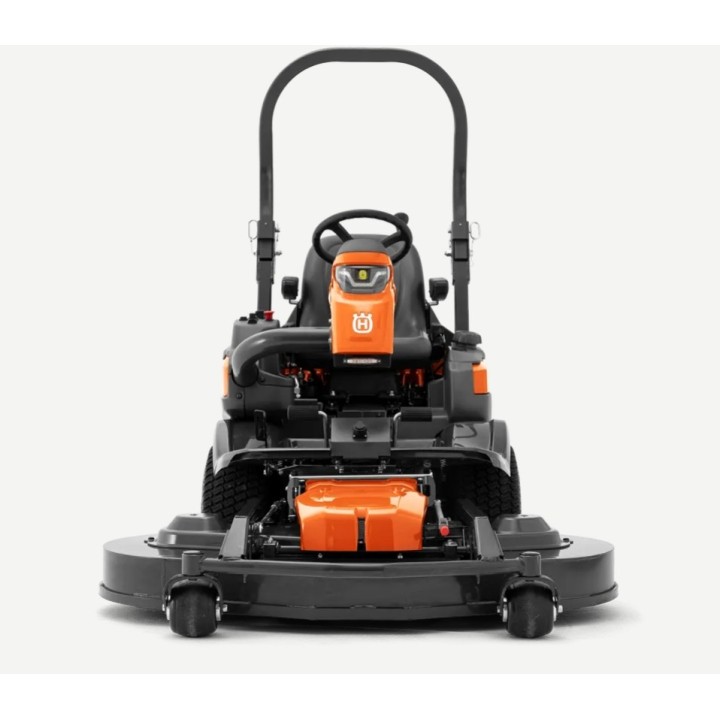

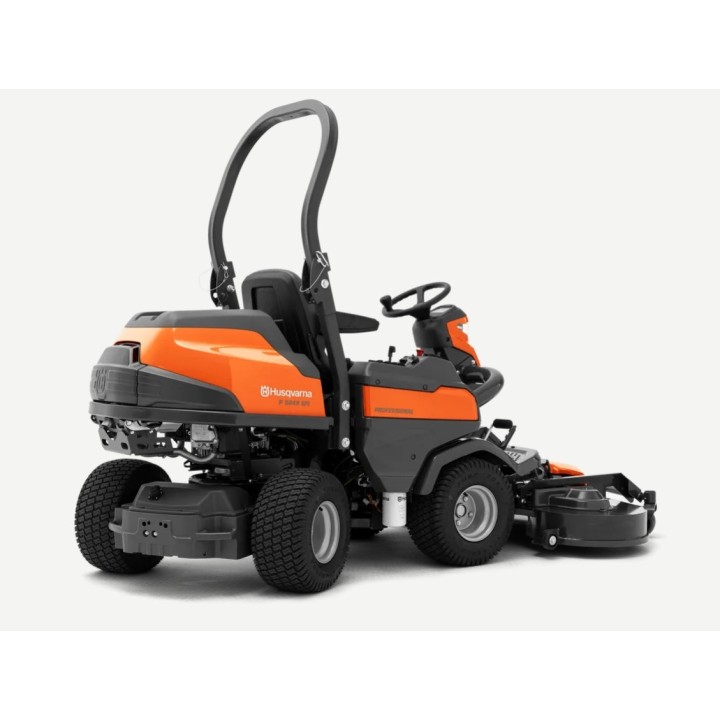

HUSQVARNA P 524X EFI

Husqvarna P 524X EFI is a ride-on mower with a cutting deck

front cutting, designed for professional use.

Compact and versatile, it is equipped with steering

articulated, all-wheel drive and engine

Kawasaki with electronic injection

for more power.

Ideal for lawn care companies, clubs

sportsmen or contractors who

they want a handy solution

for year-round work in complex areas.

Like all models in the 500 series, it comes

Supplied without cutting plate, but is suitable for plates

high capacity cutting up to 137 cm.

Prepared for the installation of accessories

that require electrical control. The electrical kit

front is factory installed.

TECHNICAL SPECIFICATIONS

Fuel type: Petrol

Net power at preset rpm: 15.6 kW

Net power at preset rpm: 3,000 rpm

Engine brand: Kawasaki

Engine manufacturer: Kawasaki

Engine Name: FX Series V-Twin

Displacement: 726 cc

Cylinders: 2

Engine cooling: Air

Engine lubrication type: Full pressure with oil filter

Oil filter: Yes

Battery capacity: 24 Ah

Battery type: Lead/Acid

Battery pack weight: 7.2 kg

Battery Manufacturer: Global

Uncut circle: 50 cm

Cutting width, Min: 112 cm

Cutting width, Max: 137 cm

Cutting height, min: 25 mm

Cutting height, max: 100 mm

Blade engagement: Electromagnetic clutch

Tire size, front: 18x8.5-8

Tire size, rear: 18x8.5-8

Wheelbase: 100 cm

Ground clearance: 130 mm

Basic machine, length: 206 cm

Basic machine, width: 98 cm

Basic machine, height: 122 cm

Gross towable weight: 200 kg

Weight (excl. cutting unit): 437 kg

PTO (Power Take-Off): Belt Drive

Transmission type: Hydrostatic

Transmission manufacturer, rear: Kanzaki

Drive type: Double pedal operation

Forward speed, max: 13 km/h

Reverse speed, max: 9 km/h

Transmission manufacturer, front: Kanzaki

Transmission model, front: KTM 23LB

Transmission model, rear: KTM 23SB

Seat suspension: Yes

Seat type: Professional

Hour meter: Digital

Seat material: Vinyl

Seat back height: High

Folding seat: Yes

Steering wheel type: Professional

Parking brake, type: Disc

CUTTING PLATE

EXCLUDING

CODE:9706016-02 970601602

MN
