TRACTOR LAWN MOWER

FRONT BURST

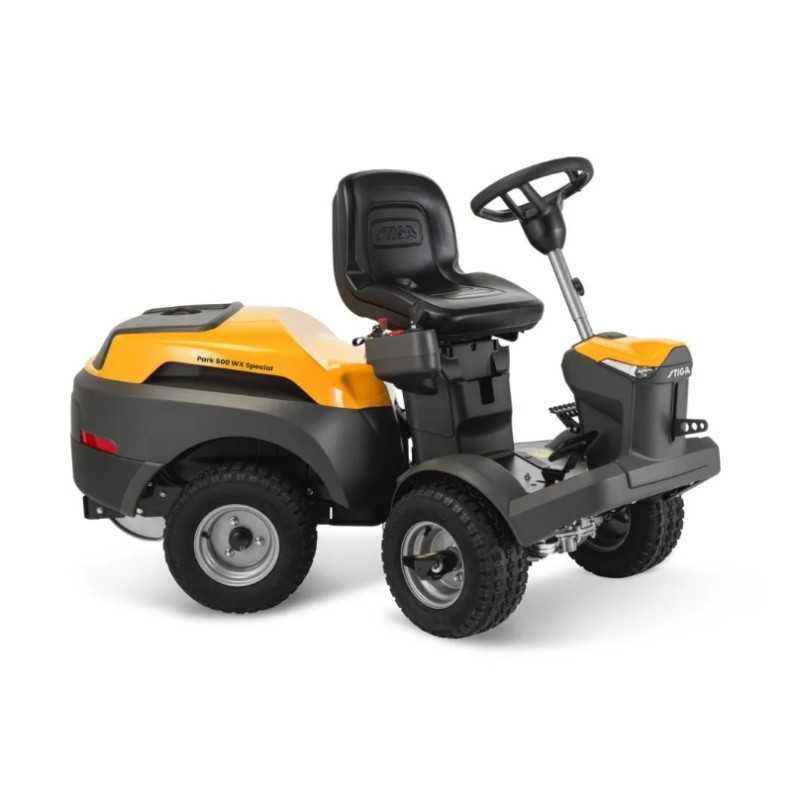

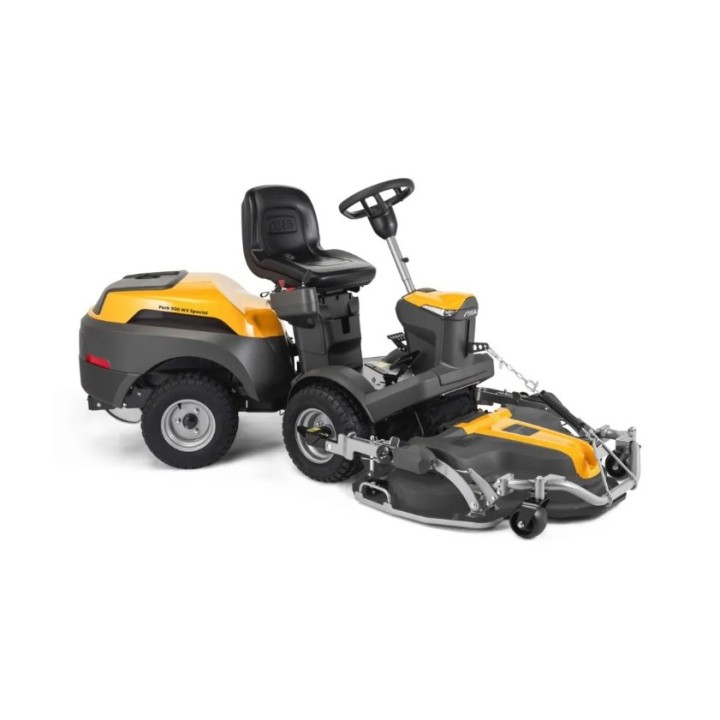

STIGA PARK 500 WX SPECIAL



The Park 500 WX Special is powered by a powerful

Honda GCV 530 two-cylinder engine,

one of the best known and most reliable in its category.

Each session

cutting becomes a pleasure thanks to

to its Tuff Torq all-wheel drive transmission,

which allows you to easily tackle rough terrain. Its

50:50 articulation with power steering

makes handling easy, even

in the presence of obstacles and narrow corners.

Furthermore, the cutting is quick and

efficient thanks to its lawnmower

front with a choice of cutting widths

ranging from 95 cm to 125 cm.



Cutting plate not included

(Combi 100 Q Plus recommended)



TECHNICAL SPECIFICATIONS

POWER

Power Source: Petrol

Power: 10.8 kW

Engine brand: Honda

Displacement: 530 cc

Battery voltage: 12 V

Cooling system: Air

Easy refill: Yes

Battery capacity: 30 Ah

Cutting area: 7500 m2

Engine model: GCV 530

Engine RPM: 3200 rpm

Choke (air): Manual

Fuel tank capacity: 12 L

Engine oil tank capacity: 1.15 L



CUTTING SYSTEM

Cutting system: Combi - change from Multiclip mulching and rear discharge

Plate Lift: Manual

Maintenance position: Yes

Cutting width: 95 - 125 cm

Cutting height adjustment: Electric



DRIVING SYSTEM

Traction: 4-wheel drive

Maximum forward speed: 10 km/h



TRANSMISSION

Transmission method: By pedal

Transmission: Hydrostatic



EQUIPMENT

Armrests: Optional

Steering wheel: Adjustable / with knob

Power steering: Hydraulic

Seat adjustment: Single lever

Dashboard: Yes – compact

Rear wheel size: 16x7.50-8

Lights: LED

PTO system - power take-off: Electromagnetic

Storage compartment: Pocket

Protective cover: Included

Steering: Articulated (50/50)

Seat type: Comfort with high back

Adjustable seat: No

Front wheel size: 16x7.50-8

Hour meter: No

Cruise control: No

Auxiliary hydraulic socket: No

Cup holder: No



KIT / TOOLS

Towing Kit: Included



OVERALL DIMENSIONS

Product weight: 219 kg

Product length: 1960 mm

Product height: 1236 mm

Product width: 864 mm



CODE:2F6130535/ST2
