PROFESSIONAL TRACTOR LAWN MOWER

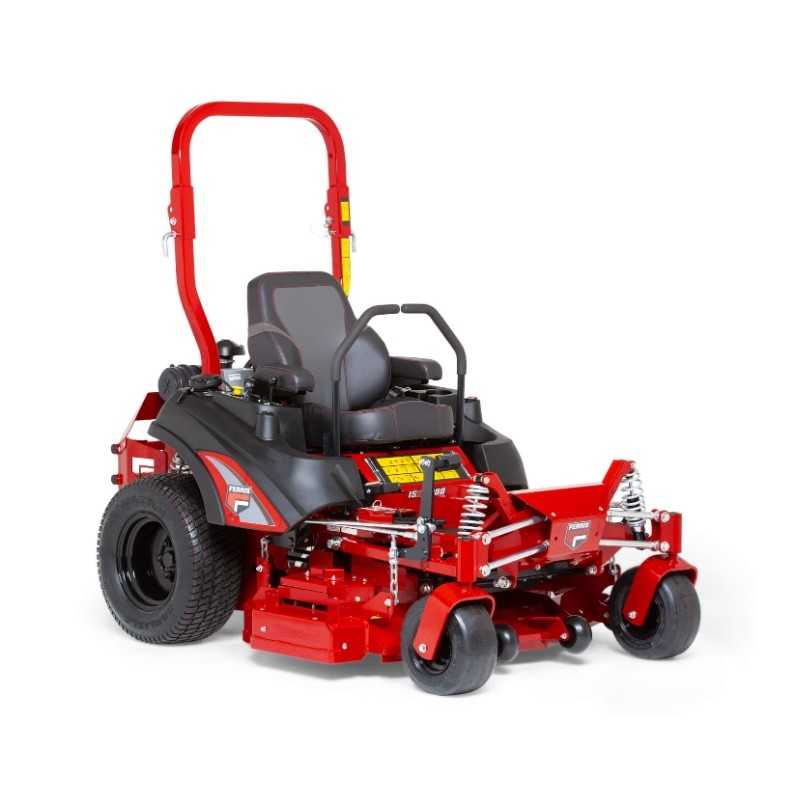

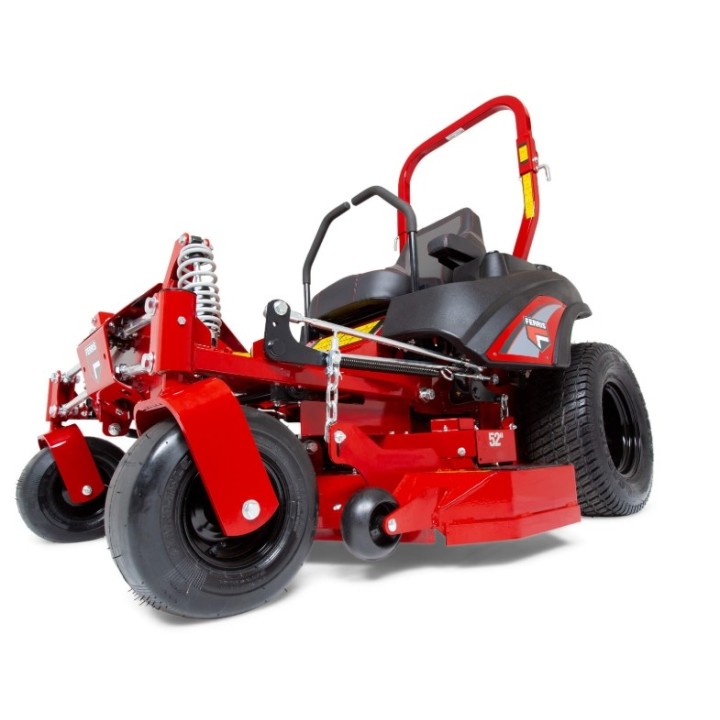

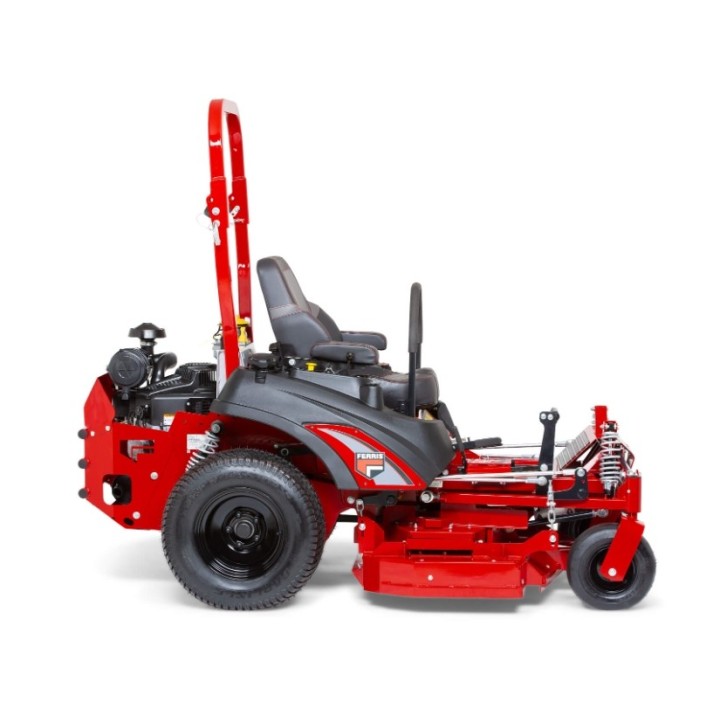

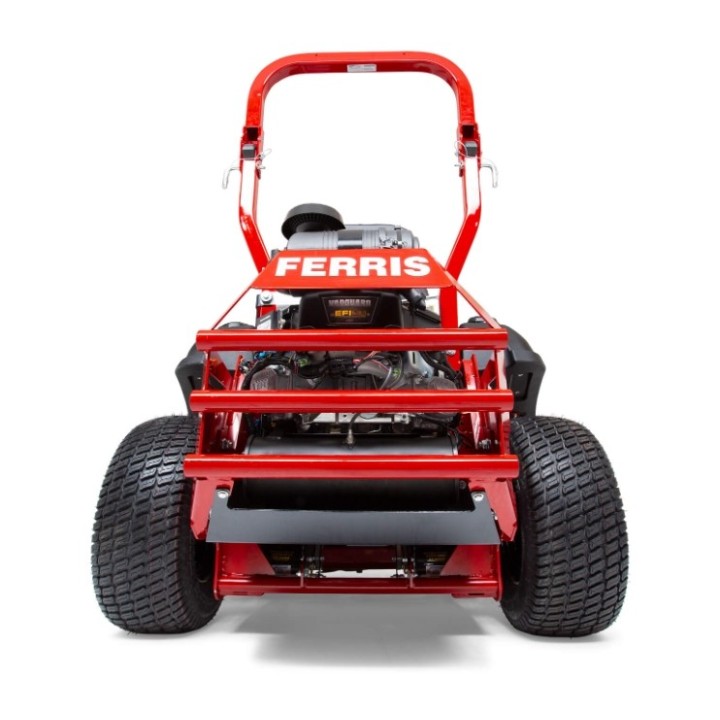

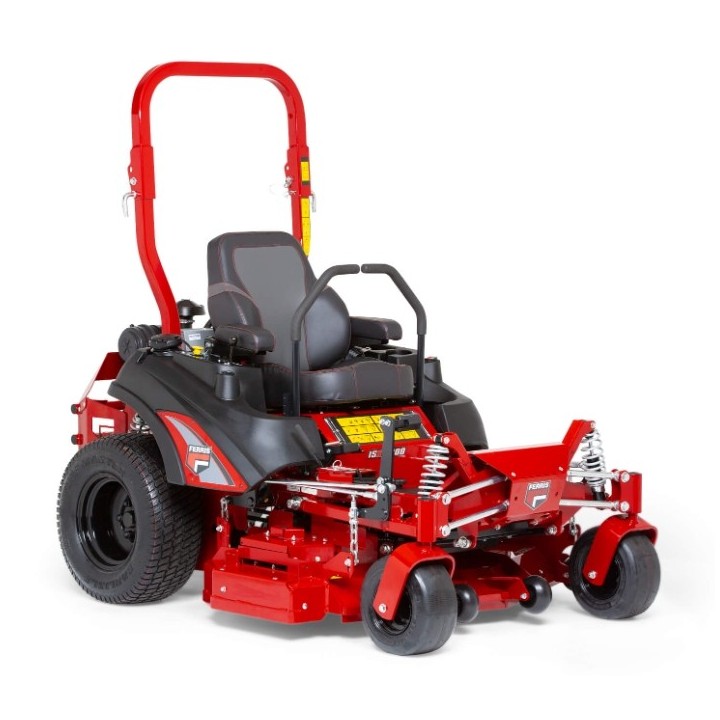

FERRIS ISX2200



Just one day on the zero turn ISX2200 is enough to discover how

Our patented suspension system will change the way you ride

to work: slowness and discomfort will give way to productivity and comfort.

The maneuvers become safer and more precise, and the

machine lasts a long time thanks to the

less stress transmitted.



The all-new and unique Forefront front suspension system

double wishbone on the front wheels adds greater

control and comfort in cutting operations.



Thanks to the lawnmower deck with iCD technology, cutting will be

always accurate and, thanks to the TRIPLE function, offers versatility

unique with professional results. This machine offers maximum performance.

for professionals or for the most demanding users.



TECHNICAL DATA

Model: ISX2200

Motor: Briggs & Stratton Vanguard EFI V-Twin with Oil Guard

Power HP (KW):28 HP

Displacement / Number of Cylinders:810 / 2

Start-up:ANDliterary

Cooling: Aof air

Model / Transmission: ZT4400 separate Hydro-Gear pumps

Drive axles: 34.93mm tapered with 5-bolt flange

Front Axle: Independent front suspension

ForeFront double-arm

Feed speed: 0 – 18.0 km/h

Reverse speed: 0 – 8.0 km/h

Parking brake / Safety circuit: Drum-like

Controls/Safety: Operator presence sensor with engine shutdown,

clutch safety switch, safety circuit

neutral and parking brake

Chassis:THEin steel

Tank capacity: 42 liters

Cutting width / Deck type: 132 cm / 52" – Triple iCD

Lawnmower deck: Thickness 3.4 mm, double bottom, side protections

and 9.5mm front, front protection,

overlapping and welded corners

Blades: 3

Positions / Cutting height: 3.8 – 12.7 cm., adjustable in 0.6 cm increments

Anti-scalp wheels:Si, 3

Inserting Blades:Cwith electromagnetic clutch

Mulching System:Pploughs and mulching blades

Blade pin supports: 201mm cast iron, 25.4mm pin with grease nipples

Plate lifting system: Pedal-operated, spring-loaded

Suspensions: Independent on 4 wheels

Rear wheel tires: 24 x 9.50 – 12 (4 canvases)

Front wheel tires: 13 x 6.50 – 6 (4 canvases)

ROPS Protective Structure:Si, with seat belts

Instrumentation: Fuel gauge, hour meter

Seat:SDeluxe building with armrests

Dry weight (Kg): 594



Accessories on request : Tow Bar, Service Kit for Briggs Vanguard EFI Oil Guard Engines,

Transmission Service Kit, Spare Wheels

puncture-proof front tires, Suspension seat,

Side discharge blade set, Jack lift
