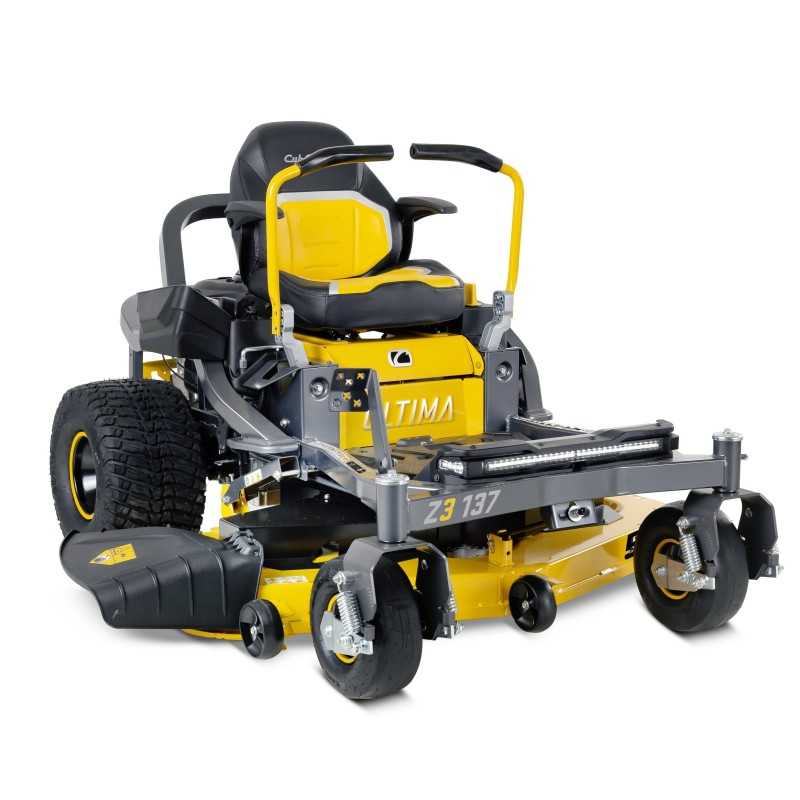

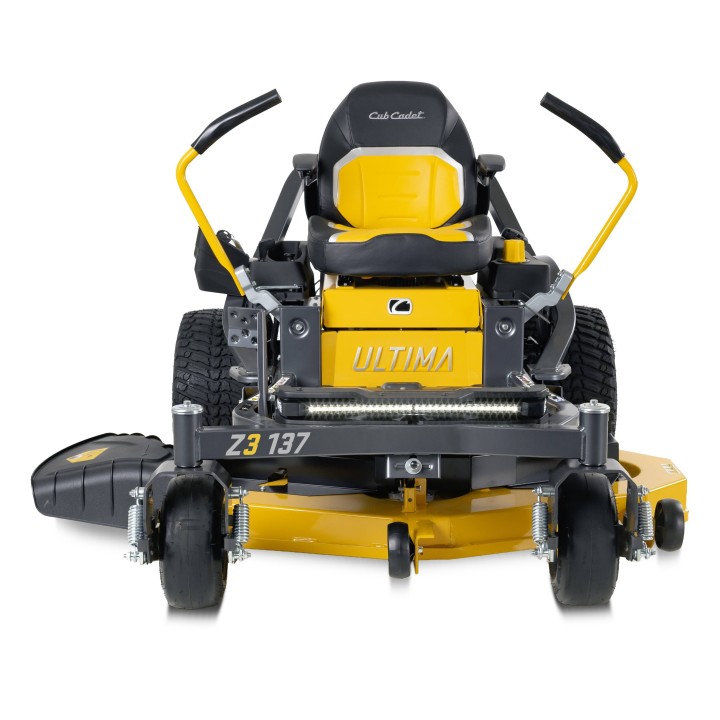

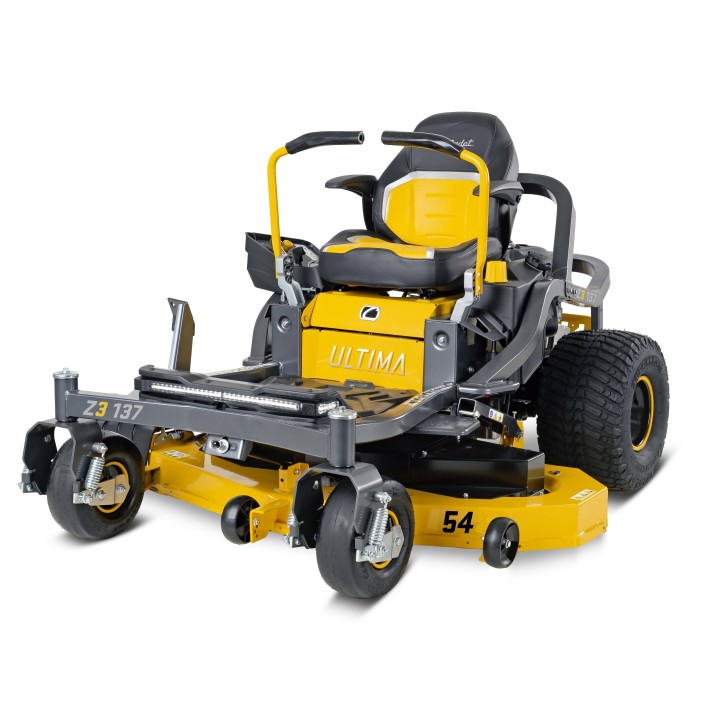

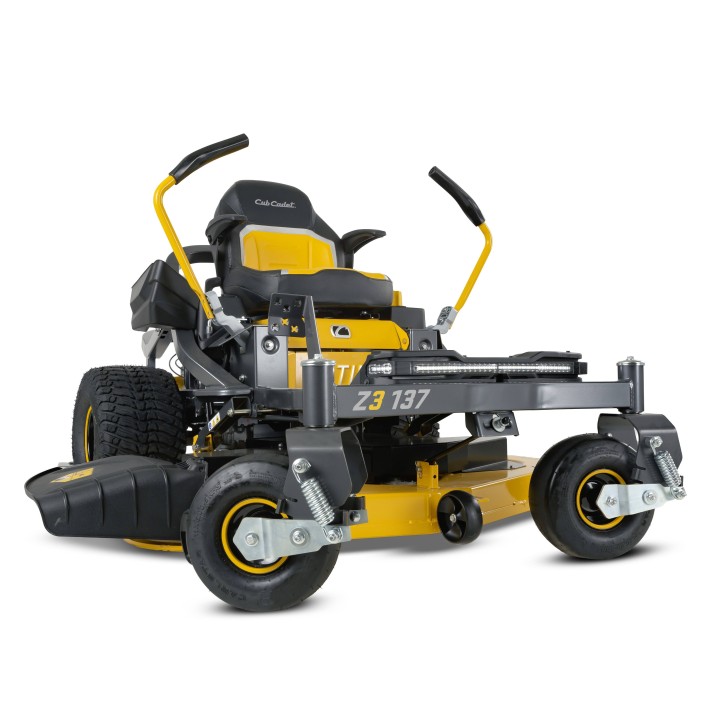

TRACTOR LAWN MOWER

WITH LEVERS

CUB CADET Z3 137

This high-end zero-turn mower combines

professional robustness, superior comfort

and advanced features. Thanks to the tubular steel frame,

to optimized traction, to lighting

integrated and with a modern and attractive design,

every cutting operation becomes simple, precise and

safe. Ideal for those seeking high performance

and maximum reliability in every situation.

TECHNICAL DATA

MOTOR

Engine: Kawasaki FR691V

Displacement: 726 cc

Rated power: 14.7 kW / 2850 min

cylinders: V-TWIN

Tank capacity: 13.25 L

Lubrication: Pressurized oil with external filter

TRANSMISSION

Transmission: Double hydro

Control: Lever

CUTTING SYSTEM

Approximate hourly surface area: 12,500 m2/h

Cutting width: 137 cm

Cutting height (min - max): 25 - 114 mm

Cutting plate: Reinforced welded

Number of blades: 3

Blade engagement: Electromagnetic

Plate height positions: 15 positions

Flat wheels: 2+ rollers

Wash nozzle / Mulching plug: Standard

COLLECTION

Basket: Optional

Deflector: Standard

CHASSIS

Front axle: Steel

Front bumper / rear bumper: Steel tubular

Turning radius: 0 cm

Wheel bearings: Bronzes

ELECTRICAL SYSTEM

Battery: 210cca AGM

Lights: LED bar

Hour meter and service indicator: Standard

Security system: Standard

COMFORT

Seat: Premium, high back with armrests

Seat adjustment: Quick adjustment lever

Steering wheel: 2 adjustment levers with soft-grip coating

Tool holder / cup holder / tow hook: Standard

Reverse cutting: Standard

DIMENSIONS

Dimensions: 203 / 164 / 117 cm

CODE:17AIECE3603
