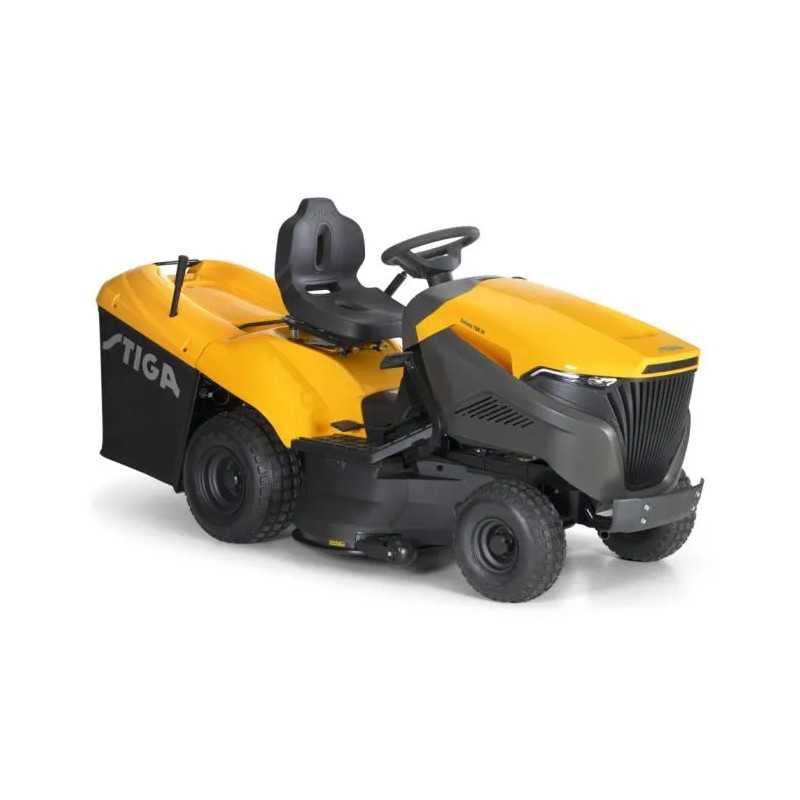

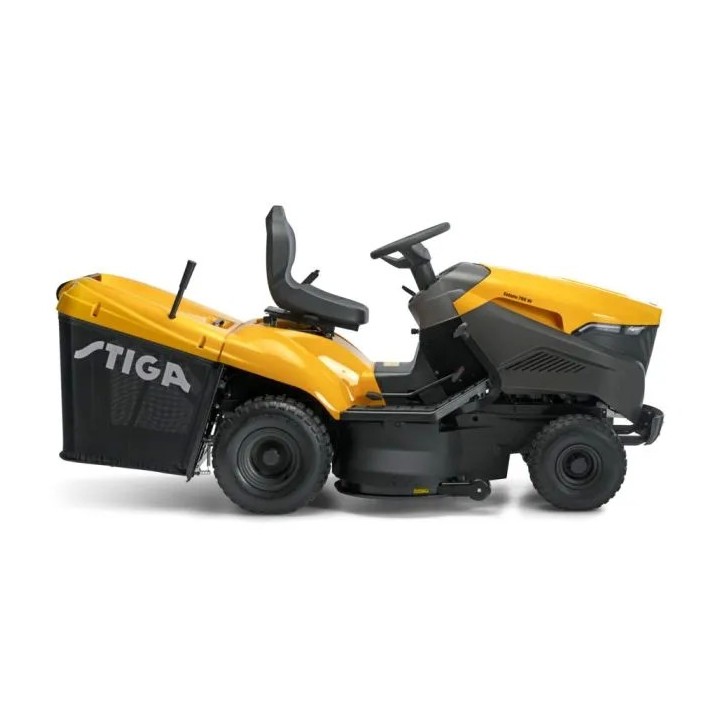

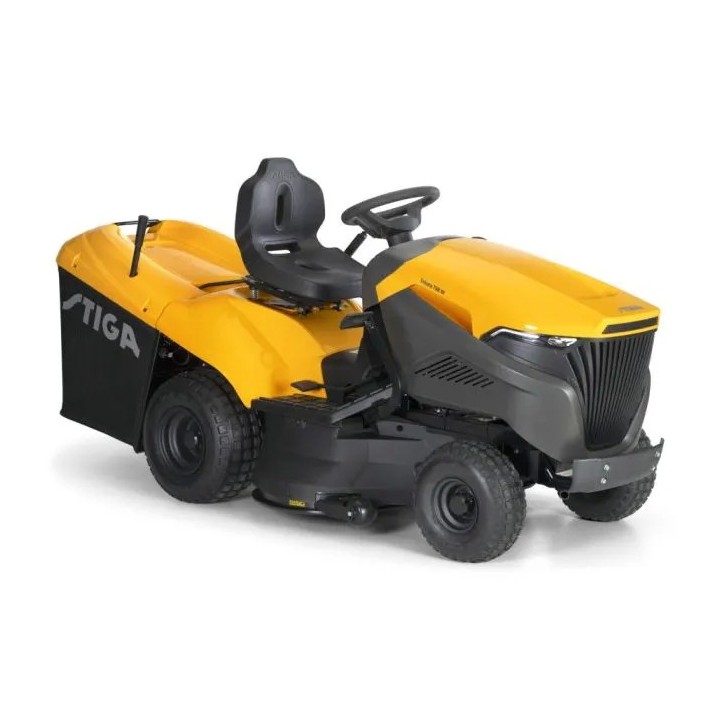

Tractor with internal combustion engine
STIGA
Summer 798 W

The power is provided by a ST 600 Twin Powered by STIGA 586 cc single cylinder twin engine,
which offers impressive torque, reduced vibration, excellent fuel economy and a
low emission operation.

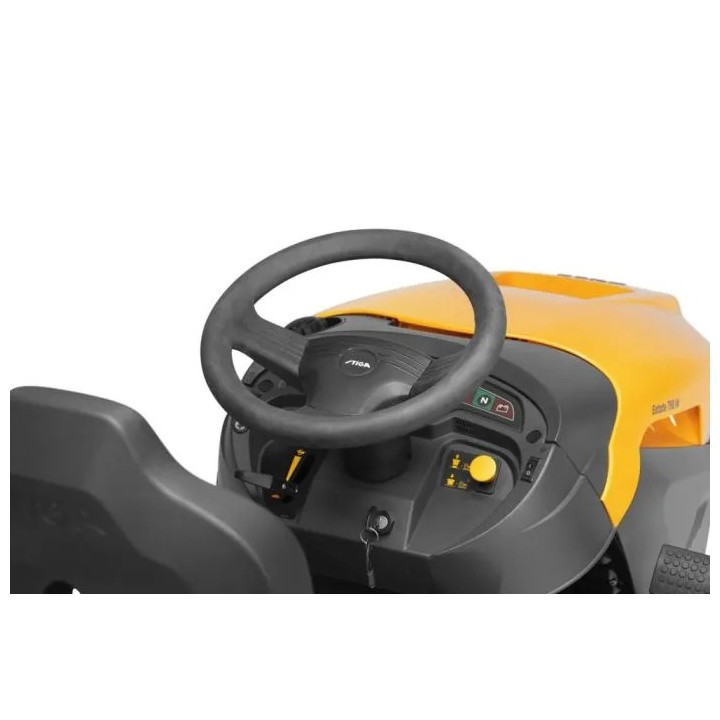

The Estate 798W model offers excellent driving comfort: adjustable seat and steering wheel with grip
Soft contribute to driving pleasure.
The tractor rests on a robust cast-iron front axle that will not have problems to meet the requirements
regular and intensive use on difficult terrain; in addition, the tractor is equipped with a dashboard with 6 LEDs
and a multi-functional display that clearly displays important information about the status of the tractor.
The Estate 798W is a harvester equipped with a 300 litre bag.
Infinitely increasing hydrostatic drive optimises manoeuvrability and facilitates safe work
around obstacles, while the washing system facilitates the smooth removal of corrosive debris and
Limiting performance from the bottom of the 98 cm reinforced two-blade cutting plate.
Mulching plug, tow hook and charger included.

TECHNICAL DATA:
Power
Fuel: Petrol
Battery capacity: 18 Ah
Power: 10.8 kW
Engine: ST 600 Twin Powered by STIGA
Cylinder capacity: 586 cc
RPM engine: 2600 rpm
Battery voltage: 12 V
Choke (air): Manual
Cooling system: Air
Fuel tank capacity: 8 L
Cutting area: 7000 sqm
Cut
Cutting width: 98 cm
Reverse cut: Yes
Blade rotation: Asynchronous
Cutting height adjustment: Manual with levers
Cutting height positions: 7 positions
Cutting heights: 30 - 90 mm
Number of blades: 2
Type of blade: Fin
Additional cutting system: Rear discharge, mulching multiclip
Blade type: Electric
Transmission
Traction: Rear wheel drive
Transmission method: Via pedal
Transmission: Hydrostatic
Equipment
Emptying the collection bag: Manual
Bag capacity: 300 L
Steering wheel: STIGA ergonomic + soft grip

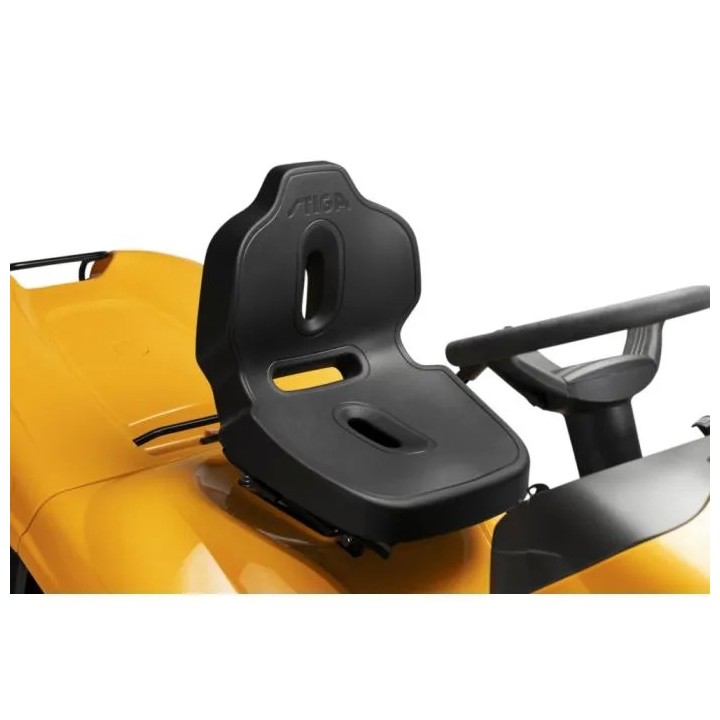

Seat type: STIGA new comfort
Seat adjustment: Single lever
Dashboard: Yes with 6 LEDs
Dimension front wheels: 15x6.00-6
Rear wheel size: 18x8.50-8
Bumper: Yes
Water hose connection: Yes
Collection bag model: Fabric
Cup holder: No
Pivoting front axle: Yes
Anti-scalp wheels: 2
Safety system: Seat with safety switch
Tools
Mulching kit: Included
Battery charger: Included
Towing kit: Included
Dimensions
Product length: 2418 mm
Product width: 1050 mm
Product height: 1070 mm
Product weight: 218 kg

ORIGINAL CODE: 2T0830481/ST1
