Tractor with internal combustion engine
STIGA

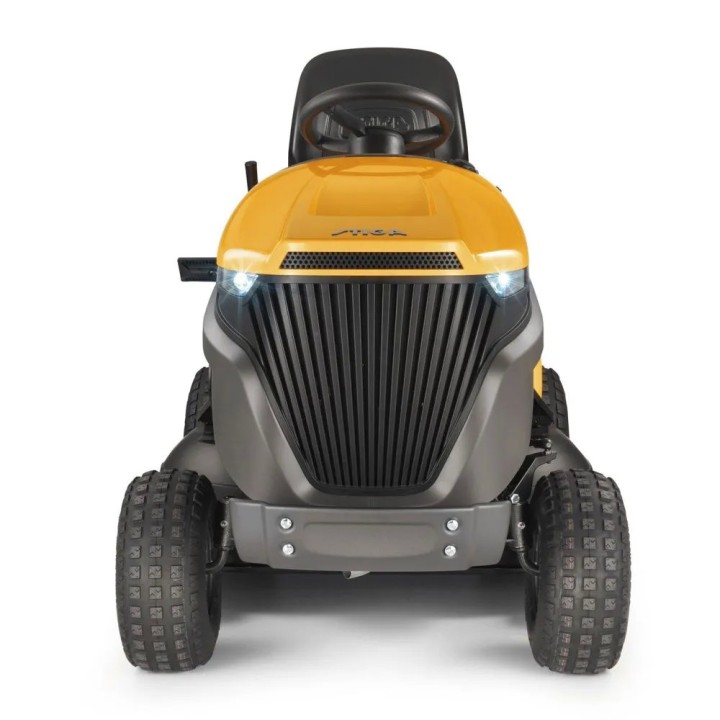

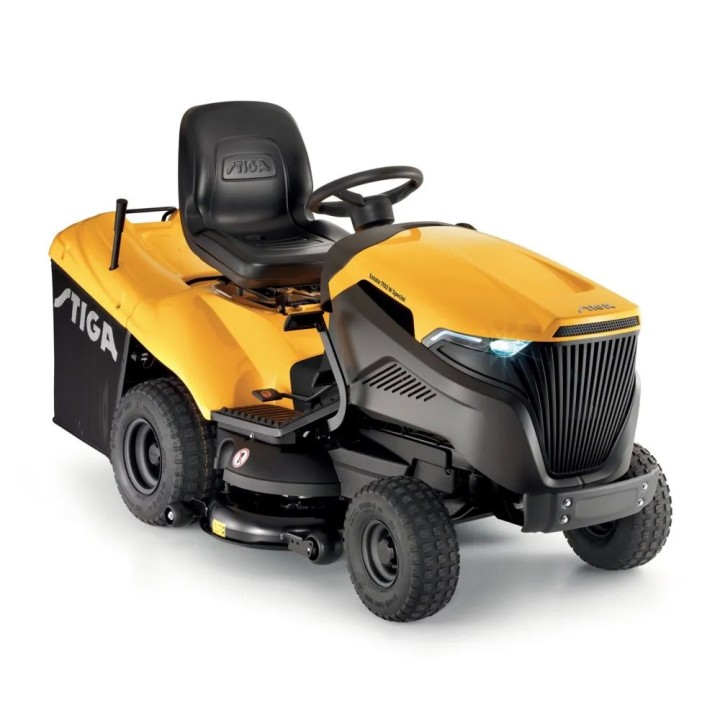

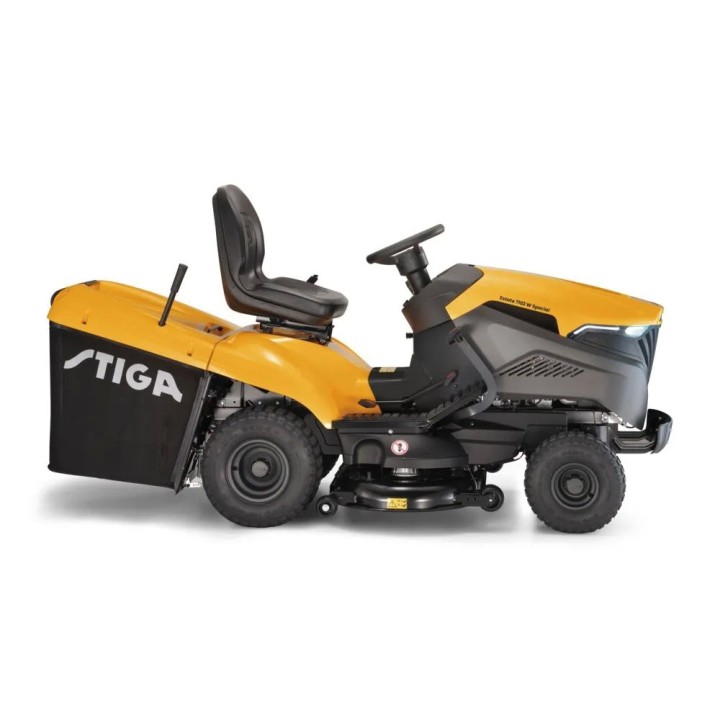

Summer 7102 W Special

The power is provided by a twin-cylinder 688 cc Honda GXV 630 engine, which offers a couple
impressive, reduced vibration, excellent fuel economy and low
low emissions.

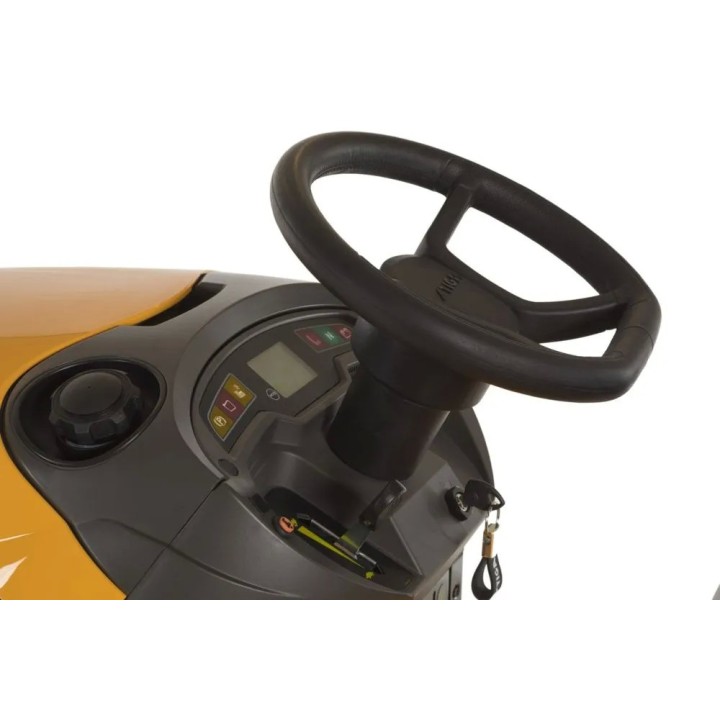

The Estate 7102 W Special offers excellent driving comfort: adjustable seat and steering wheel
with soft grip contribute to the driving pleasure.
The tractor rests on a sturdy cast-iron front axle which will not have problems coping with
the need for regular and intensive use of the tractor on difficult terrain; in addition, the tractor is
Equipped with a dashboard with 6 LEDs and a multi-functional display that clearly displays the
Important information about the tractor’s condition.
The Estate 7102 W Special is a harvester equipped with a 300-litre bag.
The infinitely increasing hydrostatic transmission - controlled by a pedal - optimizes manoeuvrability
and facilitates safe work around obstacles; while a washing connection facilitates the
Hassle-free removal of corrosive debris and limiting performance from the bottom of the plate
Reinforced cut with two blades of 102 cm.
Mulching plug, tow hook and charger included.

TECHNICAL DATA:
Power
Fuel: Petrol
Battery capacity: 18 Ah
Power: 12.6 kW
Engine: Honda GXV 630
Cylinder capacity: 688 cc
RPM engine: 2500 rpm
Battery voltage: 12 V
Choke (air): Manual
Cooling system: Air
Fuel tank capacity: 8 L
Cutting area: 8000 sqm
Cut
Cutting width: 102 cm
Reverse cut: Yes
Blade rotation: Synchronised
Cutting height adjustment: Manual with levers
Cutting height positions: 7 positions
Cutting heights: 30 - 90 mm
Number of blades: 2
Additional cutting system: Rear discharge, mulching multiclip
Blade type: Electric
Transmission
Traction: Rear wheel drive
Transmission method: Via pedal
Transmission: Hydrostatic
Equipment
Emptying the collection bag: Manual
Bag capacity: 300 L
Steering wheel: STIGA premium + soft grip
Seat type: STIGA comfort plus
Seat adjustment: Single lever
Dashboard: Yes with multifunction display
Dimension front wheels: 15x6.00-6
Rear wheel size: 18x8.50-8
Cast iron front axle: Yes
Bumper: Yes
Water hose connection: Yes
Collection bag model: Fabric
Pivoting front axle: Yes
Anti-scalp wheels: 4
Safety system: Seat with safety switch
Tools
Mulching kit: Included
Battery charger: Included
Towing kit: Included
Dimensions
Product length: 2418 mm
Product width: 1050 mm
Product height: 1070 mm
Product weight: 241 kg

ORIGINAL CODE: 2T0970381/ST1
