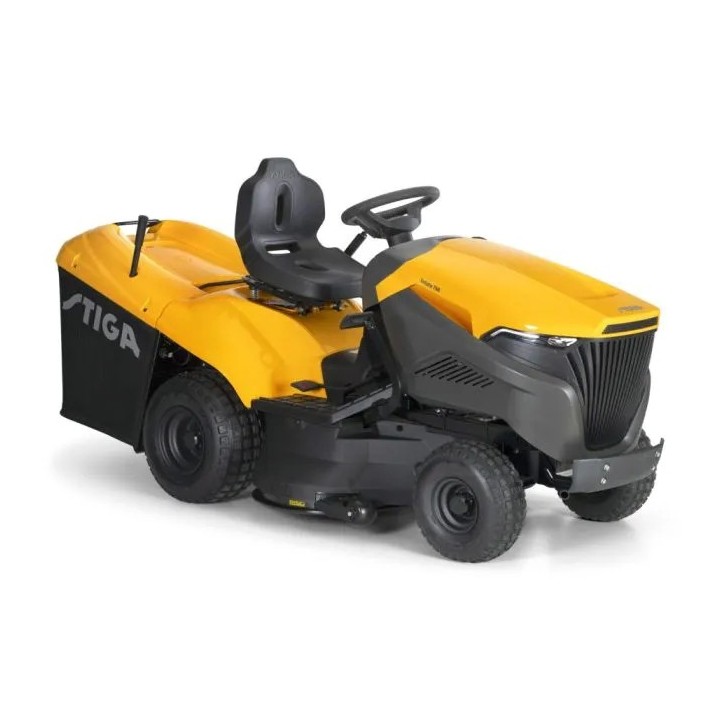

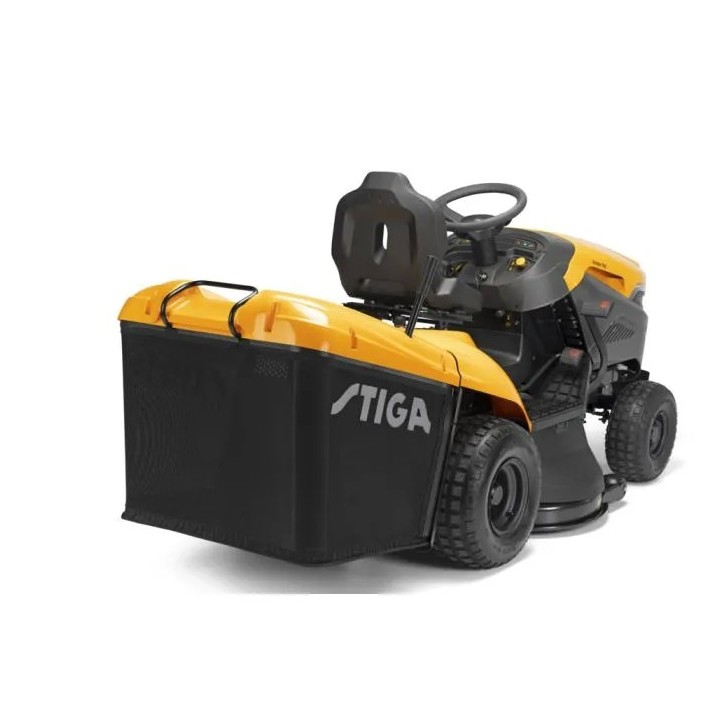

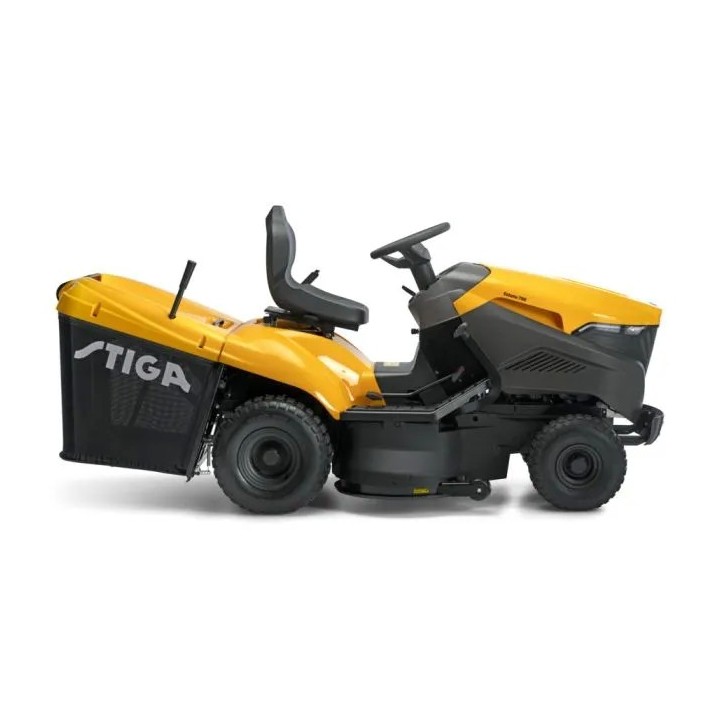

Tractor with internal combustion engine
STIGA
Summer 798

The power is provided by a 452 cc ST 500 Powered by STIGA single cylinder engine, which
offers impressive torque, reduced vibration, excellent fuel economy and
low emission operation.
The Estate 798 tractor offers excellent driving comfort: adjustable seat and steering wheel with
Soft grip contribute to driving pleasure.
The tractor rests on a sturdy cast-iron front axle that will not have problems to cope with
the requirements of regular and intensive use of the tractor on difficult terrain; in addition, the tractor
is equipped with a dashboard with 6 LEDs and a multi-functional display that clearly displays the
Important information about the tractor’s condition.
The Estate 798 is a harvesting machine equipped with a 300-liter collection bag.
The infinite increment hydrostatic transmission optimises manoeuvrability and facilitates work in
safety around obstacles, while the washing system facilitates easy removal
of corrosive and performance-limiting debris from the bottom of the two
blades of 98 cm.
Mulching plug, tow hook and charger included.

TECHNICAL DATA:
Power
Fuel: Petrol
Battery capacity: 18 Ah
Power: 8.2 kW
Engine: ST 500 Powered by STIGA
Cylinder capacity: 452 cc
Engine RPM: 2700 rpm
Battery voltage: 12 V
Choke (air): Manualcooling system: Air
Fuel tank capacity: 8 L
Cutting area: 6500 sqm
Cut
Cutting width: 98 cm
Reverse cut: Yes
Blade rotation: Asynchronous
Cutting height adjustment: Manual with levers
Cutting height positions: 7 positions
Cutting heights: 30 - 90 mm
Number of blades: 2
Type of blade: Fin
Additional cutting system: Rear discharge, mulching multiclip
Blade type: Electric
Transmission
Traction: Rear wheel drive
Transmission method: Via pedal
Transmission: Hydrostatic
Equipment
Bag capacity: 300 L
Steering wheel: STIGA ergonomic + soft grip
Seat type: STIGA new comfort
Dashboard: Yes with 6 LEDs
Dimension front wheels: 15x6.00-6
Rear wheel size: 18x8.50-8
Bumper: Yes
Water hose connection: Yes
Collection bag model: Fabric
Pivoting front axle: Yes
Anti-scalp wheels: 2
Safety system: Seat with safety switch
Tools
Mulching kit: Included
Battery charger: Included
Towing kit: Included
Dimensions
Product length: 2418 mm
Product width: 1050 mm
Product height: 1070 mm
Product weight: 215 kg

ORIGINAL CODE: 2T0810481/ST1
