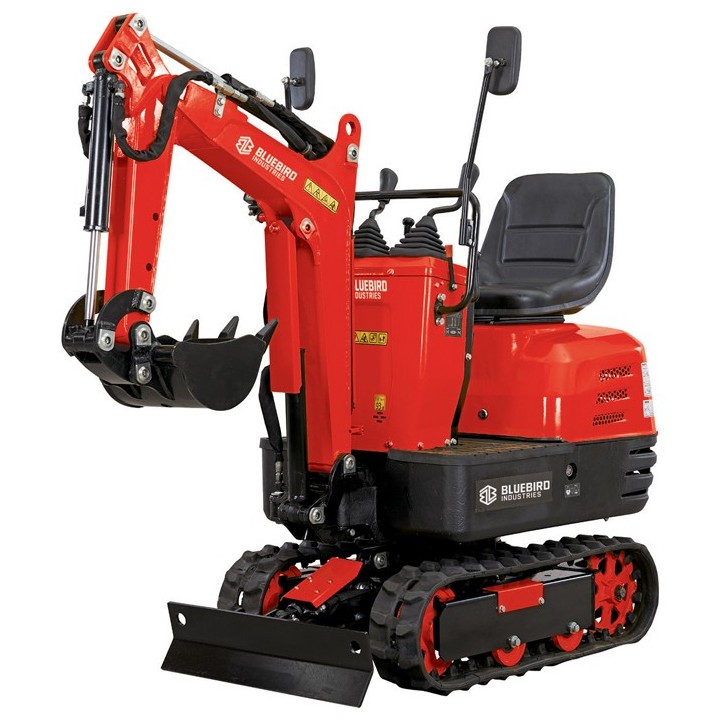

Mini excavator
MEX 600
BLUEBIRD

The MEX 600 mini excavator is a compact and versatile machine designed for digging,
Lifting and moving materials in confined or difficult-to-reach spaces.
The model that Blue Bird Industries is putting in is an efficient compact machine suitable for carrying out
Excavation work with ease. With an operating weight of 562 kg, it is able to handle a wide
range of tasks. The width of the bucket is 290 mm with a capacity of 0.011 square meters, ensuring
a good capacity of collecting materials. The powerful 306 cc petrol engine provides
power required for excavation activities. The start is by key, offering easy
Engine start and shut down. In addition, there is also a RECOIL starting system for
Ensure greater reliability.
The machine offers a speed of 2.1 km/h and a traction force of 4.36 kN, allowing
a smooth movement and good maneuverability. The oscillation speed is 7.5 rpm, while the degree of
of a maximum gradient of 25 degrees, allowing effective management even on sloping terrain.
The machine is characterized by a system of rubber tracks with a width of 150 mm which
give stability and mobility on different grounds. This feature allows you to operate on surfaces
uneven or rough terrain with good grip. In addition, the articulated mechanical arm allows
to reach narrow areas and dig at variable depths.
The control station has intuitive and accessible controls, as well as safety devices such as
Roll-over protection and parking brake systems with a hydraulic lock for increased
Safety during parking and parking operations.

TECHNICAL DATA:
Operating weight: 562 kg
Capacity of the bucket: 0.011mq
Digging force (arm): 4.75 kN (485 kgf)
Digging force (bucket): 8 kN (815 kgf)
Engine: 306cc, petrol
Start: key, on and off + recoil
Speed: 2.1 km/h
Tensile force: 4.36 kN
Oscillation speed: 7.5 rpm
Grade gradient: 25 degrees
Type of movement: Rubber tracks
Parking brake: Hydraulic block

ORIGINAL CODE: 888140
