Tractor with internal combustion engine
CASTELGARDEN

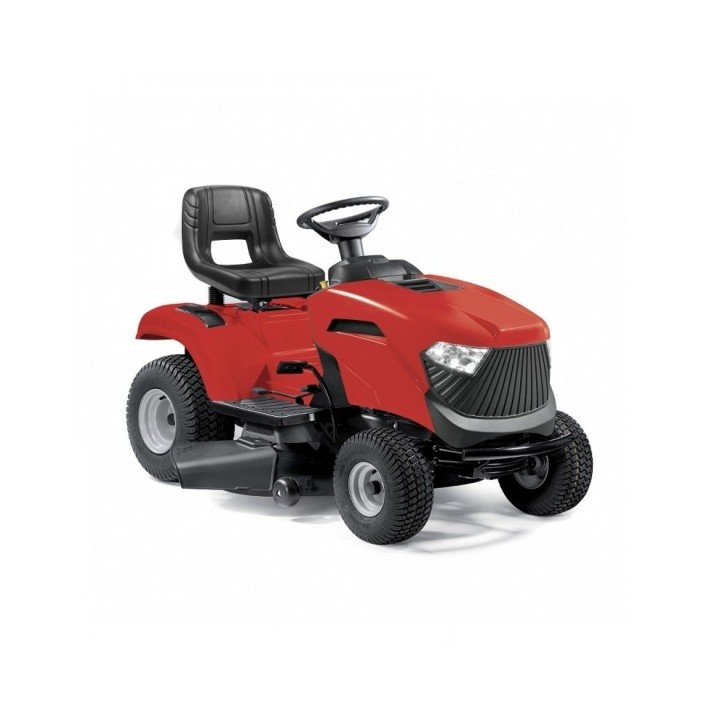

SD 98 HD
engine ST 450 - 432 cc

The Castelgarden SD 98 HD lawn mower is designed to handle the cutting of large quantities
grass and dump it sideways. This sturdy mower is equipped with a
STIGA single cylinder. The hydrostatic pedal drive makes driving comfortable and fun,
allowing you to better manage the speed. The cutting plate of 98 cm is equipped with two blades,
that can be activated by pressing a button, and anti-scalp wheels. The cutting height is
Adjustable in 7 different positions, between 25 and 80 mm, to better adapt to the conditions of the grass.
The ergonomic seat ensures maximum comfort.
The mulching kit and battery charger are sold separately.

TECHNICAL DATA:
Power
Battery capacity: 18 Ah
Power: 7.1 kW
Fuel: Petrol
Engine: ST 450 Powered by STIGA
Engine capacity: 432 cc
Battery voltage: 12 V
Choke (air): Manual
Cooling system: Air
Fuel tank capacity: 6 l
Recommended cutting area: 5000 sq m
Cut
Cutting width: 98 cm
Reverse cut: Yes
Blade rotation: asynchronous
Cutting height adjustment: Manual with levers
Cutting height positions: 7 positions
Cutting heights. 25 - 80 mm
Number of blades: 2
Blade type: Mulching
Additional cutting system: Mulching
Blade type: Electric
Transmission
Transmission method: Via pedal
Transmission: Hydrostatic
Traction: Rear wheel drive
Equipment
Steering wheel: Castelgarden ergonomic
Seat type: Castelgarden classic
Seat adjustment: Screws
Dashboard: No
Size front wheels: 15x6.00-6
Rear wheel size: 18x8.50-8
Dimensions
Product length: 1726 mm
Product width: 1200 mm
Product height: 1100 mm
Product weight: 161 kg

ORIGINAL CODE: 2T0620483/KLO
