Tractor with internal combustion engine

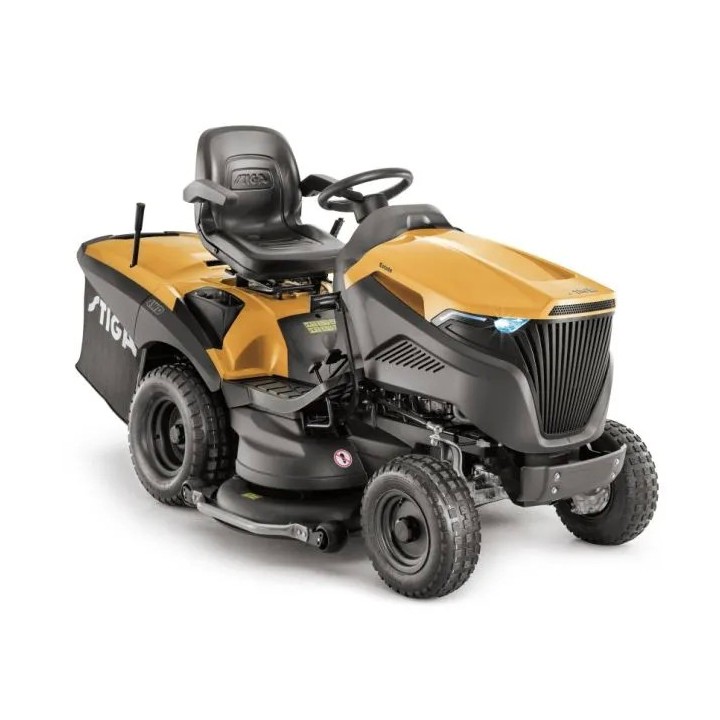

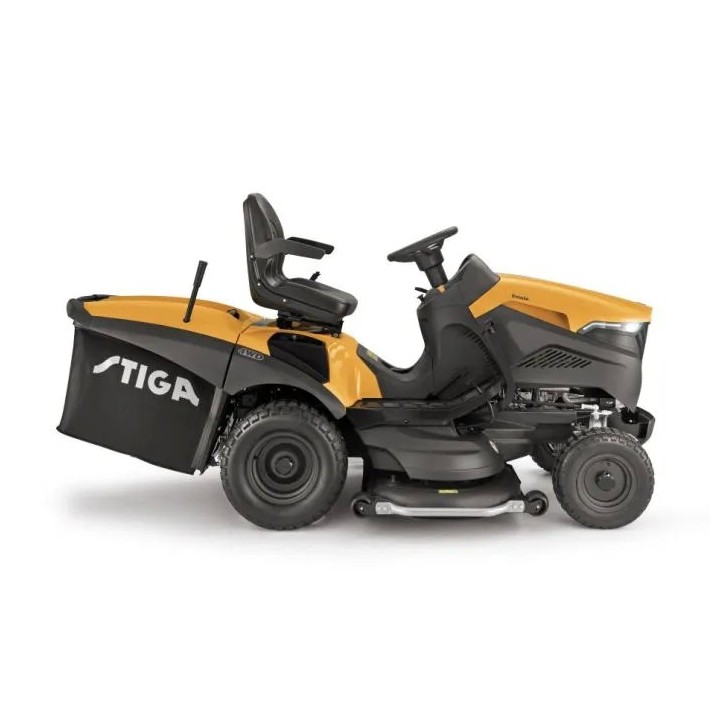

STIGA Estate 9122 WX

The STIGA Estate 9122 WX mower is an exceptional machine for cutting and harvesting
grass in green areas up to 9000 m2. Thanks to the large cutting plate of 122 cm and
integral, even facing the most extreme cutting conditions will not be a problem.
The heart of this car is a twin-cylinder engine Honda 690 GXV 688 cc, which guarantees
performance and maximum efficiency, thanks to the OHV technology, which reduces harmful emissions and
motor vibrations. Thanks to the hydrostatic pedal drive, manage speed and maneuvers
is really simple and convenient. The mower offers efficient and precise blades, activated by
A simple button, and adjustable up to 9 different heights, to best fit the conditions of the
grass and your cutting needs. The raised steering wheel and armrests make driving comfortable
and fun, while the innovative 5.5" smart display gives you useful information about the status of your machine
and on your work session, as well as the new STIGA Best Cutting Zone feature, which allows you to
To find the perfect combination of feed and cut speed.
Finally, this machine is extremely robust and safe thanks to its reinforced structure and the
Front bumper. Mulching plug included. Tow hook and charger sold separately.

TECHNICAL DATA:
Power
Battery capacity: 22 Ah
Power: 13.5 kW
Fuel: Petrol
Engine: GXV 690 Honda
Cylinder capacity: 688 cm3
Choke (air): Manual
Cooling system: Air
Fuel tank capacity: 10 L
Recommended cutting area: 9000 sq m
Cut
Cutting width: 122 cm
Reverse cut: Yes
Reinforced cutting plate: Yes
Blade rotation: Synchronised
Cutting height adjustment: Manual with knob
Cutting height positions: 9 positions
Cutting heights: 25 - 100 mm
Tracking of the cut height: Yes
Number of blades: 2
Additional cutting system:Rear discharge, mulching multiclip
Blade type: Electric
Transmission
Transmission method: Via pedal
Transmission: Hydrostatic
Equipment
Emptying of collection bag: Manual
Capacity of the collection bag: 360 L
Steering wheel: STIGA premium + soft grip
Seat type: STIGA comfort plus with armrests
Seat adjustment: Single lever
Dashboard: Yes, with colour display showing optimal cutting conditions
Front wheels size: 16x6.00-8
Rear wheels size. 20x10.00-10
Dimensions
Product length: 2620 mm
Product width: 1266 mm
Product height: 1200 mm
Product weight: 315 kg

ORIGINAL CODE: 2T1535381/ST2
