Tractor with internal combustion engine

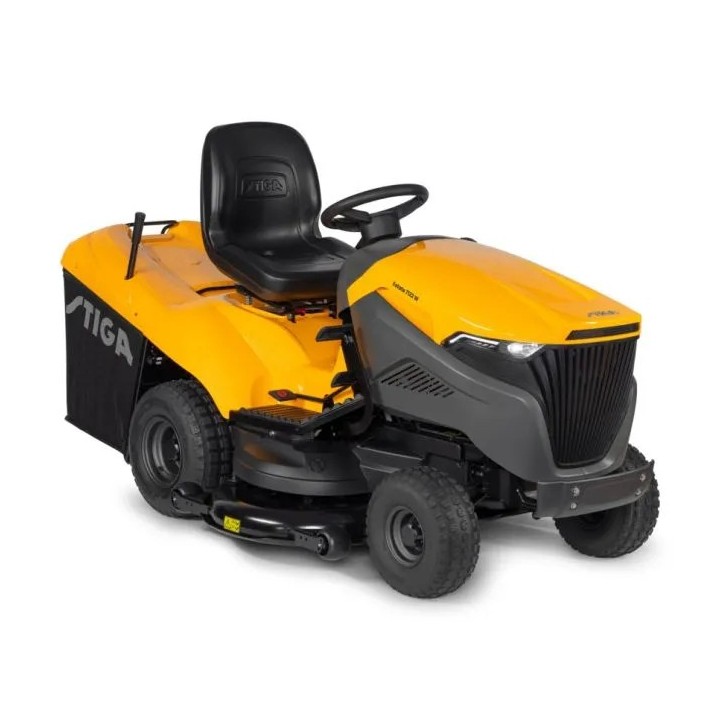

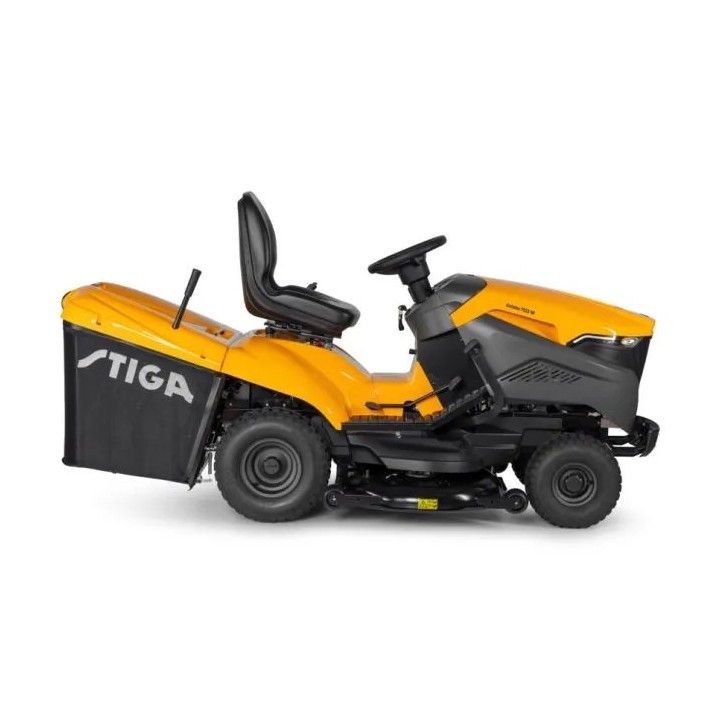

STIGA Summer 7122 W

The power is provided by a 635cc ST 650 Twin Powered by STIGA engine combining technology
OHV with a V-Twin cylinder arrangement, to maximize power and torque output, reducing
Minimising vibration and fuel consumption.
Thanks to the extra wide cutting plate of 122 cm and the double synchronized blades this machine will cover'
a large area in a short time and is able to harvest long, wet grass without the
The drain slide locks.
A 300 litre large collection bag will make emptying stops rare.
The Estate 7102 W benefits from a six-LED reading panel that shows all key operating indicators,
Including the transmission status, parking brake activation and battery level.
Its infinitely variable hydrostatic transmission that provides a smooth acceleration both forward
That in reverse, which in turn makes it easy to bypass obstacles and landscaping.
Offering excellent versatility, this tractor is equipped with seven pre-set cutting heights, designed to
to help you manage a wide range of grass lengths (the adjustment is from 30 to 90 mm).
 the 7122 W combines a soft-grip STIGA Premium steering wheel with adjustable seat Comfort
Plus and the electromagnetic blade engagement without effort. A robust front bumper protects the engine
in the event of an accidental impact.

TECHNICAL DATA:
Power
Battery capacity: 18 Ah
Power: 11.6 kW
Fuel: Petrol
Engine: ST 650 Twin Powered by STIGA
Cylinder capacity: 635 cm3
Choke (air): Manual
Cooling system: Air
Fuel tank capacity: 8 l
Recommended cutting area: 6000 sqm
Cut
Cutting width: 122 cm
Reverse cut: Yes
Blade rotation: Synchronised
Cutting height adjustment: Manual with levers
Cutting height positions: 7 positions
Cutting heights: 30 - 90 mm
Number of blades: 2
Additional cutting system: Rear discharge, mulching multiclip
Blade type: Electric
Transmission
Transmission method: Via pedal
Transmission: Hydrostatic
Equipment
Emptying of collection bag: Manual
Capacity of the bag: 300 L
Steering wheel: STIGA premium + soft grip
Seat type: STIGA comfort plus
Seat adjustment: Single lever
Dashboard: Yes with multifunction display
Size front wheels: 15x6.00-6
Rear wheel size: 18x8.50-8
Dimensions
Product length: 2418 mm
Product width: 1050 mm
Product height: 1070 mm
Product weight: 241 kg

ORIGINAL CODE: 2T1315481/ST1
