Tractor with internal combustion engine

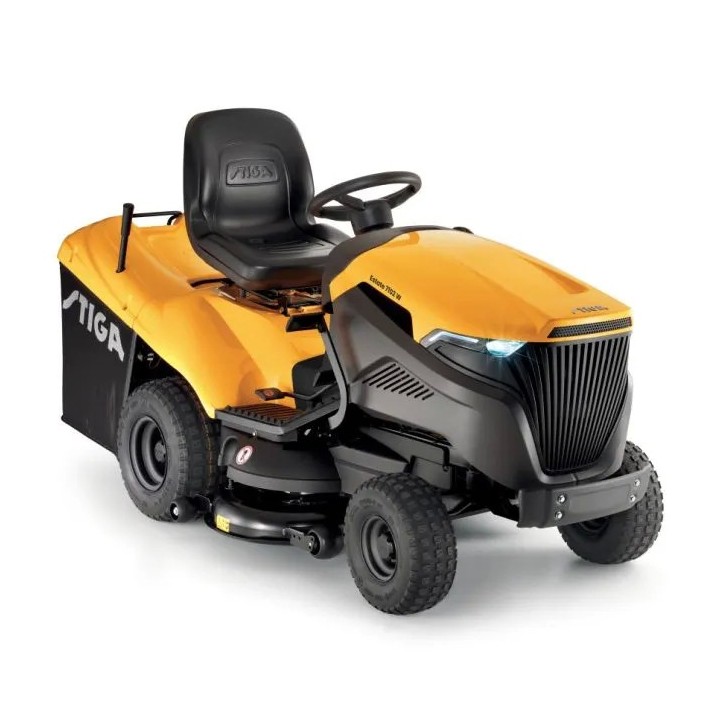

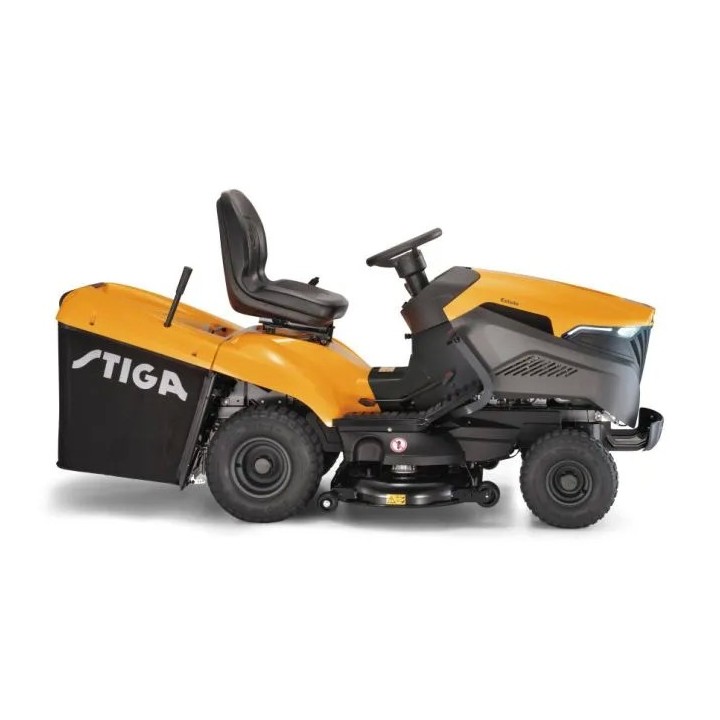

STIGA Summer 7102 W

This tractor is powered by a twin engine ST 650 635 cc with technology V-Twin,
which optimises power and torque transmission while reducing vibration and
fuel consumption.
Considerable cutting plate width (102 cm) and synchronized double blades allow this
Tractor to burst cover a very large area in a short time and also collect the grass
' longer and wet without the exhaust chimney clogging.
The large 300 L bag reduces the number and frequency of emptying, while the
mulching cap provided allows to speed up the cutting operations eliminating the need'
To collect the cut grass.
In addition, it is equipped with a control panel with six LEDs which shows the main values of the machine:
Transmission status, parking brake activation and battery level.
Hydrostatic driving offers gradual acceleration both forward and reverse, making it easy to
 Cutting operations in the presence of obstacles and flower beds.
The tractor Estate 7102 W is equipped with a steering wheel with soft handle of quality,
Adjustable seat Comfort Plus and practical device for electromagnetic engagement of the blades.
The robust front bumper protects the engine from accidental shocks.
Mulching kit included, tow hook and battery charger sold separately.

TECHNICAL DATA:
Power
Battery capacity: 18 Ah
Power: 10.6 kW
Fuel: Petrol
Engine: ST 650 Twin Powered by STIGA
Cylinder capacity: 635 cm3
Choke (air): Manual
Cooling system: Air
Fuel tank capacity: 8 L
Recommended cutting area: 6000 sqm
Cut
Cutting width: 102 cm
Reverse cut: Yes
Blade rotation: Synchronised
Cutting height adjustment: Manual with levers
Cutting height positions: 7 positions
Cutting heights: 30 - 90 mm
Number of blades: 2
Additional cutting system: Rear discharge, mulching multiclip
Blade type: Electric
Transmission
Transmission method: Via pedal
Transmission: Hydrostatic
Equipment
Emptying of collection bag: Manual
Capacity of the bag: 300 L
Steering wheel: STIGA premium + soft grip
Seat type: STIGA comfort plus
Seat adjustment: Single lever
Dashboard: Yes with multifunction display
Size front wheels: 15x6.00-6
Rear wheel size: 18x8.50-8
Dimensions
Product length: 2418 mm
Product width: 1050 mm
Product height: 1070 mm
Product weight: 233 kg

ORIGINAL CODE: 2T.TOF90481/ST1
