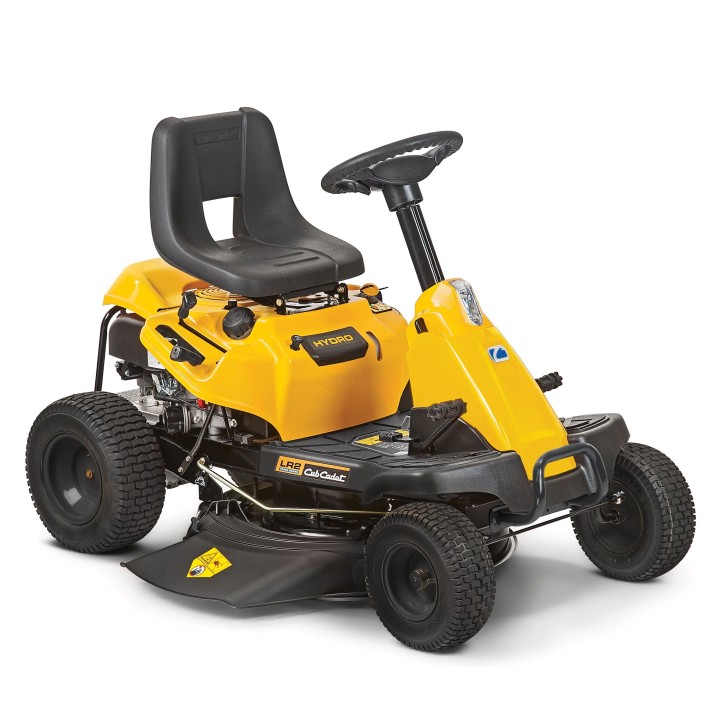

CUB CADET LR2 NS76 420 cc mini tractor with hydrostatic side discharge

76 cm MINIRIDER TRACTOR LATERAL DISCHARGE HYDROSTATIC TRANSMISSION LR2 NS76 CUB CADET MTD TECHNICAL DATA MODEL ENGINE CUB CADET OHV CYLINDER 420 cc NOMINAL POWER 8.2 kW / 3000 min SINGLE CYLINDER CYLINDER TANK CAPACITY 4, 9 l LUBRICATION automotive-style pressurised oil pump with external filter TRANSMISSION Hydro VARIABLE SPEED pedal control INDICATIVE HORRARY SURFACE 3000 m /h CUTTING WIDTH 76 cm CUTTING HEIGHT (min-max) 38-95 mm MULCHING CAPACITY 2-in- 1 NUMBER OF BLADES 1 BLADE INNECTION Manual lever-operated 5-position PLATE HEIGHT POSITION WASHING NOZZLE / MULCHING KIT standard / standard BASKET (litres) / optional ACCESSORY CODE 115 l / (19A30014OEM) BASKET HANDLE / HARD- TOP - / - FULL BAG INDICATOR / DEFLECTOR - / as standard FRONT AXLE STEEL FRONT BUMPER / STEERING BEAM 46 cm WHEEL SIZES (w/w) 13 x 5 / 16 x 6, 5 WHEEL BEARINGS bushings EASY ACCESS FRAME BATTERY 12V , 115 CCA LED LIGHTS Deluxe high backrest SEAT ADJUSTMENT VOLTAGE SCREW as standard RETROMARCY CUTLER / LpA/LwAg (db) 88/98/100 VIBRATION VALUE BODY / K-FACTOR 1.0 / 0.5 m/s VIBRATION VALUE HAND / ARM / K-FACTOR 5, 0 / 1.5 m/s DIMENSIONS (WxLxH) 157 x 85 x 112 cm NET WEIGHT 127 Kg CHARACTERISTICS - COMPACT DESIGN - ADJUSTABLE SEAT - FRONT Bumper ADVANTAGES OF THE LR2 SERIES - HYDROSTATIC TRANSMISSION (HYDRO) the parking brake is located on the sun left side, while the drive pedal is on the right side - SUPER GRIP PEDALS guarantee perfect grip in all conditions - INTELLIGENT PARKING ASSISTANCE (IPA) this parking system automatically decreases the speed of the mini-rider by 50% when reverse gear is selected, This system automatically decreases the speed of the mini-rider by 50% when reverse gear is selected, thus allowing safe manoeuvring with perfect control - LIGHT can also be used in the evening, when the light is dimmed - TELESCOPIC STEERING STEERING POLE the soft-grip steering column offers maximum comfort the height of the steering column can be adjusted to suit the operator's needs CODE: 13A21JD603 ORIGINAL CODE: EM
