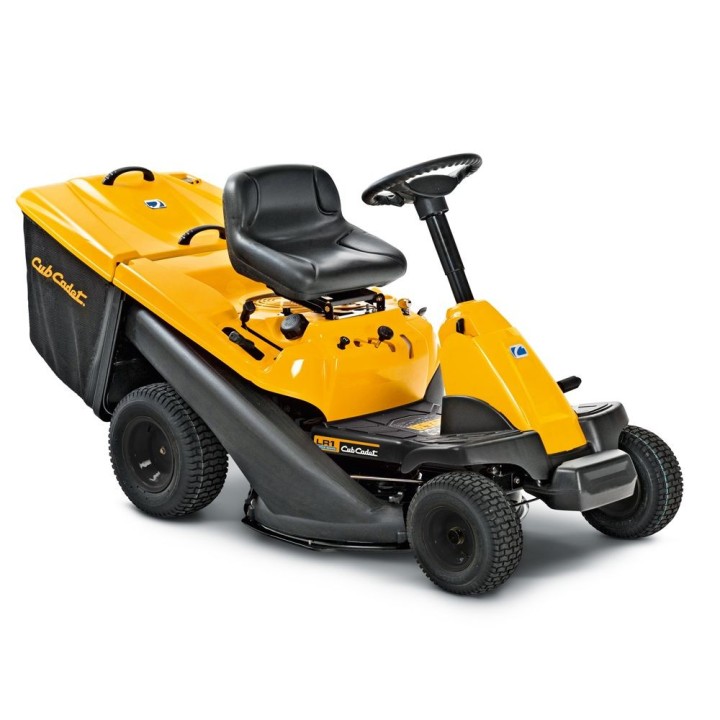

76 cm MINIRIDER TRACTOR WITH COLLECTION BASKET MECHANICAL TRANSMISSION (TRANSMATIC) LR1 MR76 CUB CADET MTD TECHNICAL DATA MODEL ENGINE CUB CADET OHV CYLINDER 382 cc NOMINAL POWER 7.6 kW / 2800 min SINGLE CYLINDER CYLINDER CAPACITY TANK 4.9 l LUBRICATION pressurised automotive-style oil pump with external filter TRANSMISSION TRANSMATIC SPEED 6 (f/r), shift-on-the-go Foot pedal control INDICATIVE HORRARY SURFACE 2500 m / h CUT WIDTH 76 cm CUT HEIGHT (min-max) 38-95 mm MULCHING CAPS 3-in-1 NUMBER OF BLADES 1 BLADE CONNECTION Manual lever-operated BLADE PLATE HEIGHT 5 positions WASHING NOZZLE / MULCHING KIT Standard / standard BASKET (litres) / ACCESSORY CODE Standard 200 L / - 2 handles / plastic FULL BAG INDICATOR / DEFLECTOR standard / standard FULL BAG INDICATOR standard FRONT AXLE steel FRONT BUMPER standard STEERING BEARING RIM 46 cm WHEEL DIMENSIONS (w/w) 13 x 5 / 16 x 6, 5 WHEEL BEARINGS bushings EASY ACCESS FRAME standard BATTERY 12V , 115 CCA HEADLIGHT / MEDIUM BACKrest SEAT ADJUSTMENT VOLTAGE standard RETROMARCY / BATTERY CHARGER optional ** (196-967-678) LpA/LwAg (db) 88/98/100 VIBRATION VALUE / K-FACTOR 1.0 / 0, 5 m/s VIBRATION VALUE BODY / ARM / K-FACTOR 5,0 / 1,5 m/s DIMENSIONS (WxLxH) 225 x 86 x 112 cm NET WEIGHT 145 Kg FEATURES - MODERN DESIGN - VERSATILITY - PERFECT GRASS CUTTING mini-riders are agile and compact, equipped with one of the highest performing and most reliable Cub Cadet engines and require very little maintenance ADVANTAGES OF THE LR1 SERIES - TRANSMATIC TRANSMISSION SHIFT ON THE GO allows you to control the speed in real time to start working simply select the direction of travel and set the desired speed - 76 CM CUTTING PLATE you can choose between collection, 76 CM CUTTING PLATE you can choose between collecting, discharging or mulching - STEP-THROUGH FRAME with non-slip rubber footrest for easy operator access - WIDE WHEELS gentle on the lawn, stable on all terrain CODE: 13B726HD603 ORIGINAL CODE: EM
