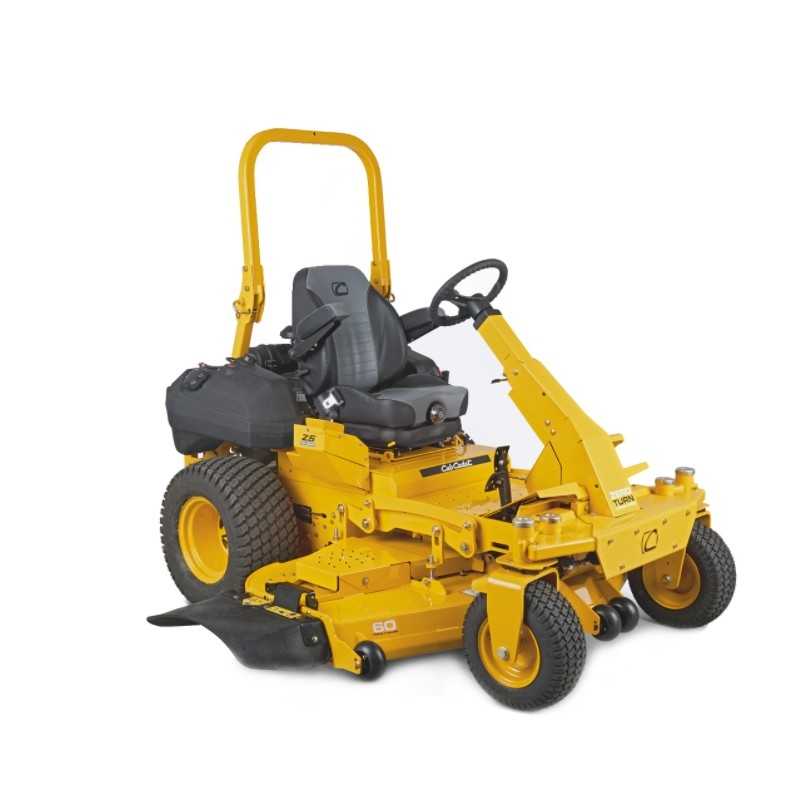

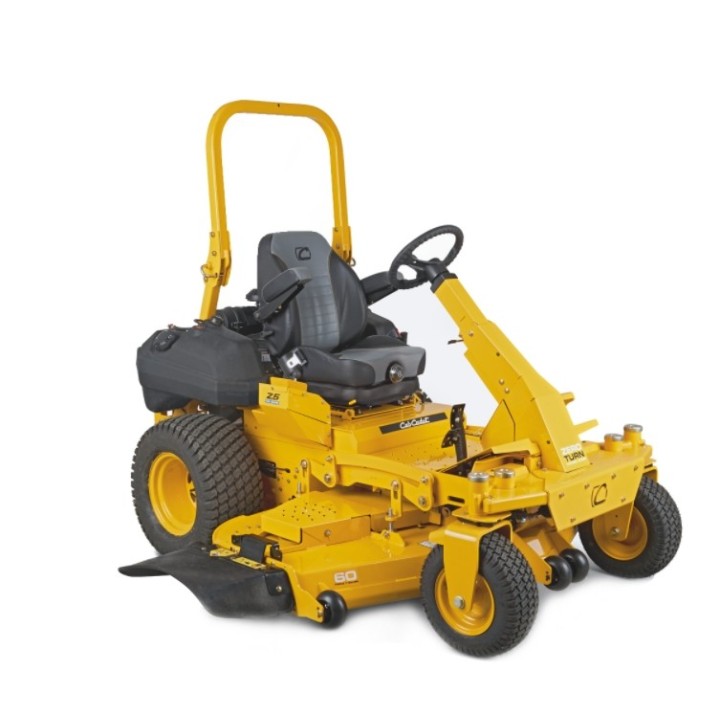

Cub Cadet Z5 152 tractor with 852cc Kawasaki engine and double hydro transmission

Cub Cadet
€18,199.00 (Save 5%)
€17,289.05
Tax included
Last items in stock
Share

TRACTOR

LAWN MOWER LAWN MOWER LAWN MOWER

Z5 152

CUB CADET

MTD



TECHNICAL DATA



MOTOR

KAWASAKI OHV

DISPLACEMENT

852 cc

RATED POWER

15.8 kW / 2,500 min

CYLINDERS

V-TWIN

TANK CAPACITY

2 x 34 L

LUBRICATION

Pressurized oil with external filter

TRANSMISSION

Double Hydro

TRANSMISSION TYPE

Hydro Gear 4400 (12cc)

WORK AREA (recommended)

15,000 m2/h

CUTTING WIDTH

152 cm

CUTTING HEIGHT (min-max)

26-127 mm

CUTTING OPTIONS

2-in-1

NUMBER OF BLADES

3

BLADE GRAFT

electromagnetic

CUTTING HEIGHT POSITION

17

FLAT WHEELS

2 + Roller

MULCHING KIT

as standard

COLLECTION BASKET

-

DEFLECTOR

as standard

FRONT / REAR BUMPER

- / as standard

TURNING RADIUS

0 cm

WHEEL DIMENSIONS (h/d)

15'' x 6'' / 24'' x 12''

WHEEL BEARINGS

ball bearings

DRUMS

230 CCA

LIGHTS

-

DIGITAL HOUR METER AND SERVICE INDICATOR

As standard

SECURITY SYSTEM

Rollover bar

SEAT

high back with armrests

SEAT ADJUSTMENT

quick adjustment lever

STEERING WHEEL

Soft Grip

STORAGE COMPARTMENT

-

REVERSE CUTTING

as standard

BATTERY CHARGER

-

LpA/LwA/LwAg (db)

90.1/103.2/105

VIBRATION BODY VALUE / K-FACTOR

1 / 0.5 m/s²

HAND/ARM VIBRATION VALUE / K-FACTOR

5 / 1.5 m/s²

NET WEIGHT

680 kg





ADVANTAGES OF THE Z5 SERIES

INCREDIBLE STRENGTH AND COMFORT
UNBEATABLE
the perfect combination for a true professional
This tractor is the market benchmark
in terms of performance, quality and efficiency











CODE:53AIHTUV603

replaces 53AIHJUV603

ORIGINAL CODE:



EM



  • Brand
    Cub Cadet
  • Reference
    53AIHJUV603 - 53AIHTUV603
  • EAN13
    4008423872415

  • Power source
    Petrol
  • Displacement (cc)
    852
  • Weight (kg)
    680
  • Power (hp)
    21,2
  • Engine type
    4-stroke
  • Working width (cm)
    152
  • Display
    Yes
  • Collection box
    No
  • Max area (m²)
    15000
  • Max cutting height (mm)
    127
  • Min cutting height (mm)
    26
  • Side discharge
    Yes
  • Mulching
    Yes
  • Rear discharge
    No
  • Blade engagement
    Electromagnetic
  • Number of blades
    3
  • Transmission
    Hydrostatic
