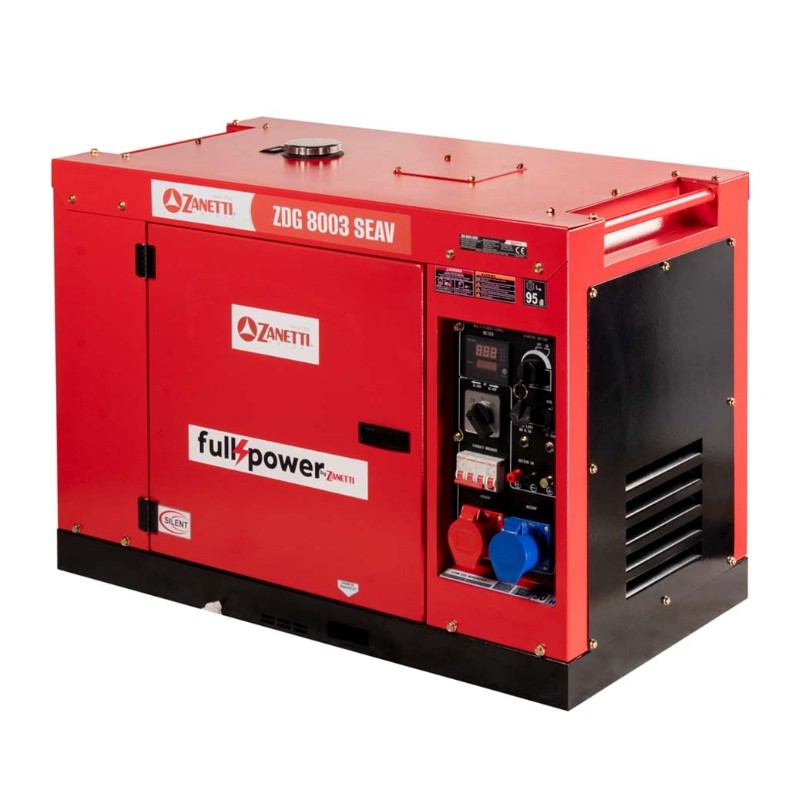

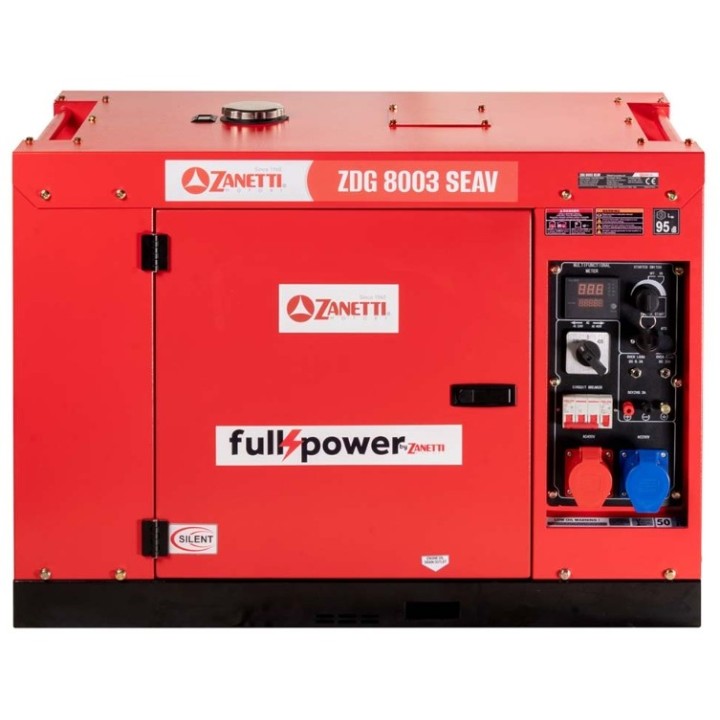

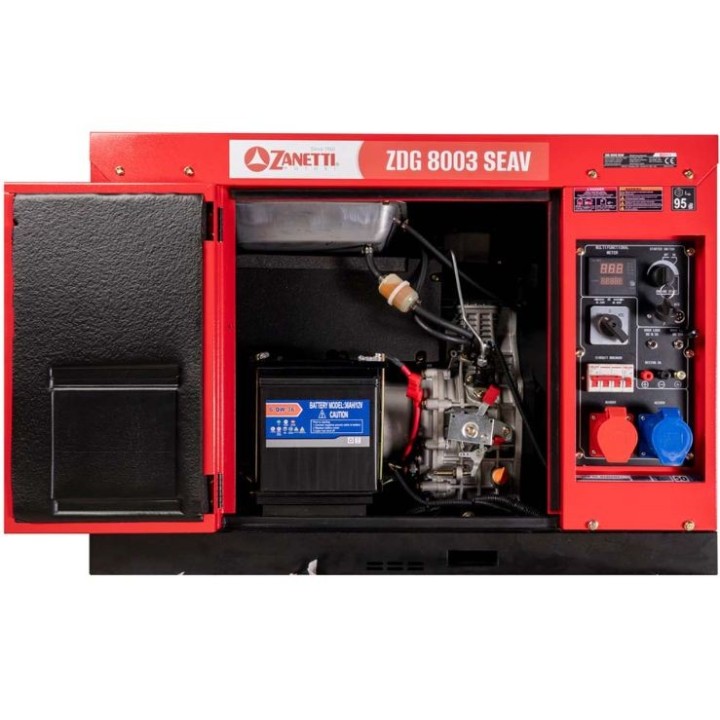

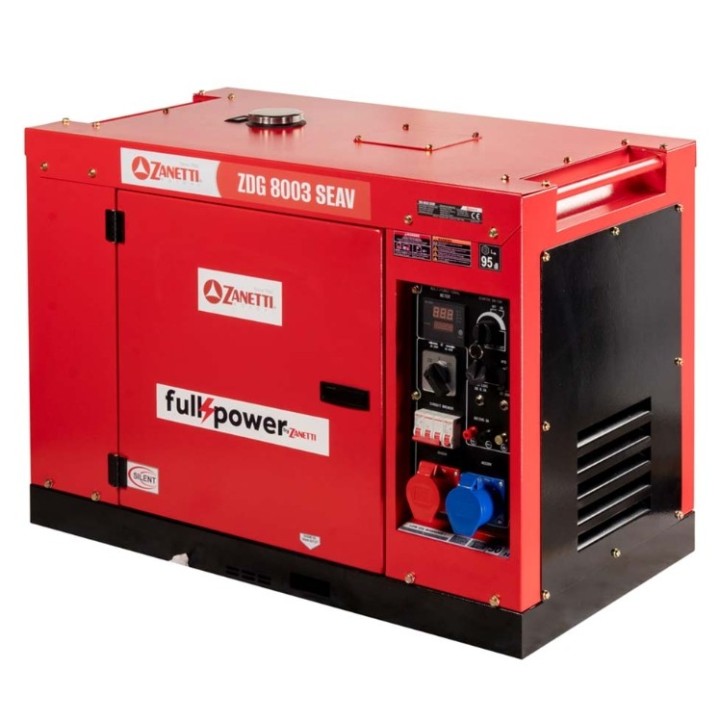

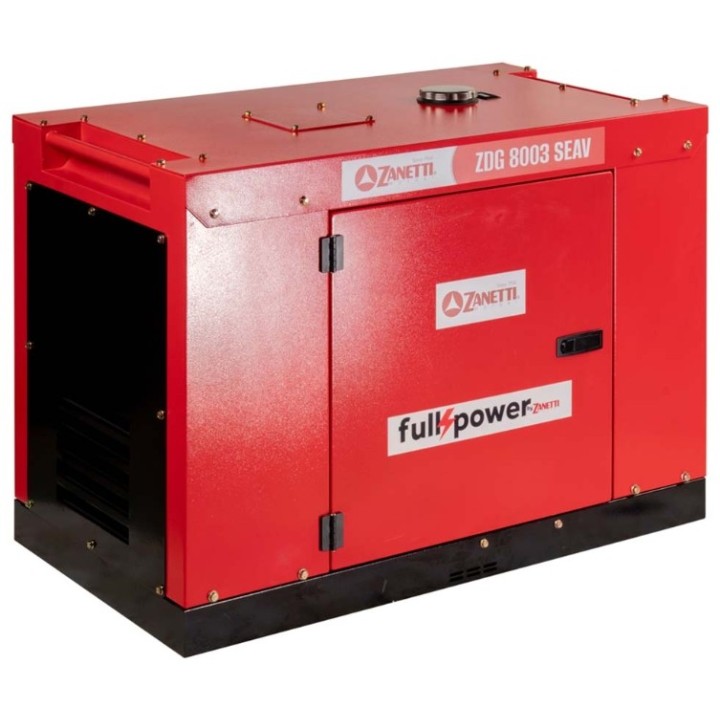

ZANETTI ZDG8003SEAV single-phase - three-phase full power silent diesel generator
Regular price:
€3,419.00
(Save 13%)
Price:
€2,974.53
Tax included
SILENT DIESEL GENERATOR
ZANETTI ZDG 8003 SEAV
A powerful, silent diesel generator
and ready to work up to 5h at 50%.
Full Power technology allows
to exploit all the power both in
single-phase and three-phase
(8kW – 400V / 7.5kW – 230V), making it ideal
for companies, construction sites, agricultural activities
and as a home backup.
SPECIFICATIONS
Type: Single-phase/Three-phase Full power
Maximum power (kW max 5 minutes): 8 (400V)/ 7.5 (230V)
Continuous power (kW): 7.5 (400V)/ 7.0 (230V)
Voltage (V): 230/400
Frequency (Hz): 50
Continuous output current (V/A): 12/8.3
Tank capacity (Lt): 12.5
Autonomy at 50% (h): 5
Wheel kit: Yes
Battery: Yes
Dry weight (Kg): 195
Dimensions mm (LxWxH): 1000x560x720
Socket Type: 1x16A/380V +1x32A/220V
USB socket: -
Engine type: ZDM100
Engine displacement (cc): 628
Engine power Kw: 9.5
Engine speed (rpm): 3000
Engine cooling: Air
Engine start: Electric
Voltage regulator: AVR
M.F.Di - Multi-functional Display: Yes
IP protection rating: IP23M
Voltmeter: -
V.F.R.T. – Voltometer, Frequency, Run Time, Total Time: -
Oil alarm device: Yes
ATS automatic control unit pred.: Yes
Fuel gauge: Yes
Differential circuit breaker: No
CODE:ZDG 8003 SEAV
MN
-
Brand
-
ReferenceZDG8003SEAV
-
EAN136150400447463
-
Power sourceDiesel
-
Tank capacity (L)12,5
-
Displacement (cc)628
-
Weight (kg)195
-
Power (hp)12,7
-
Engine type4-stroke
-
PortableNo
-
Starting typeElectric
-
DisplayYes
-
Automatic start (ATS)Yes
-
CurrentThree-phase
-
InverterNo
-
Max power (kW)8
-
AVR systemYes
-
SilencedYes
