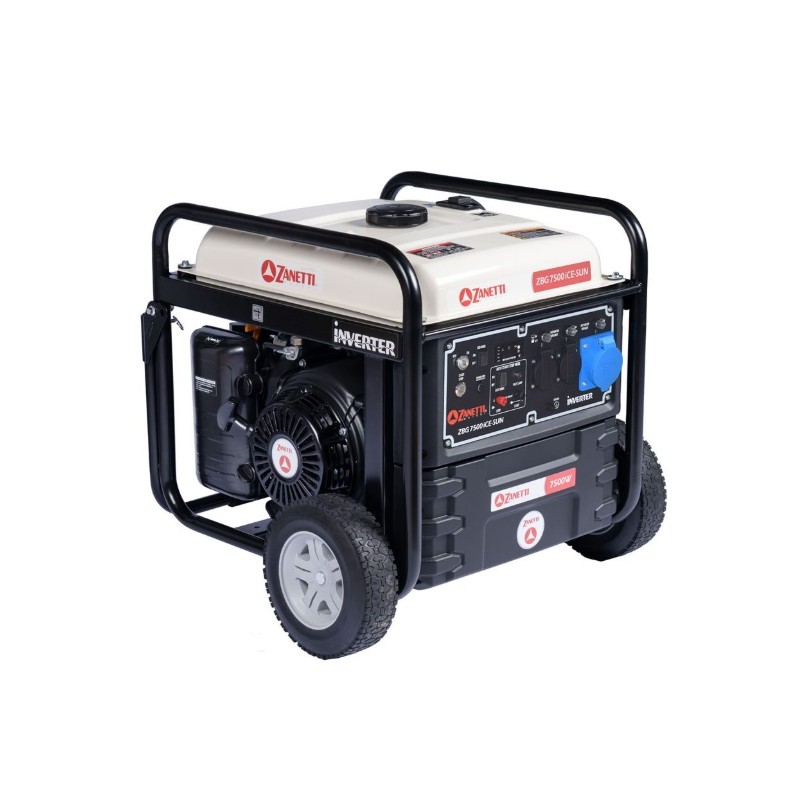

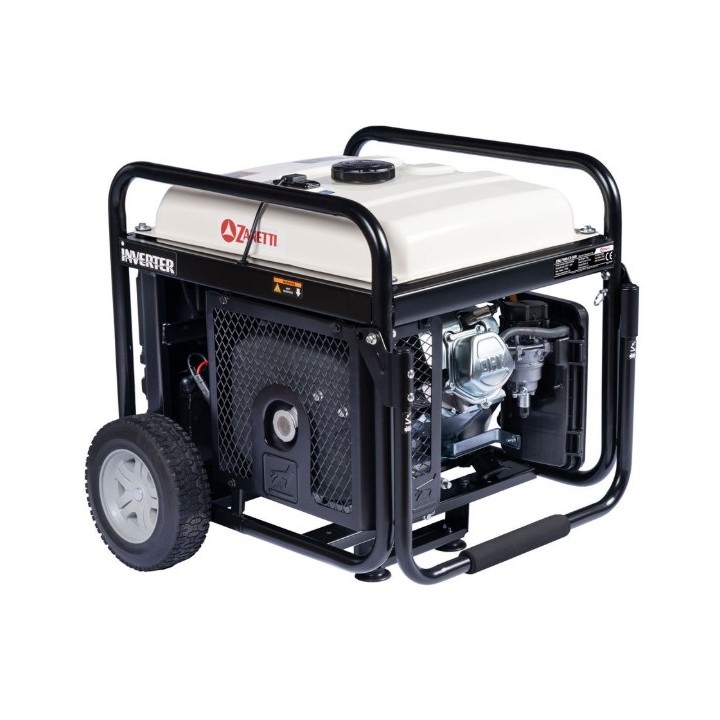

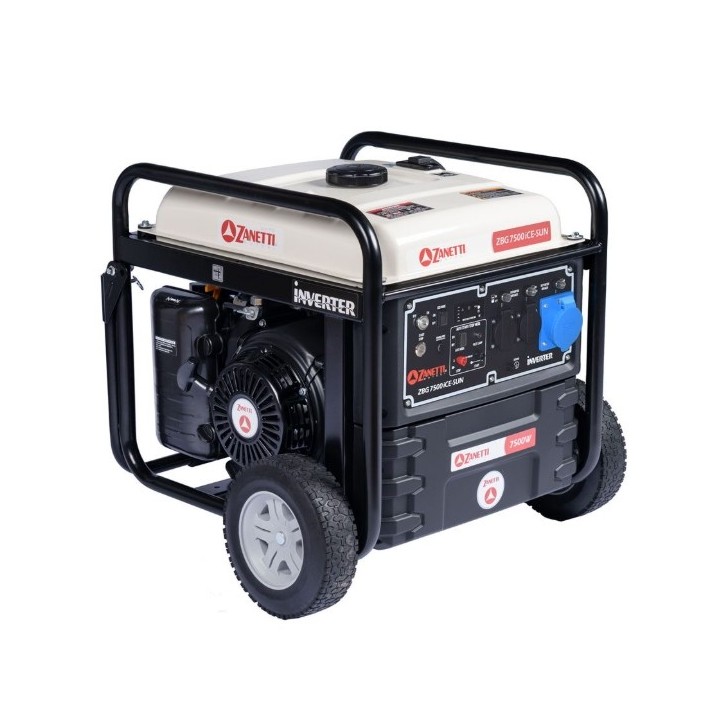

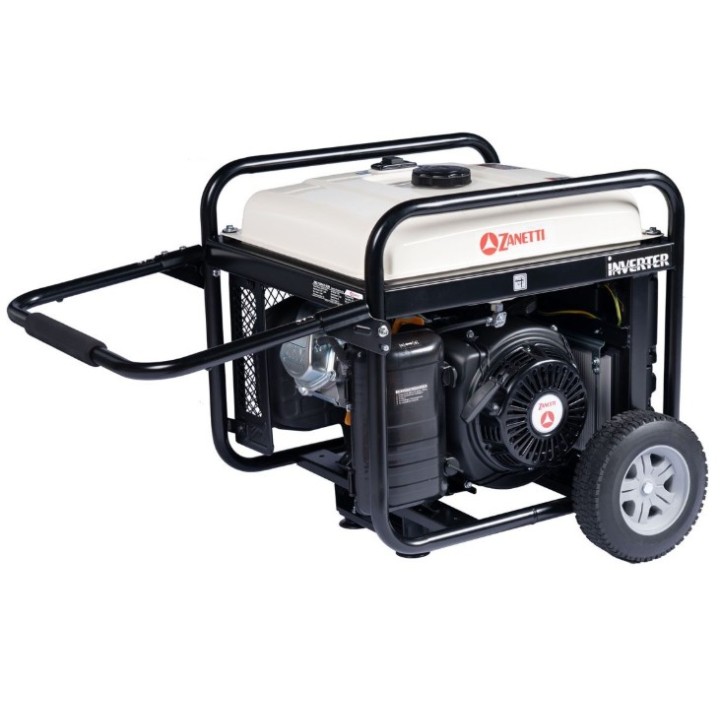

GASOLINE GENERATOR

ZANETTI ZBG 7500 iCE-SUN



The ZBG 7500 iCE-SUN is a generator

single-phase 7.5 kW inverter

designed for stand-alone photovoltaic systems.

Thanks to the external Solar Controller you

starts automatically when the

the battery charge is insufficient,

ensuring energy continuity.

Compact and easy to carry, it offers

stable current with inverter technology

low distortion, up to nine

hours of autonomy and consumption

optimized through Eco Mode, resulting in a

practical and reliable solution for integrating

solar and traditional energy.



SPECIFICATIONS

Type: Single-phase

Maximum power (kW max 5 minutes): 7.5

Continuous power (kW): 7.2

Voltage (V): 230

Frequency (Hz): 50

Continuous output current (V/A): 12/8.3

Tank capacity (Lt): 30

Autonomy at 50% (h): 7

Wheel kit: Yes

Battery: Yes

Dry weight (Kg): 73

Dimensions mm (LxWxH): 667x677x630

Socket Type: 2x16A/250V IP44 + 1x32A/250V IP44

USB socket: No

Engine type: ZBM 460

Engine displacement (cc): 459

Engine power Kw: 10.5

Engine speed (rpm): 3600

Engine cooling: Air

Engine start: Self-recoil - Electric

Voltage regulator: Inverter

M.F.Di - Multi-functional Display: Yes

IP protection rating: -

Voltmeter: -

V.F.R.T. – Voltometer, Frequency, Run Time, Total Time: -

Oil alarm device: Yes

ATS automatic control unit pred.: Yes

Fuel gauge: Yes, digital

Differential circuit breaker: No

Wireless Start/Stop Remote Control: -

Parallel function: -

Parallel Kit: -

Current technology: -

Frame: Open

ECO function: Yes





CODE:ZBG7500iCE-SUN
