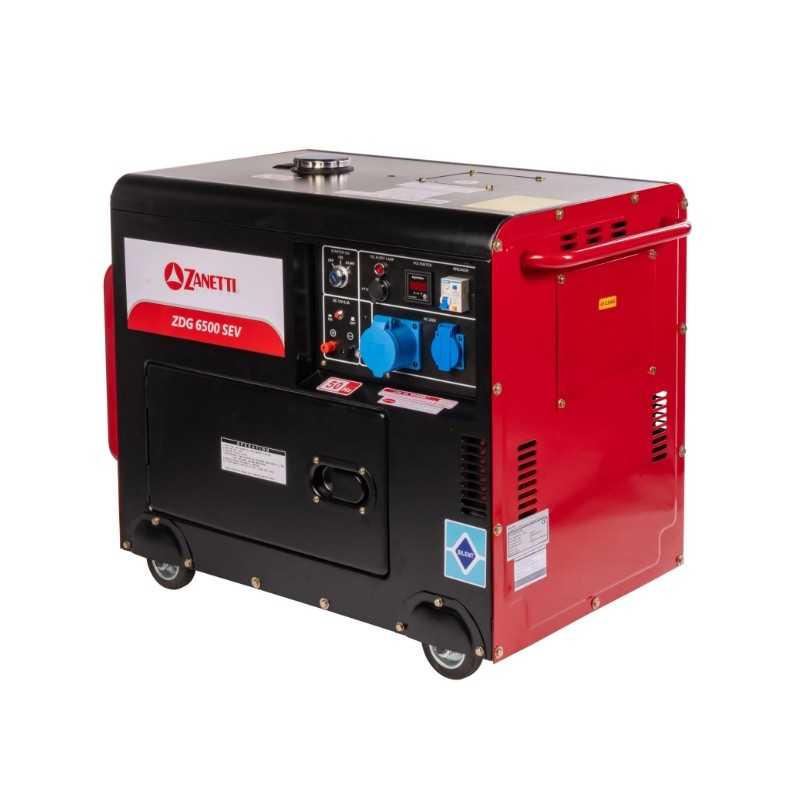

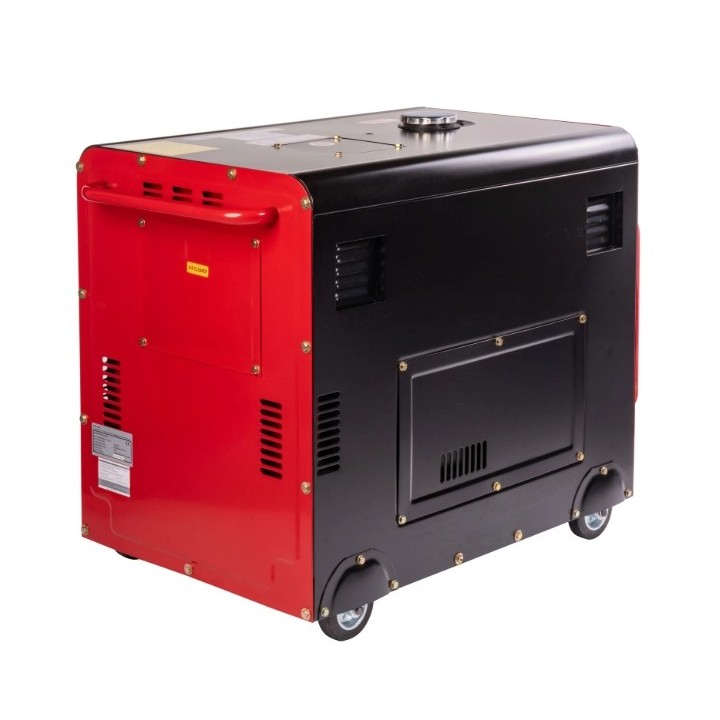

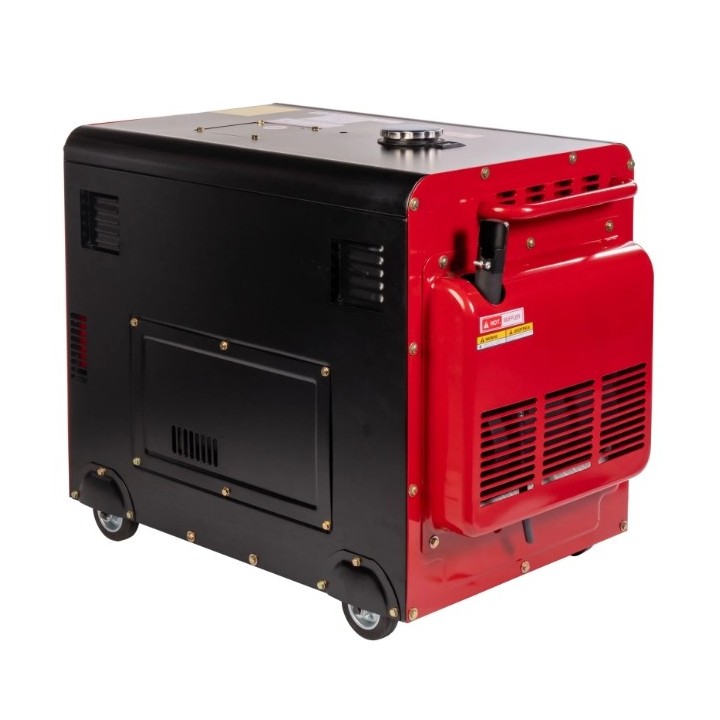

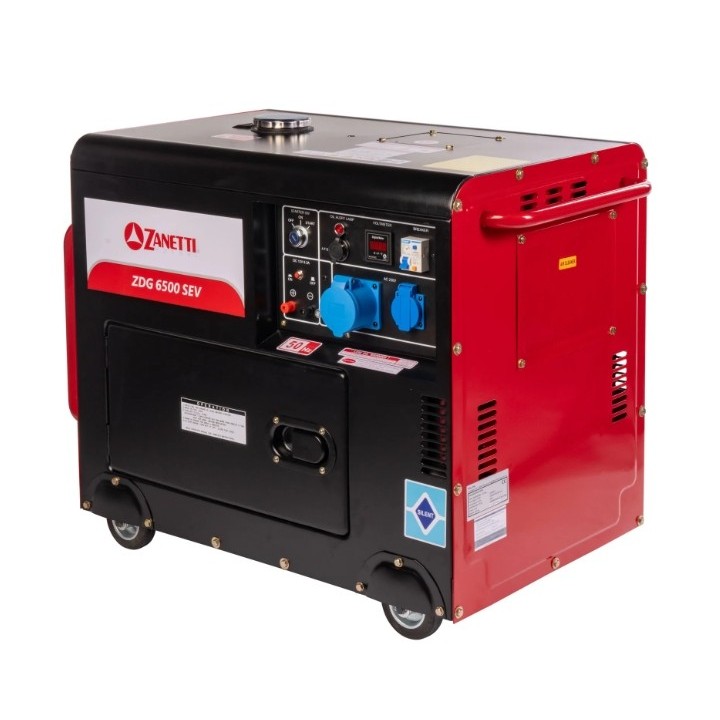

OPEN DIESEL GENERATOR

ZANETTI ZDG 6500 SEAV



The silent diesel generators and

open are available with current

single-phase 220 Volt output.

They all also have a 12 Volt 8.3 Ampere output as standard.

and the trolley kit with wheels. The models

silenced ZDG 6500 SEAV are

also equipped with an alarm device

oil on the engine “OIL ALERT” and

provision for connection to

ATS intervention control unit, allowing

automatic generator start in

cases of power outages

electricity of the network.



SPECIFICATIONS

Type: Single-phase

Maximum power (kW max 5 minutes): 4.5

Continuous power (kW): 4.2

Voltage (V): 230

Frequency (Hz): 50

Continuous output current (V/A): 12/8.3

Tank capacity (Lt): 14

Autonomy at 50% (h): 7

Wheel kit: Yes

Battery: Yes

Dry weight (Kg): 149

Dimensions mm (LxWxH): 960x570x810

Socket Type: 1x16A/220V + 1x32A/220V

USB socket: -

Engine type: ZDM 86

Engine displacement (cc): 418

Engine power Kw: 6.3

Engine speed (rpm): 3000

Engine cooling: Air

Engine start: Electric

Voltage Regulator: Capacitor

M.F.Di - Multi-functional Display: -

IP protection rating: IP23

Voltmeter: -

V.F.R.T. – Voltometer, Frequency, Run Time, Total Time: Yes

Oil alarm device: Yes

ATS automatic control unit pred.: Yes

Fuel gauge: Yes

Differential circuit breaker: Yes

Wireless Start/Stop Remote Control: -

Parallel function: -

Parallel Kit: -

Current technology: -

Frame: Silenced

ECO function: -





CODE:ZDG 6500 SEAV
