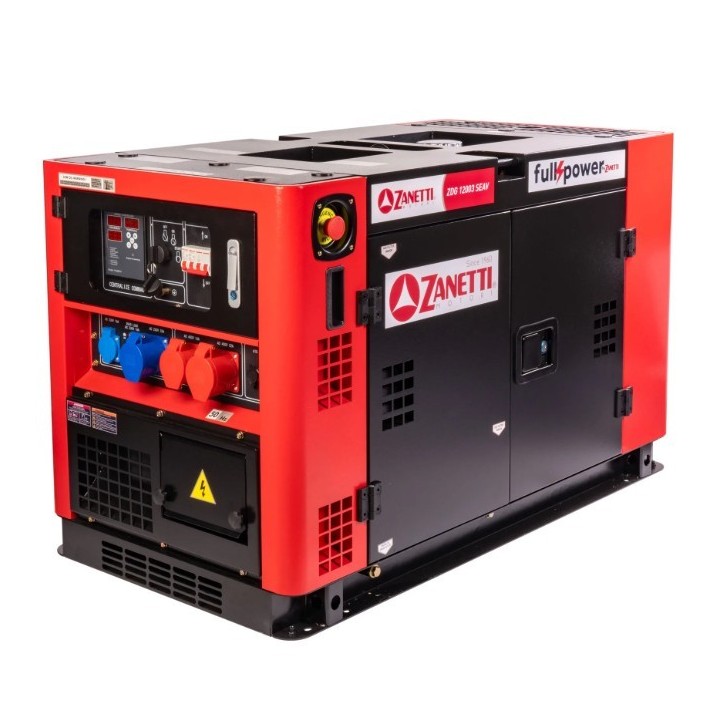

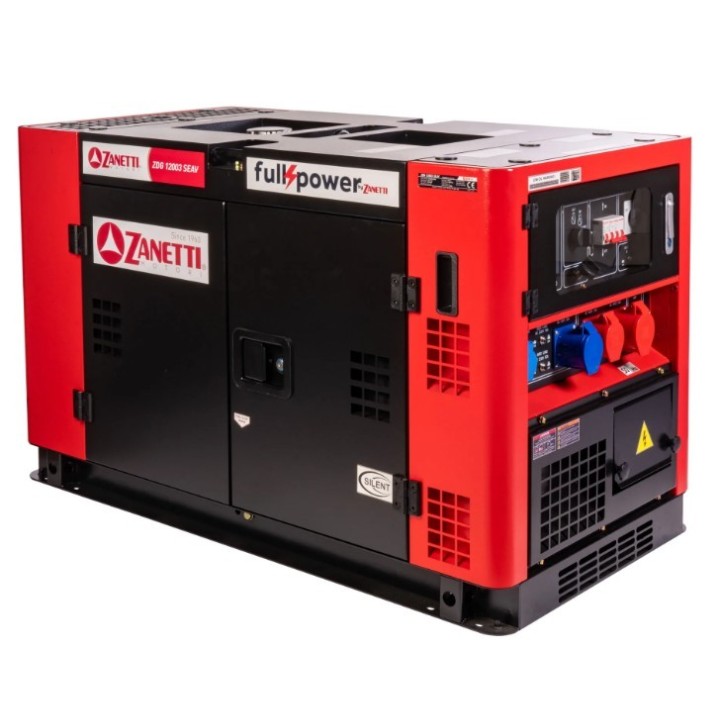

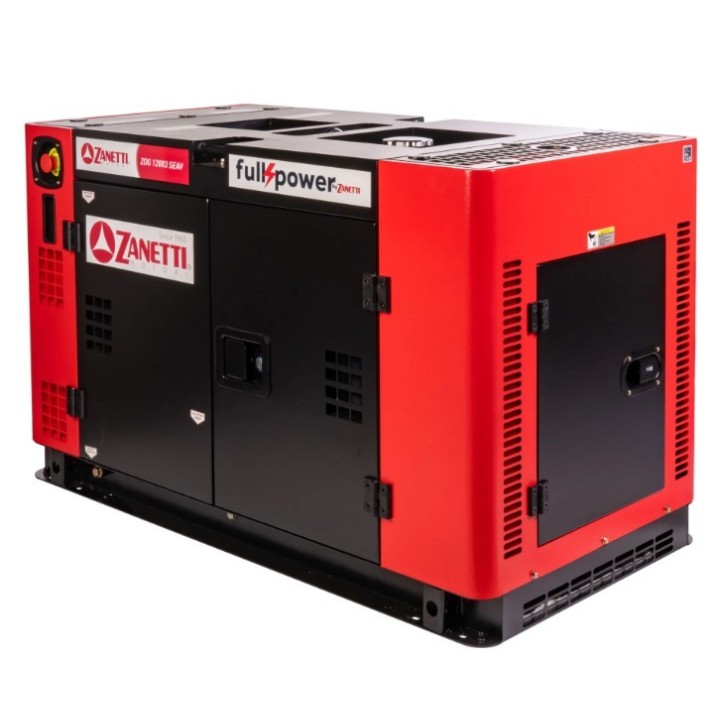

SILENT DIESEL GENERATOR

ZANETTI ZDG 12003 SEAV



Full power diesel generators

silenced ZDG 12003 SEAV,

they have almost identical output power

both single-phase and three-phase.

They are equipped with voltage regulator

AVR capable of guaranteeing

stability at voltage values

and output frequency and copper alternator.

They are designed for connection

to the ATS intervention control unit,

allowing the generator to start automatically

in the event of a power outage.

Designed to work in conditions

of heavy work in the domestic/collective field,

agricultural and industrial.



SPECIFICATIONS

Type: Single-phase/Three-phase

Maximum power (kW max 5 minutes): 12.5 (400V) / 12 (230V)

Continuous power (kW): 11.5 (400V) / 11 (230V)

Voltage (V): 230/400

Frequency (Hz): 50

Continuous output current (V/A): 12/8.3

Tank capacity (Lt): 26

Autonomy at 50% (h): 16

Wheel kit: Yes

Battery: Yes

Dry weight (Kg): 300

Dimensions mm (LxWxH): 1250x650x760

Socket type: 1x16A/230V + 1 x 32A/230V + 1x16A/400V + 1x32A/400V

Engine type: ZDM 92/2 - STAGE V

Engine displacement (cc): 997

Engine power Kw: 14

Engine speed (rpm): 3000

Engine cooling: Air

Engine start: Electric

Voltage regulator: AVR

M.F.Di - Multi-functional Display: Yes

IP protection rating: IP23M

Oil alarm device: Yes

Automatic control unit ATS pred.: Yes

Fuel gauge: Yes

Differential circuit breaker: No

Frame: Silenced



CODE:ZDG 12003 SEAV





MN
