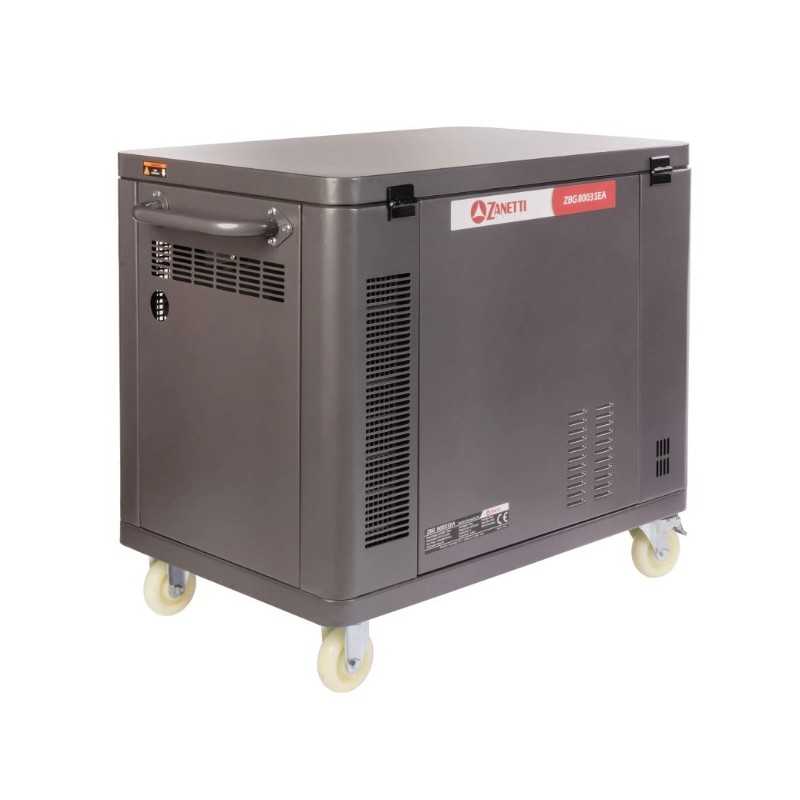

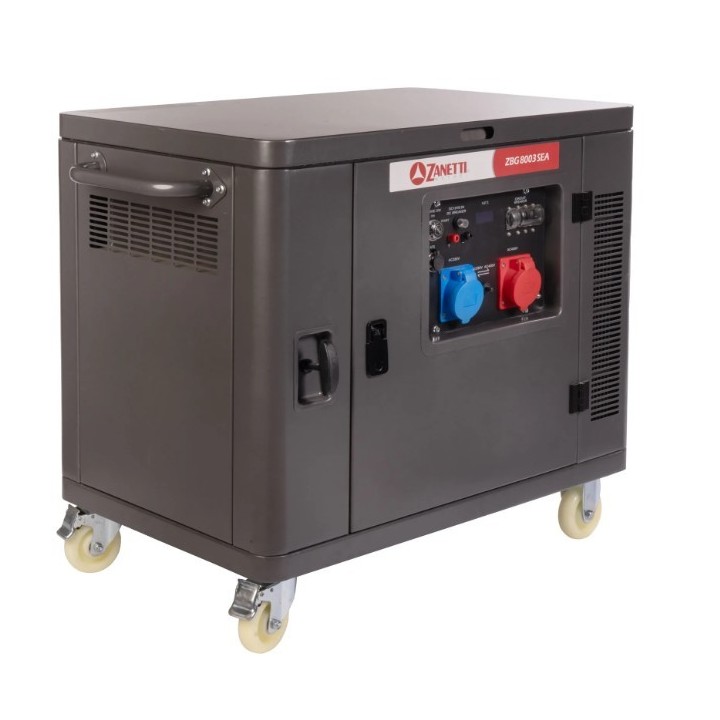

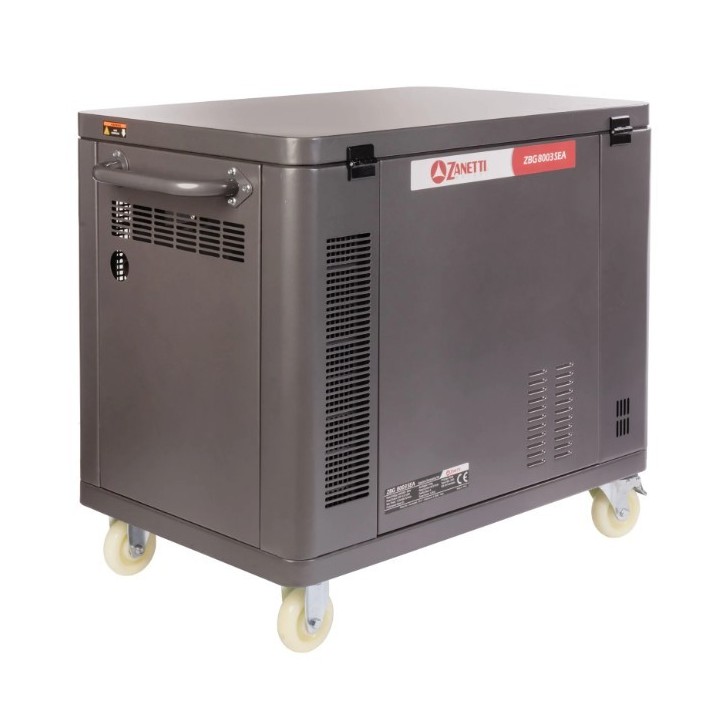

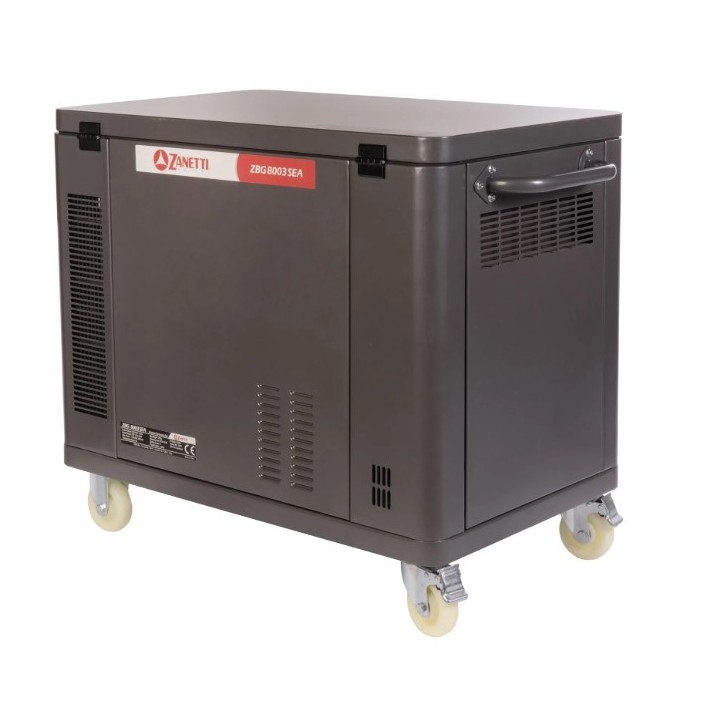

SILENT PETROL GENERATOR

ZANETTI ZBG 8003 SEA



The ZBG 8003 from Zanetti's Full Power range

It is designed to ensure power

reliable in both single-phase and three-phase.

The ZBG 8003 offers a balance between power and silence,

perfect for those looking for high performance

in an innovatively designed generator.

The silenced structure, together with the

practical upper door,

facilitates access to components

for quick maintenance.

Equipped with AVR technology

for a stable voltage, it is

designed for intensive use,

without compromising the modern aesthetics that make it

suitable for any environment.



SPECIFICATIONS

Type: Single-phase/Three-phase

Maximum power (kW max 5 minutes): 8 (400V) / 7(230V)

Continuous power (kW): 7.5 (400V) / 6.5 (230V)

Voltage (V): 230/400

Frequency (Hz): 50

Continuous output current (V/A): 12/8.3

Tank capacity (Lt): 27

Autonomy at 50% (h): 8.6

Wheel kit: Yes

Battery: Yes

Dry weight (Kg): 147

Dimensions mm (LxWxH): 995x680x970

Socket Type: 1x32A/220V + 1x16A/380V

Engine type: ZBM 460

Engine displacement (cc): 459

Engine power Kw: 10.5

Engine speed (rpm): 3600

Engine cooling: Air

Engine start: Self-recoil - Electric

Voltage regulator: AVR

IP protection rating: IP23M

V.F.R.T. – Voltometer, Frequency, Run Time, Total Time: Yes

Oil alarm device: Yes

Automatic control unit ATS pred.: Yes

Fuel gauge: Yes

Differential circuit breaker: No

Frame: Silenced





CODE:ZBG 8003 SEA
