SILENT PETROL GENERATOR

ZANETTI ZBG 5500 SEA



The ZBG 5500 SEA is a compact and silent generator,

designed to offer reliable energy

with a modern and captivating look.

Equipped with AVR for the

automatic voltage regulation,

This model guarantees stability

and security for sensitive devices.

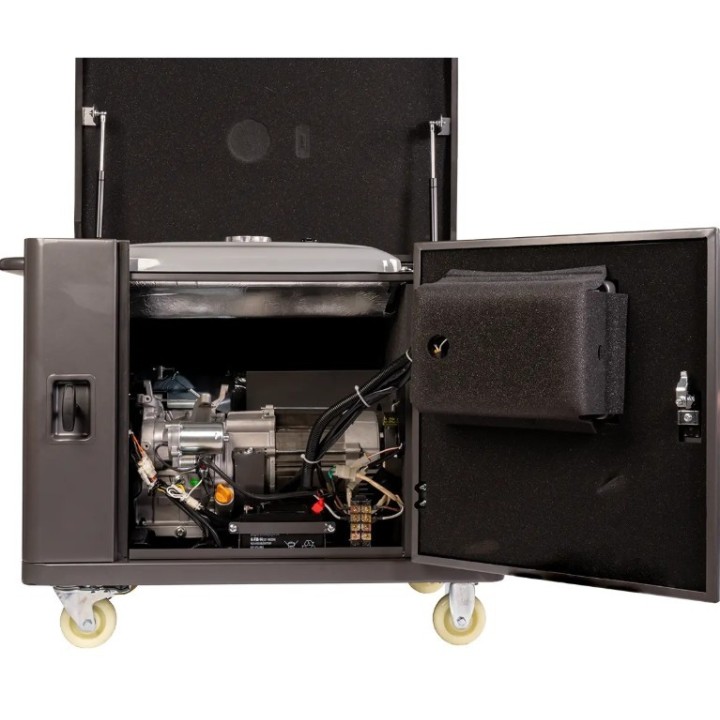

Easy maintenance, thanks to the

opening upper door,

combines aesthetics and functionality.

Ideal for professional and home use,

ensures continuous power with a design

elegant.



SPECIFICATIONS

Type: Single Phase

Maximum power (kW max 5 minutes): 5.5

Continuous power (kW): 5

Voltage (V): 230

Frequency (Hz): 50

Continuous output current (V/A): 12/8.3

Tank capacity (Lt): 27

Autonomy at 50% (h): 10

Wheel kit: Yes

Battery: Yes

Dry weight (Kg): 130

Dimensions mm (LxWxH): 995x550x800

Socket Type: 1x32A/220V + 1x16A/220V

Engine type: ZBM 420

Engine displacement(cc): 420

Engine power Kw: 9.1

Engine speed (rpm): 3600

Engine Cooling: Air

Engine Start: Self-recoil - Electric

Voltage Regulator: AVR

IP protection class: IP23M

V.F.R.T. – Voltmeter, Frequency, Run Time, Total Time: Yes

Oil alarm device: Yes

ATS automatic control unit pred.: Yes

Fuel gauge: Yes

Differential circuit breaker: No

Frame: Silenced



CODE:ZBG 5500 SEA
