GENERATOR

OPEN PETROL

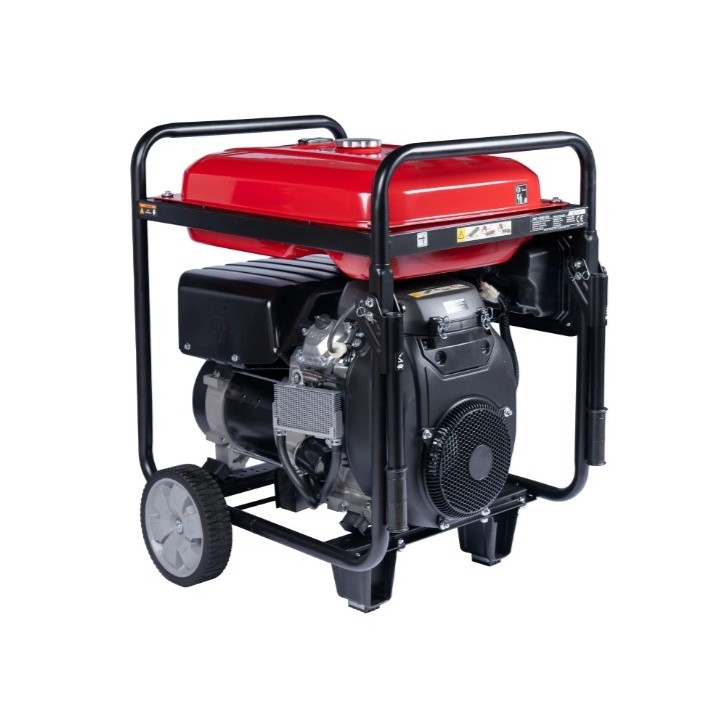

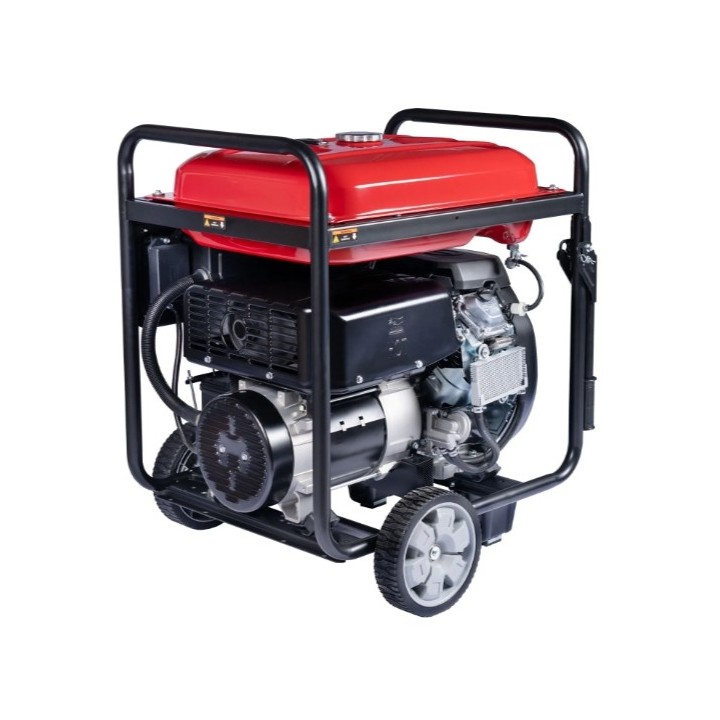

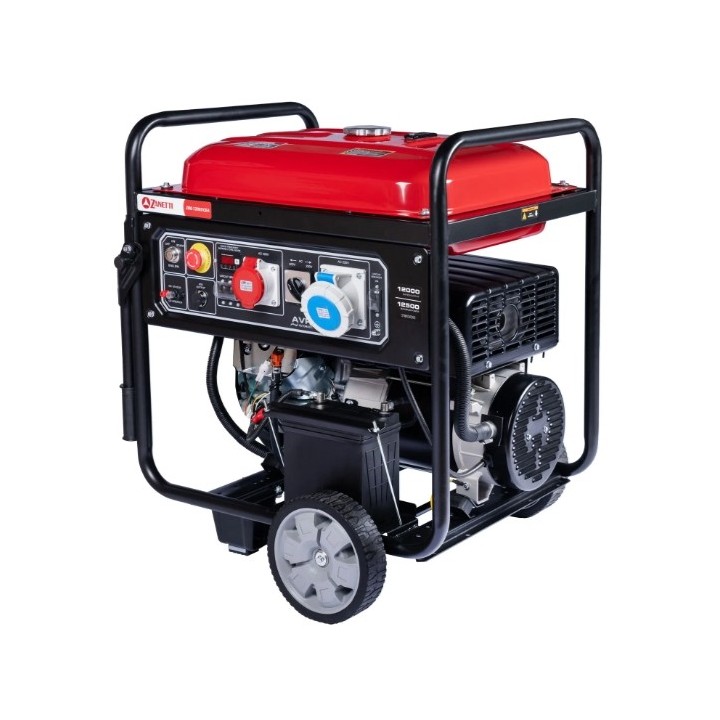

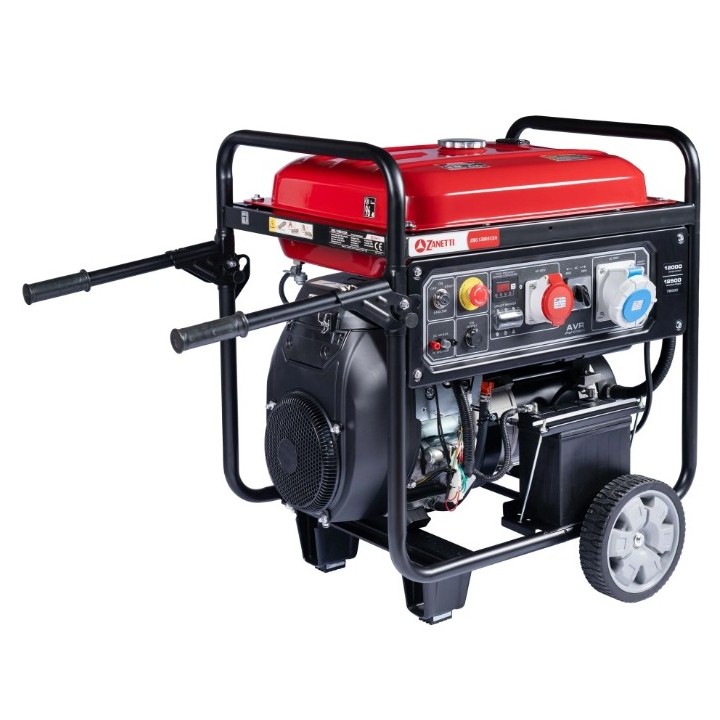

ZANETTI ZBG 12003 CEA



The ZBG 12003 CEA represents

the top of the Full Power range,

ensuring continuous and identical power in

single-phase and three-phase mode.

Equipped with AVR for stable voltage

and security of connected devices, and'

prepared for use with an ATS control unit, ensuring

maximum reliability in every situation.



SPECIFICATIONS

Type: Single Phase/Three Phase

Maximum power (kW max 5 minutes): 12.5 (400V) / 11.5 (230V)

Continuous power (kW): 12 (400V) / 11 (230V)

Voltage (V): 230/400

Frequency (Hz): 50

Continuous output current (V/A): 12/8.3

Tank capacity (Lt): 55

Autonomy at 50% (h): 16

Wheel kit: Yes

Battery: Yes

Dry weight (Kg): 157

Dimensions mm (LxWxH): 797x705x805

Socket Type: 1x63A/220V + 1 x 32A/380V

OPTIONAL: Mobile plug 63A 2P+E 6h 200-250V 60Hz-50Hz

Engine type: Twin cylinder ZBM 750/2

Engine displacement (cc): 750

Engine power Kw: 16

Engine speed (rpm): 3000

Engine Cooling: Air

Engine start: Electric

Voltage Regulator: AVR

IP protection class: IP23M

V.F.R.T. – Voltometer, Frequency, Run Time, Total Time: Yes

Oil alarm device: Yes

ATS automatic control unit pred.: Yes

Fuel gauge: Yes

Differential circuit breaker: No

Frame: Open




CODE:ZBG 12003 CEA
