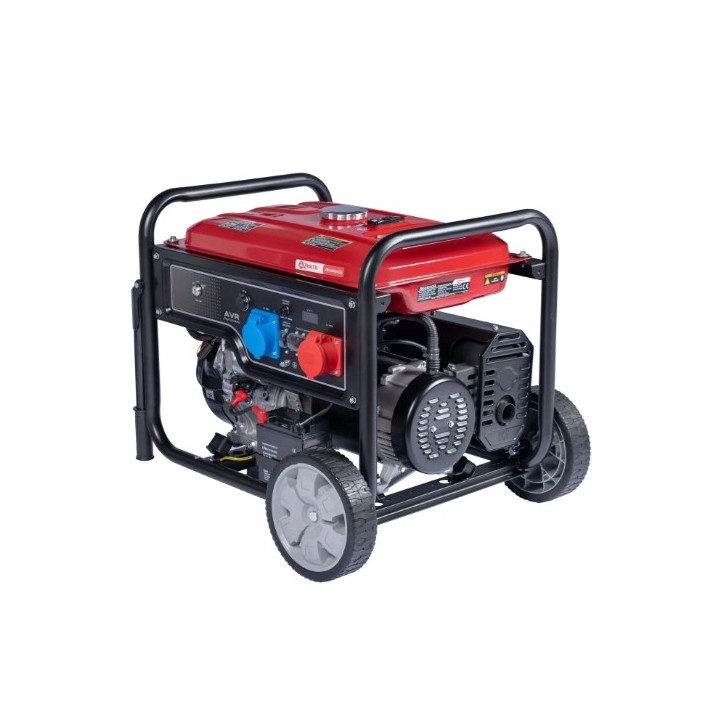

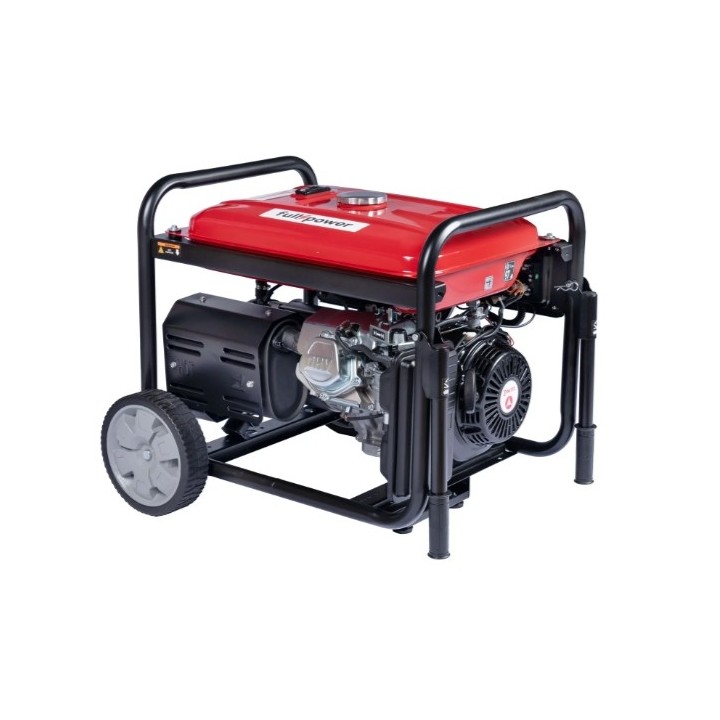

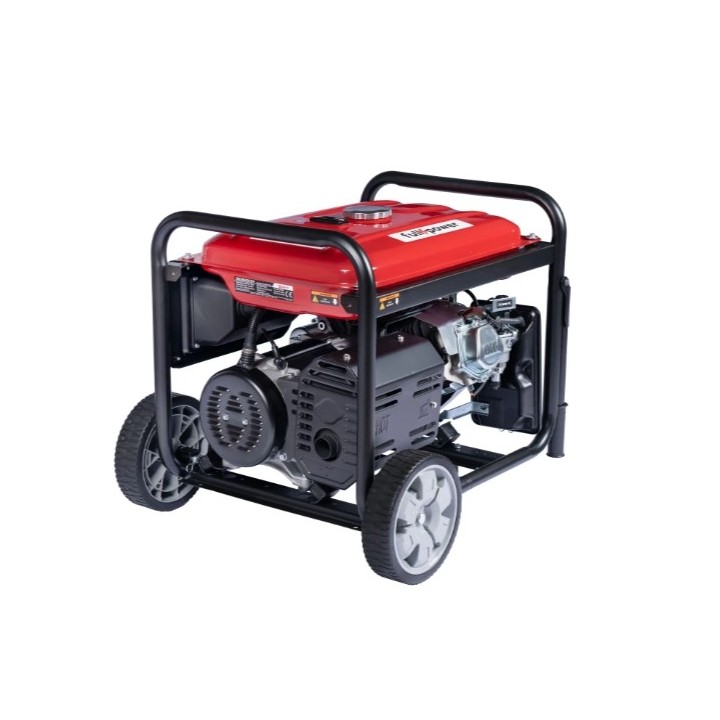

GENERATOR

OPEN PETROL

ZANETTI ZBG 8503 CEA



The ZBG 8503 combines power and reliability

with a robust design, suitable for applications

which require constant and safe energy.

Part of the Full Power range,

offers identical performance in single-phase and three-phase and

integrates AVR for stable voltage,

making it ideal for professional equipment.



SPECIFICATIONS

Type: Single Phase/Three Phase

Maximum power (kW max 5 minutes): 8.5 (400V) / 8 (230V)

Continuous power (kW): 8 (400V) / 7.5 (230V)

Voltage (V): 230/400

Frequency (Hz): 50

Tank capacity (Lt): 27

Autonomy at 50% (h): 10.5

Wheel kit: Yes

Battery: Yes

Dry weight (Kg): 95

Dimensions mm (LxWxH): 694x528x622

Socket Type: 1x32A/220V + 1x16 A/380V

Engine type: ZBM 460

Engine displacement(cc): 459

Engine power Kw: 10.5

Engine speed (rpm): 3000

Engine Cooling: Air

Engine start: Electric

Voltage Regulator: AVR

IP protection class: IP23M

V.F.R.T. – Voltometer, Frequency, Run Time, Total Time: Yes

Oil alarm device: Yes

ATS automatic control unit pred.: Yes

Fuel gauge: Yes

Differential circuit breaker: No

Frame: Open





CODE:ZBG 8503 CEA
