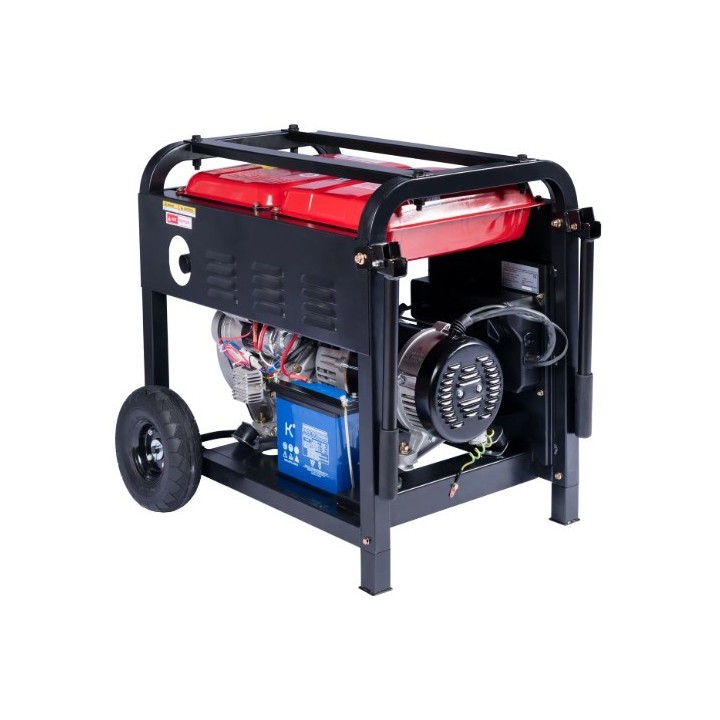

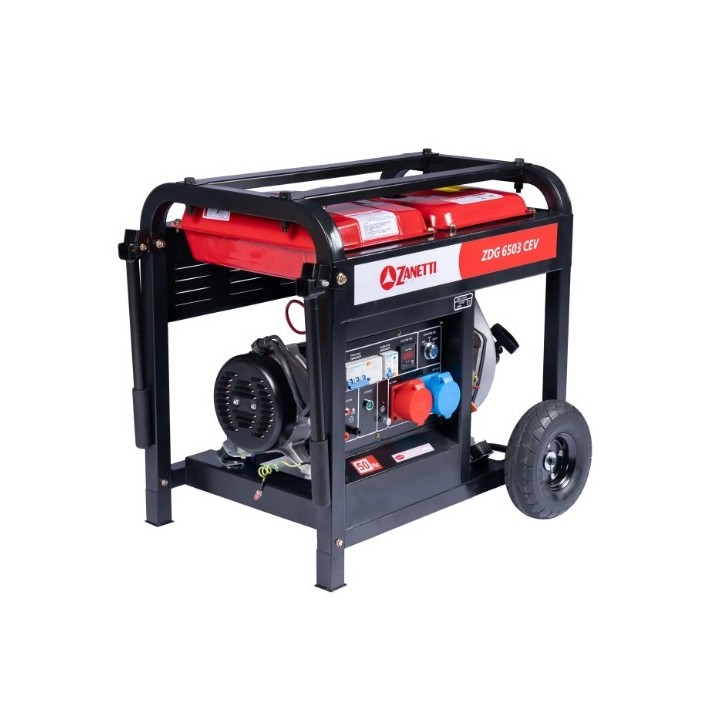

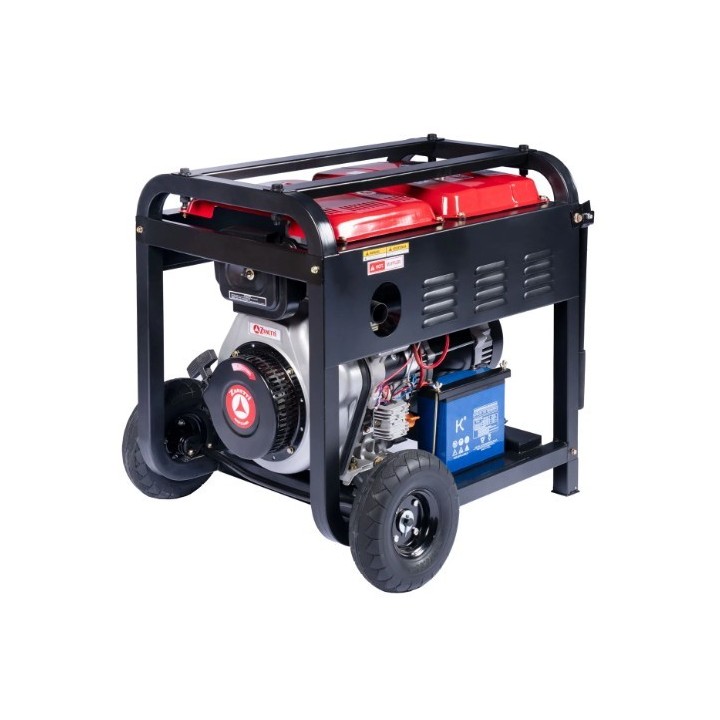

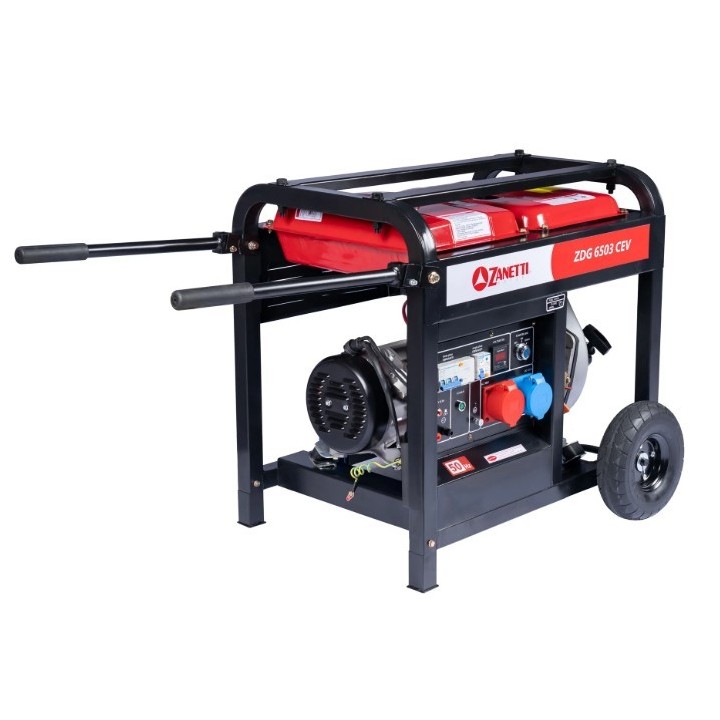

OPEN DIESEL GENERATOR

ZANETTI ZDG 6503 CEV



The Full power diesel generator series,

thanks to a revolutionary technology it has power

with almost identical output in both single-phase and three-phase

difference of three phase generators

standard in which the single-phase power is reduced to 1/3.

All generators in the series are equipped with a regulator

AVR voltage capable of ensuring great stability

to the voltage and frequency values

outgoing and copper alternators.

The generators are set up for

the connection to the ATS intervention control unit,

allowing the automatic start of the

generator in case of interruption

of electricity from the grid.



SPECIFICATIONS

Type: Single Phase/Three Phase

Maximum power (kW max 5 minutes): 5 (400V) / 5 (230V)

Continuous power (kW): 4.5 (400V) / 4.5 (230V)

Voltage (V): 230/400

Frequency (Hz): 50

Continuous output current (V/A): 12/8.3

Tank capacity (Lt): 12.5

Autonomy at 50% (h): 6

Wheel kit: Yes

Battery: Yes

Dry weight (Kg): 105

Dimensions mm (LxWxH): 715x480x620

Socket Type: 1x16A/380V + 1x32A/220V

Engine type: ZDM 86

Engine Displacement (cc): 418

Engine power Kw: 6.3

Engine speed (rpm): 3000

Engine Cooling: Air

Engine Start: Self-recoil - Electric

Voltage Regulator: AVR

IP protection class: IP23M

V.F.R.T. – Voltmeter, Frequency, Run Time, Total Time: Yes

Oil alarm device: No

Automatic control unit ATS pred.: No

Fuel gauge: Yes

Differential circuit breaker: Yes

Frame: Open




CODE:ZDG 6503 CEV
