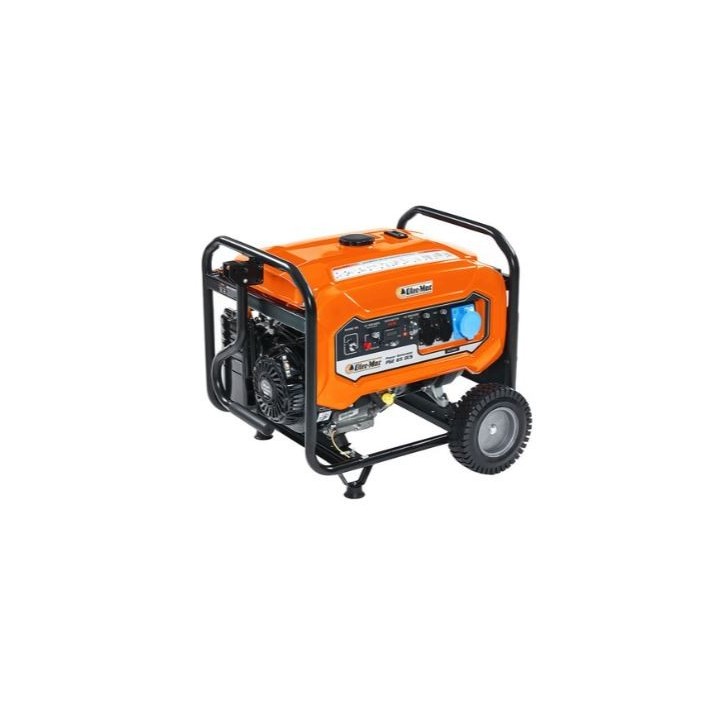

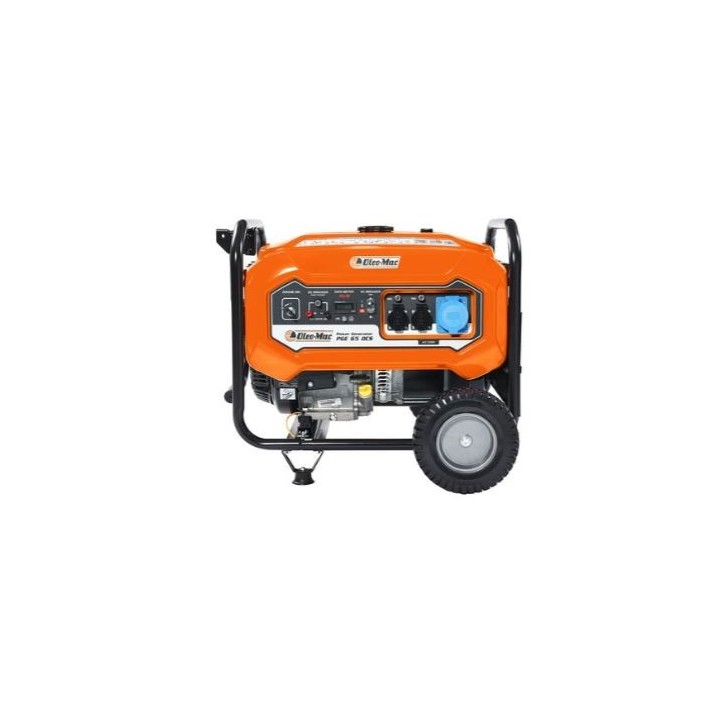

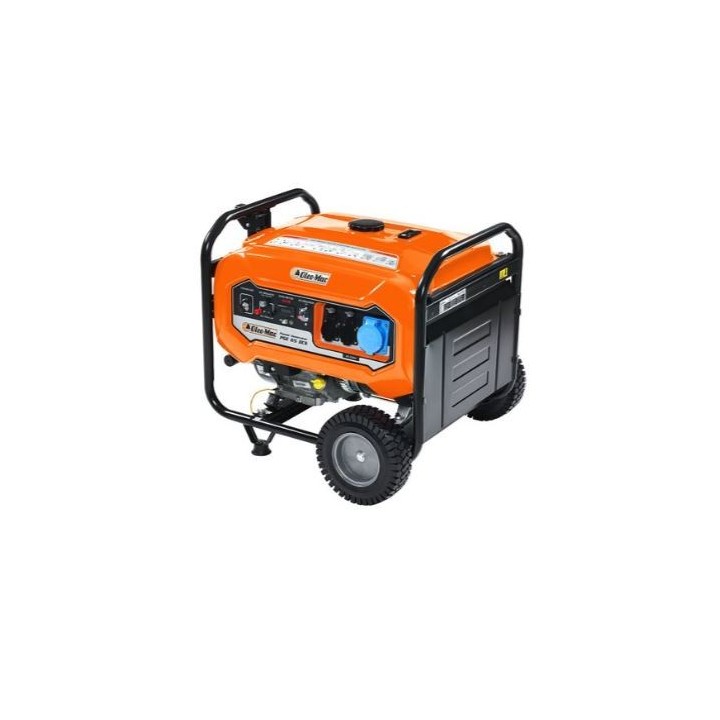

ELECTRIC CURRENT GENERATOR
OLEOMAC
PGE 65E DCS

TECHNICAL DATA
Engine make/model: K 1200 HG OHV
Displacement: 389 cm³
Autonomy: (50% power)9 hours
Effective/maximum power: 5.0 kW/5.5 kW
Fuel tank capacity: 25 L
Oil tank capacity: 1.1 L
Frequency: 850 Hz
Voltage: 230 V
AC Power Quality (THD): G1
Power factor: 1
DC voltage: 12 V
DC current: 8.3 A
Starting: recoil/electric
Noise emissions: < 76 dB(A)
Dimensions (length x width x height): 790x560x585 mm
Weight: 82.5 kg

ORIGINAL CODE: 65019004

EM
