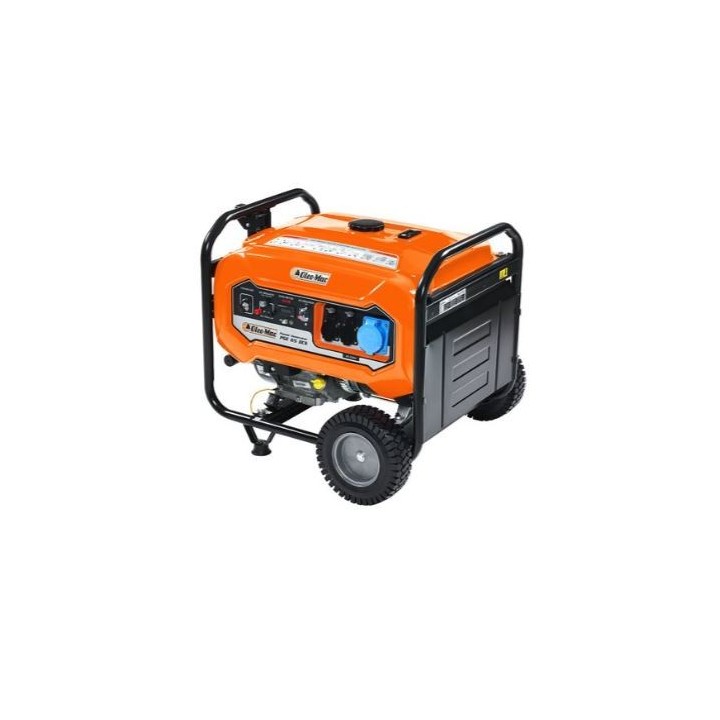

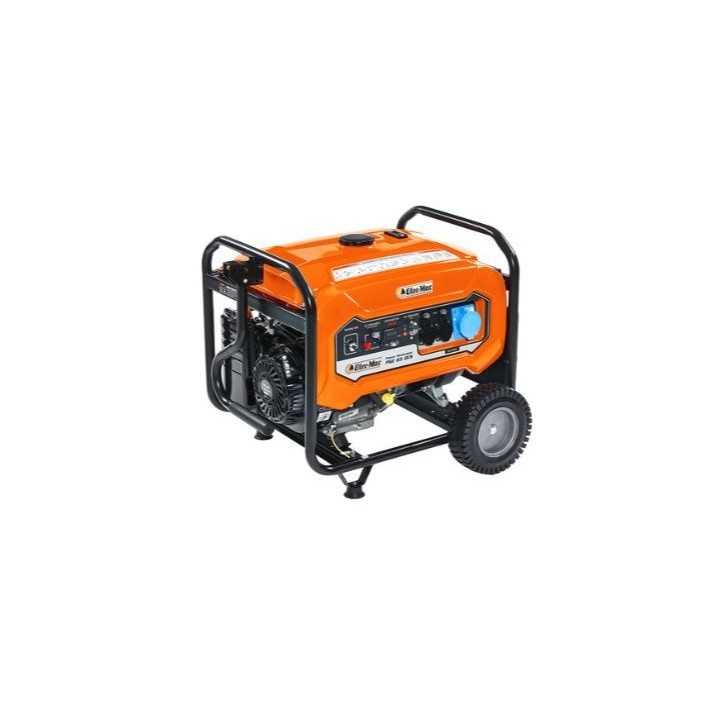

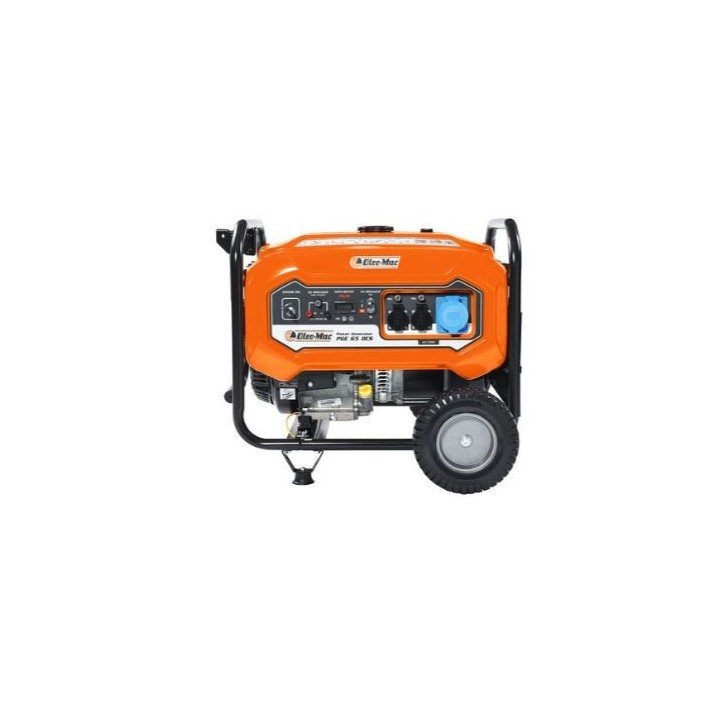

ELECTRIC CURRENT GENERATOR
OLEOMAC
PGE 65 DCS

TECHNICAL DATA
Engine make / model: K 1200 HG OHV
Displacement: 389 cm³
Autonomy: (50% power) 9 hours
Effective/maximum power: 5.0 kW/5.5 kW
Fuel tank capacity: 25 L
Oil tank capacity: 1.1 L
Frequency: 850 Hz
Voltage: 230 V
AC Power Quality: (THD)G1
Power factor: 1
DC voltage: 12 V
DC current: 8.3 A
Starting: manual
Noise emission: < 76 dB(A)
Dimensions (length x width x height): 790x560x585 mm
Weight: 80.5 kg

ORIGINAL CODE: 65019003
