CORDLESS CUTTING MACHINE

STIHL TSA 350

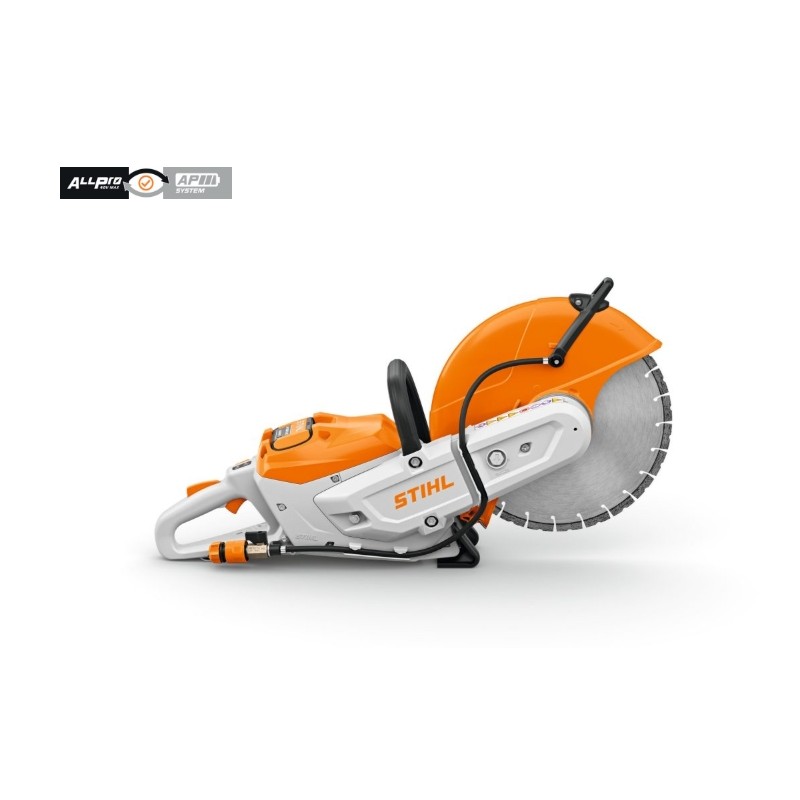

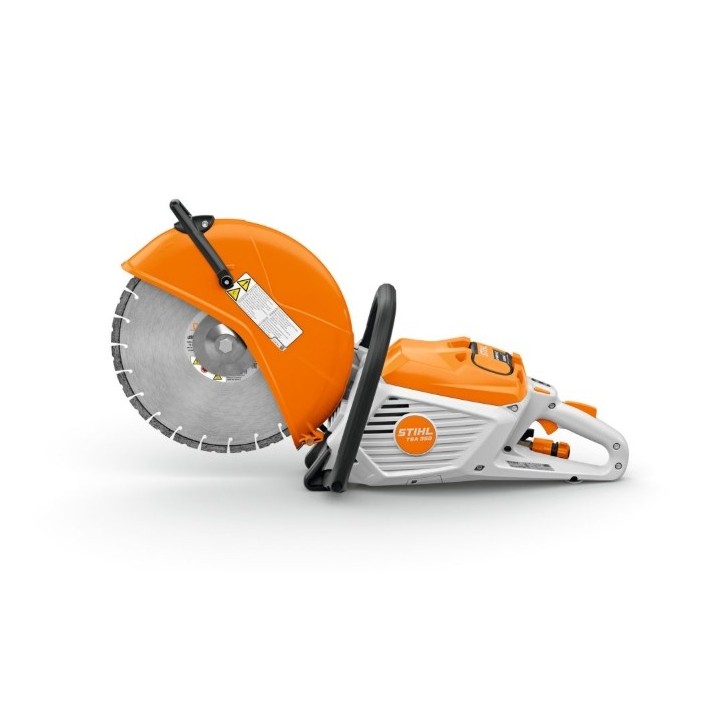

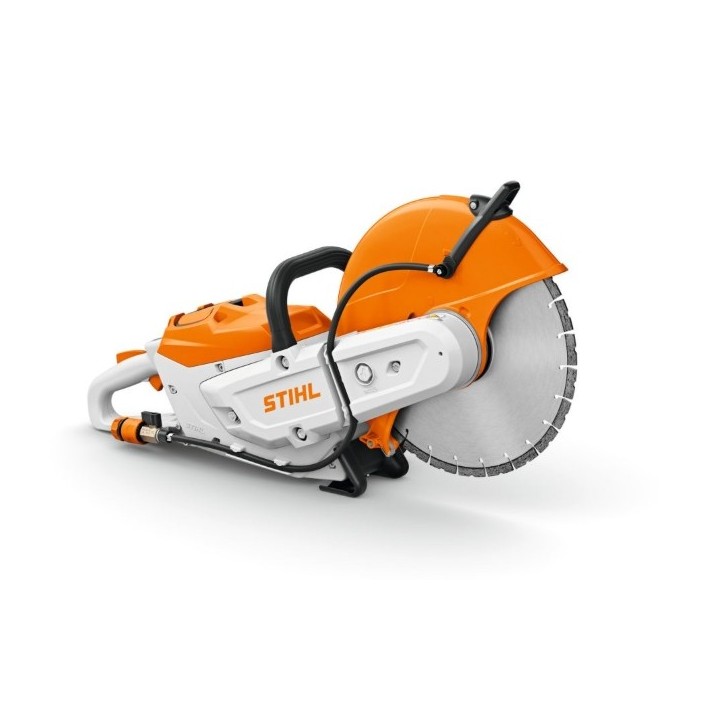

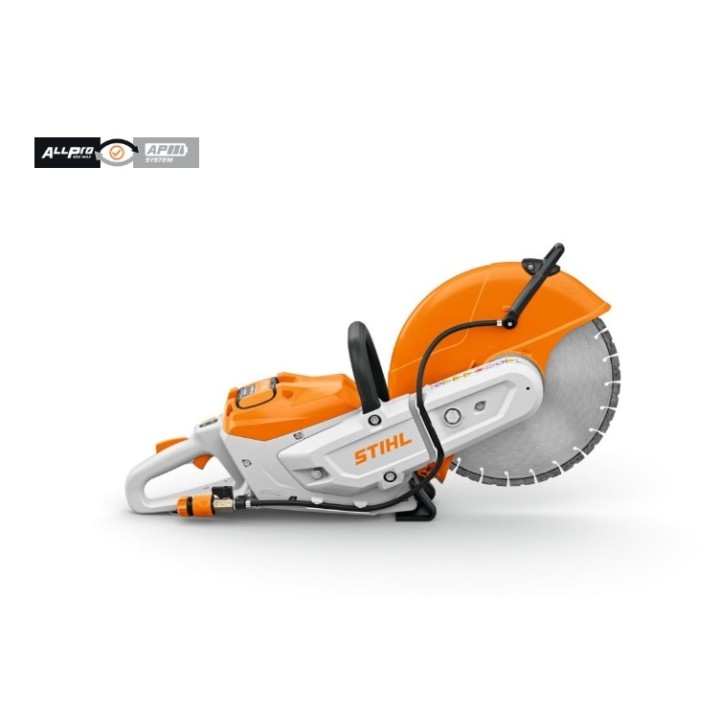

The compact and lightweight STIHL TSA 350 cordless cut-off saw

of the STIHL AP system is versatile and ideal

for gardening and care professionals

of the landscape, as well as in construction above and below ground.

The compact structure allows for precise cuts

with a depth of up to 125 mm. Among the accessories

for miter saws you can find different types

of cutting discs, such as STIHL diamond discs

for various uses. When purchasing discs, make sure

to choose the correct size for your

miter saw and that they are suitable for the materials you want to cut.

To make the most of the performance of the

TSA 350, uses the STIHL AP 500 S battery.



The powerful EC motor runs almost wear-free,

silently and stands out

for smooth operation and low vibration. In addition, the

electronic control system ensures

that the TSA 350 always works with performance

optimal for the entire life of the battery. To protect the

engine from dust and metal particles

and ensure a long life, the battery-powered cutting machine

It is equipped with the STIHL magnetic filter. In case of cuts

frequent on steel, this filter is easy to clean.



The compact structure, the low weight

and the ergonomic design of the handle

allow you to drive the TSA 350

with precision and safety during the

cutting. Another advantage is the brake

stop with energy recovery function:

stops the disk in a few seconds

and allows you to resume immediately

the work. During braking, the energy

kinetic energy is converted into electrical energy

and put it back into the battery. Thank you.

to emission-free operation,

you can use the cordless miter saw

TSA 350 also for indoor use. With the connection

to the standard water, dust is effectively reduced,

allowing you to work in a

efficient with less exposure.



TECHNICAL DATA

Rated voltage: 36 V

Max voltage: 40 V

Power consumption: 3.30 kW

Power: 2.70 kW 1)

Battery system: ALLPRO/AP

Recommended battery: AP 300.0 P

Device weight without battery: 7.3 kg

Cutting disc diameter: 350 mm

Max cutting depth: 125 mm

Minimum operating time of the AP 200 S battery: 4 min

Maximum operating time of AP 200 S battery: 8 min

Minimum operating time of AP 200.0 P battery: 6 min

Maximum operating time of AP 200.0 P battery: 12 min

Minimum operating time of the AP 300 S battery: 8 min

Maximum operating time of AP 300 S battery: 15 min

Minimum operating time of AP 300.0 P battery: 11 min

Maximum operating time of AP 300.0 P battery: 20 min

Minimum operating time of the AP 500 S battery: 11 min

Maximum operating time of AP 500 S battery: 20 min

Length of the device with cutting disc: 78.9 cm



WITHOUT BATTERY

AND BATTERY CHARGER





CODE:TA03-011-6600

TA030116600
