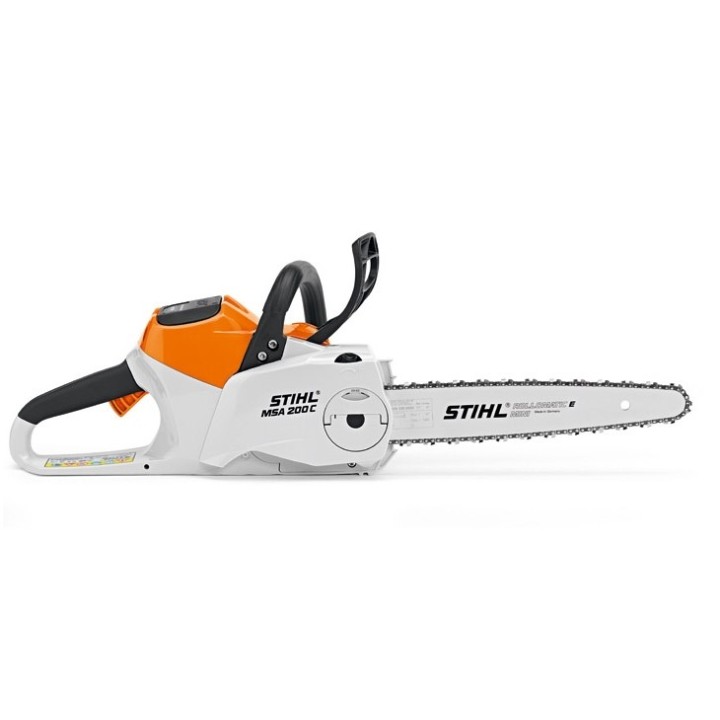

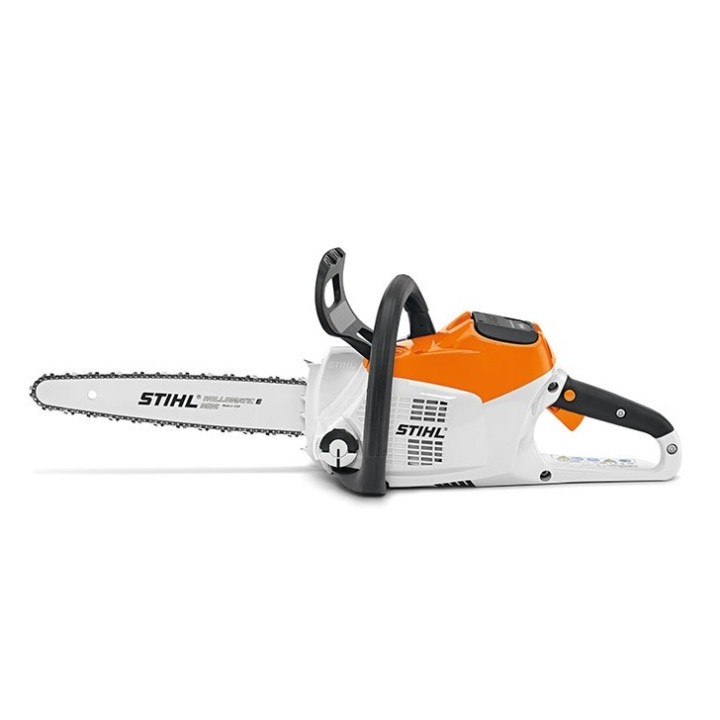

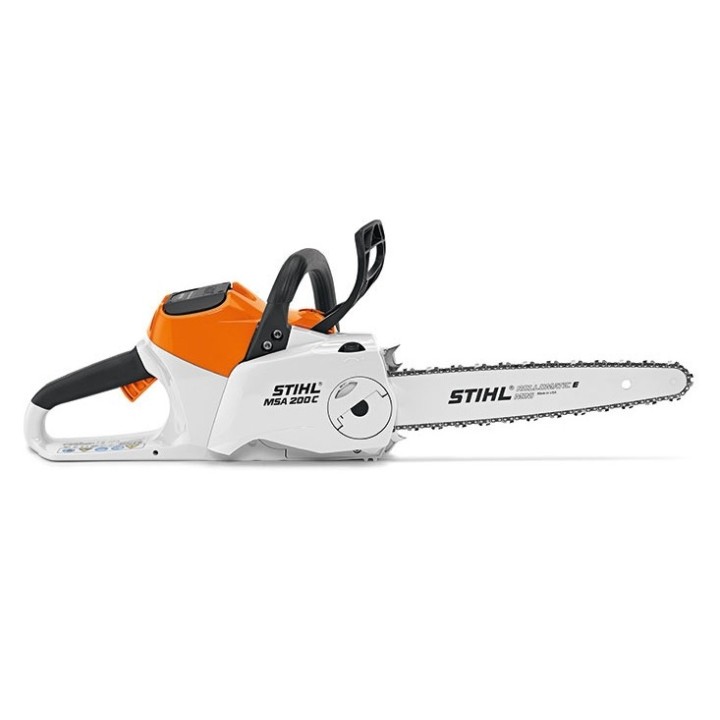

AVAILABLE FROM SPRING 2023 STIHL MSA 200 C-B cordless chain saw WITHOUT BATTERY CHARGER The most powerful cordless chain saw from STIHL. Fast acceleration through high-quality EC motor, usable in rain and humidity. Tough, reliable and durable, no tools required for chain tensioning. 20% increase in cutting performance compared to the previous model MSA 200 C. More than 30 % more cuts per charged battery compared to chains with semi-chisel teeth. Maximum performance when felling small trees TECHNICAL SPECIFICATIONS weight: kg 3.6 cutting length: 35 cm Operating time with AR 3000 L min up to 281 Operating time with AR 2000 L min up to 201 rated voltage V 36 weight without battery kg 2.9 sound pressure level dB(A) 4) 89 sound power level dB(A) 4) 100 vibration value left m/s 5) 4.8 vibration value right m/s 5) 3 6 chain pitch 3/8" P Operating time with AP 200 min up to 42 Operating time with AP 300 S min up to 37 Operating time with AP 300 min up to 35 Operating time with AR 1000 min up to 110 Operating time with AR 2000 min up to 160 Operating time with AR 3000 min up to 200 Battery technology Lithium-Ionen AP-System chain oil tank capacity 209 cm3 Recommended battery AP 300 S rated current A 58. 3 daily dose of vibration 1 right m/s2 0.9 daily exposure time h 0.5 K-factor to 2006/42/EC 2 protection class III daily dose of vibration 1 left m/s2 1.2 FEATURES Soft grip The soft grip ensures optimum grip in all working conditions STIHL (B) quick chain tensioner The STIHL quick chain tensioner makes it very easy to adjust the chain tension without tools and without coming into contact with sharp teeth. Simply loosen the sprocket cover and turn the tensioning wheel until the optimum tension is reached. Metal claws The metal claws secure the chain saw to the wood and ensure precise sawing guidance Tool-free two-handed operation The ergonomic tubular handle and the rear handle with soft elements allow safe and less time-consuming work EC electric motor The electronically controlled EC electric motor operates without carbon brushes, is subject to minimal mechanical wear and convinces with a significantly higher degree of efficiency than conventional electric motors. This means that the energy from the accumulator is translated into maximum performance. STIHL Ematic system Depending on the cutting equipment and type of wood, the STIHL Ematic system reduces chain oil consumption by up to 50% compared to conventional bars without Ematic. This system consists of a STIHL Ematic or Ematic S bar, a STIHL Oilomatic chain and an oil pump with adjustable or reduced flow rate. This ensures that the lubricant reaches exactly where it is needed in a targeted manner and with little loss ORIGINAL CODE: MA03 200 0010 MA032000010 CZ
